1987 Conquest 81-270-7013
Revised TSB 14-01-87 January 11, 1987FUEL (ECI) SYSTEM - Specifications 14-23

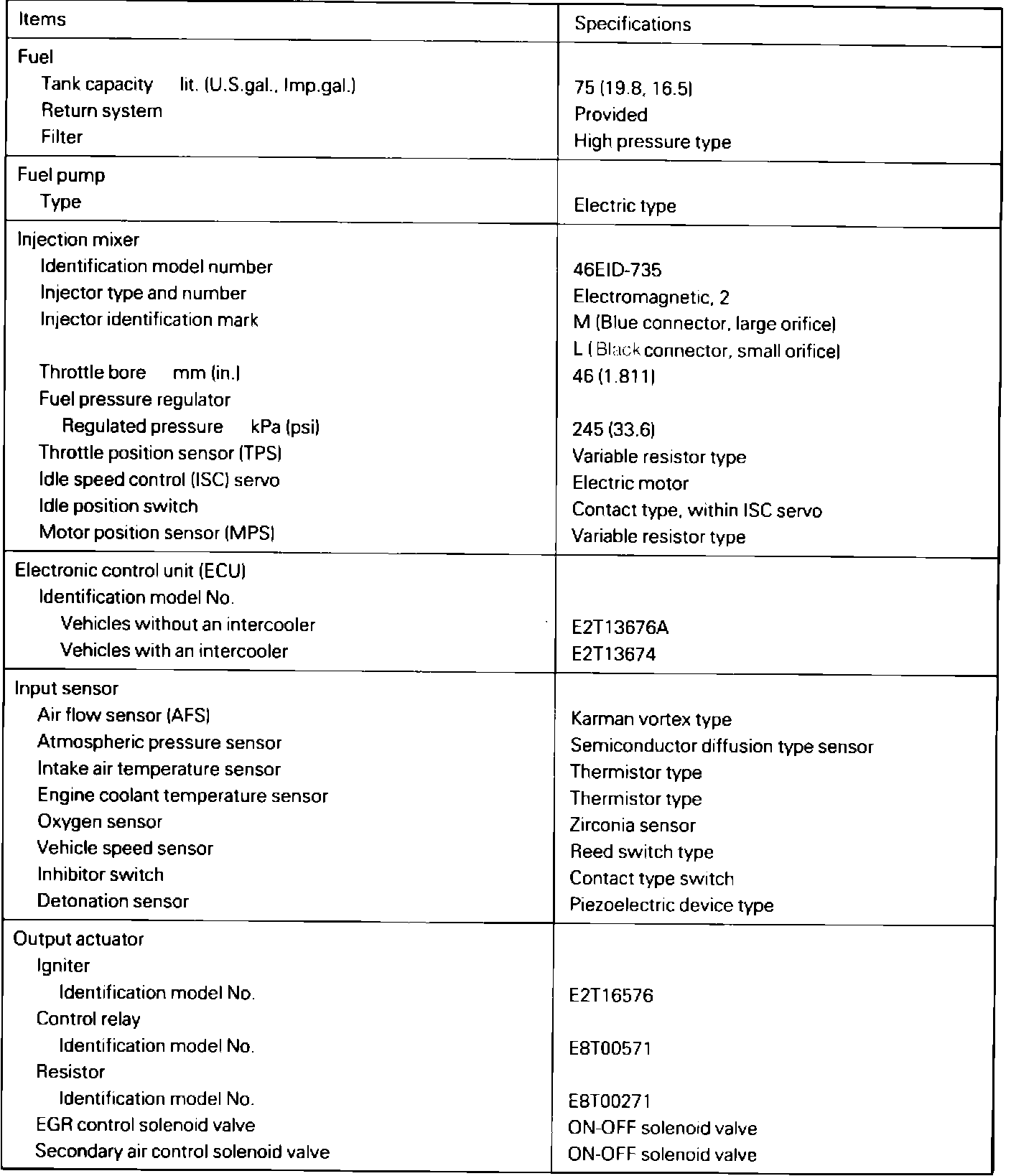

SPECIFICATIONS N14CA-A
GENERAL SPECIFICATIONS
1987 CONQUEST 81-270-7013
Revised TSB 14-01-87
January 11, 1987
FUEL (ECI) SYSTEM - Inspection of ECI System 14-75

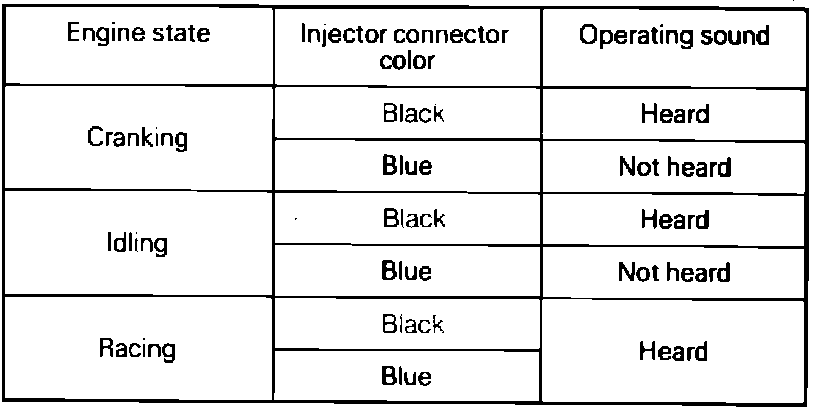

Caution Check carefully. Other injectors may produce sound as they operate even if the injector under checking does not operate.

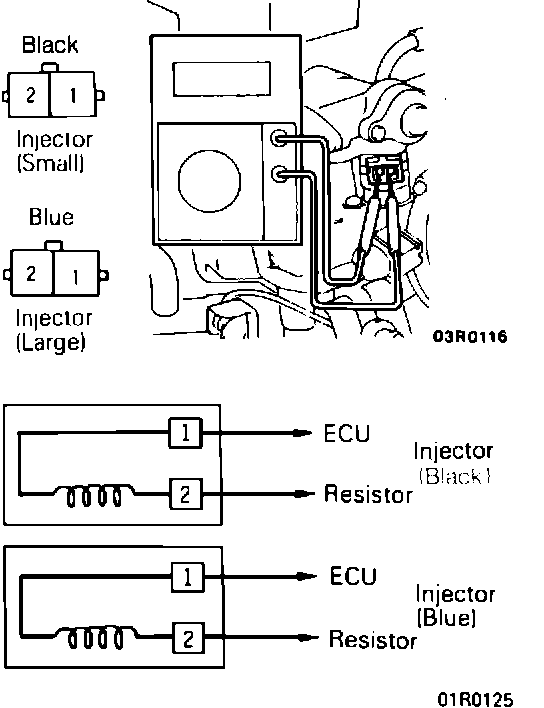

Measurement of Resistance between Terminals
(1) Disconnect the injector connector.
(2) Measure resistance between terminals.
Standard value: 2 - 3 Ohms [at 20~C (68~F)]
(3) Install the injector connector.
Inspection of Injection State
(1) Remove the air intake pipe.
(2) Disconnect the high tension cable from the ignition coil.
Inspection of Injector with Black Connector
(3) Observing through the air inlet of the injector mixer visually check injection state of the injector with black connector when the ignition switch is set to ST position. Judge the injector as normal unless the injection state is very poor.
(4) Turn the ignition switch to OFF and check the injector nozzle for leaks.
1987 CONQUEST 81-270-7013
Revised TSB 14-01-87 January 11, 1987
14-76 FUEL (ECI) SYSTEM - Inspection of ECI System
Inspection of Injector with Blue Connector
(5) Disconnect the injector harness of the blue connector.
(6) Connect the harness connected to the injector having black connector to the injector having blue connector. Caution Connect the harness with adequate slackness so that undue tension will not act on the harness when the engine is cranked.
(7) Observing through the air inlet of the injection mixer, visually check injection state of the injector with blue connector when the ignition switch is set to ST position. Judge the injector as normal unless the injection state is very poor.
(8) Turn the ignition switch to OFF and check the injector nozzle for leaks.
INSPECTION OF ISC MOTOR (DC MOTOR) N14QUAA
(1) Disconnect the ISC motor connector.

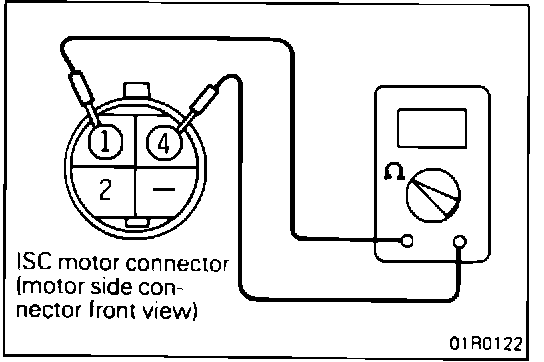

(2) Check continuity of the ISC motor coil.
Measuring terminals Continuity
Conductive
(1) - (4) [5 to 11 Ohms resistance at 20~C (68~F)]
(3) Connect 6V DC (four dry cells) between terminals (1) and (4) of the ISC motor connector and check that ISC servo operates.
(4) If not, replace ISC servo as an assembly.
1987 CONQUEST 81-270-7013
REVISED TSB 14-01-87 January 11, 1987
FUEL (ECI) SYSTEM - Injection Mixer 14-83
SERVICE POINTS OF REASSEMBLY N14NIAA
25. INSTALLATION OF SEAL RING
Make sure that the seal ring does not protrude from the groove.
16. INSTALLATION OF SEAL RING
Install a new seal ring in the mixing body. When fitting the seal ring, make sure that its flat side faces up.
13.12. INSTALLATION OF INJECTORS
(1) Fit a new O-ring and collar to the injector.
(2) Set the injector on the mixing body at correct position and push down firmly with a finger until it is seated.
Identification of injectors
Connector color Position Orifice
Blue Right Large
Black Left Small

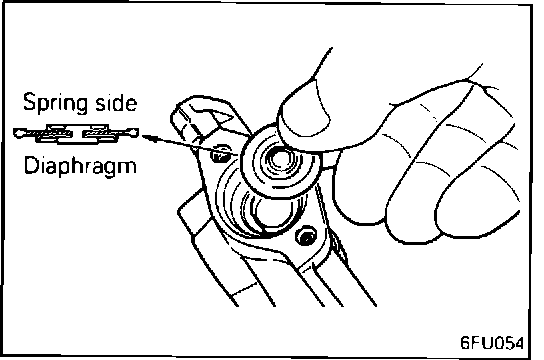

10. INSTALLATION OF DIAPHRAGM
Install the diaphragm in the injector holder in correct direction as shown.
6. INSTALLATION OF FUEL PRESSURE REGULATOR
Fit a new O-ring to the regulator.
