1988 Conquest 81-270-8015

Revised TSB 14-01-87 January 11, 1987

14-22 FUEL (ECI) SYSTEM - Specifications




SPECIFICATIONS N14CA-A

GENERAL SPECIFICATIONS

1988 CONQUEST 81-270-8015
Revised TSB 14-01-87 January 11, 1987

14-68 FUEL (ECI) SYSTEM - ECI System Components

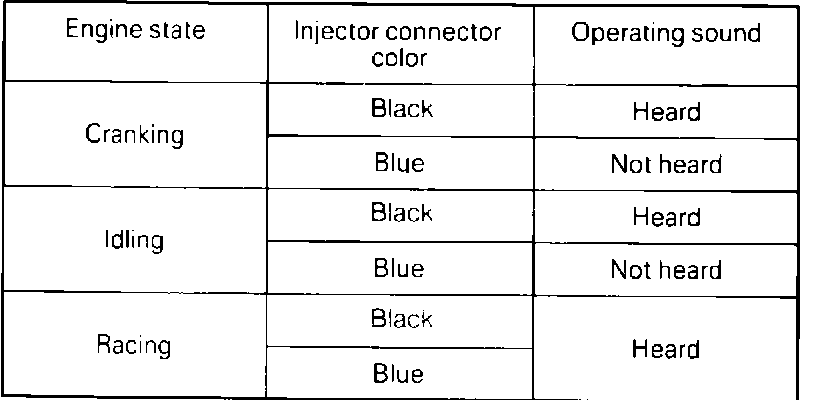

Caution Check carefully. Other injectors may produce sound as they operate even if the injector under checking does not operate.

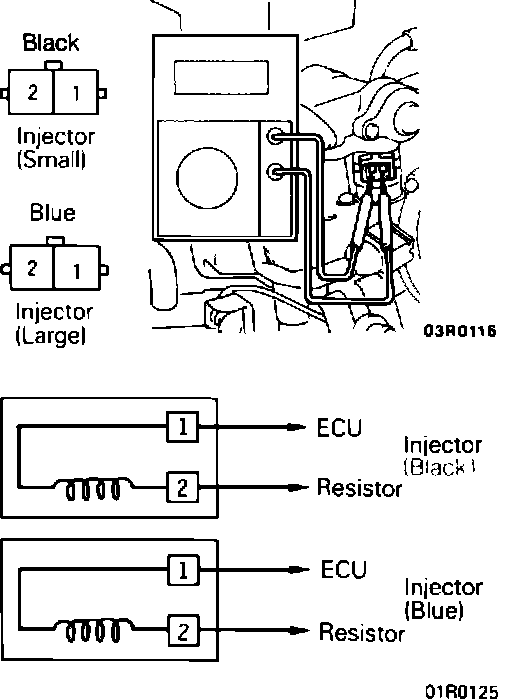

Resistance between Terminals Measurement

(1) Disconnect the injector connector.
(2) Measure resistance between terminals.

Standard value: 2 - 3 Ohms [at 20~C (68~F)]

(3) Install the injector connector.



Injection State Inspection

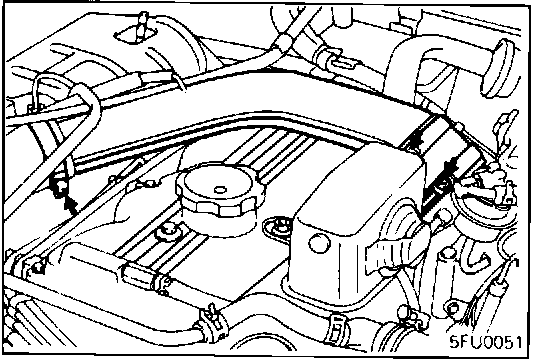

(1) Remove the air intake pipe.
(2) Disconnect the high tension cable from the ignition coil.



Injector with Black Connector Inspection

(3) Observing through the air inlet of the injection mixer. visually check injection state of the injector with black connector when the ignition switch is set to ST position. Judge the injector as normal unless the injection state is very poor.
(4) Turn the ignition switch to OFF and check the injector nozzle for leaks.

1988 CONQUEST 81-270-8015

Revised TSB 14-01-87 January 11, 1987

FUEL (ECI) SYSTEM - ECI System Components 14-69

Injector with Blue Connector Inspection

(5) Disconnect the injector harness of the blue connector.
(6) Connect the harness connected to the injector having black connector to the injector having blue connector. Caution Connect the harness with adequate slackness so that undue tension will not act on the harness when the engine is cranked.




(7) Observing through the air inlet of the injection mixer, visually check injection state of the injector with blue connector when the ignition switch is set to ST position. Judge the injector as normal unless the injection state is very poor.
(8) Turn the ignition switch to OFF and check the injector nozzle for leaks.








ISC MOTOR (DC MOTOR) N14QUAA

INSPECTION

(1) Disconnect the ISC motor connector.
(2) Check continuity of the ISC motor coil.

Measuring terminals Continuity

Conductive
(1) - (4) [5 to 11 Ohms resistance at 20~C (68~F)]

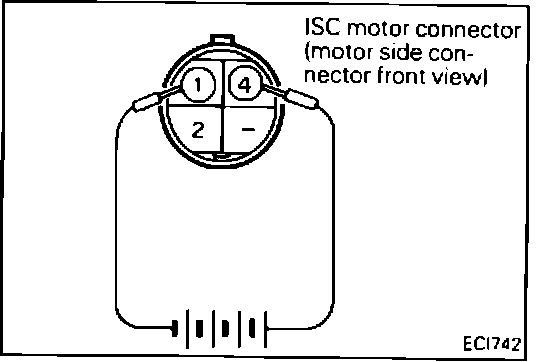

(3) Connect 6V DC between terminals (1) and (4) of the ISC motor connector and check that ISC servo operates.

Caution Apply only a 6V DC or lower voltage. Application of higher voltage could cause locking of the servo gears.

(4) If not, replace ISC servo as an assembly.
1988 CONQUEST 81-270-8015
Revised TSB 14-01-87 January 11, 1987

14-76 FUEL (ECI) SYSTEM - Injection Mixer



SERVICE POINTS OF REASSEMBLY N14N1AA

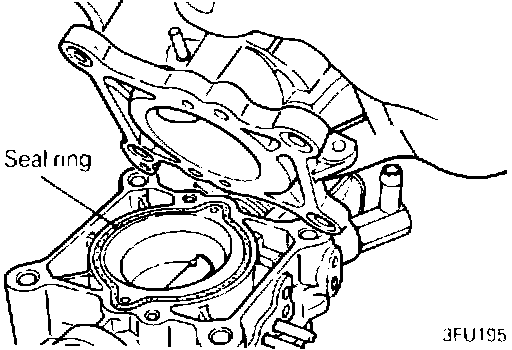

25. INSTALLATION OF SEAL RING

Make sure that the seal ring does not protrude from the groove.

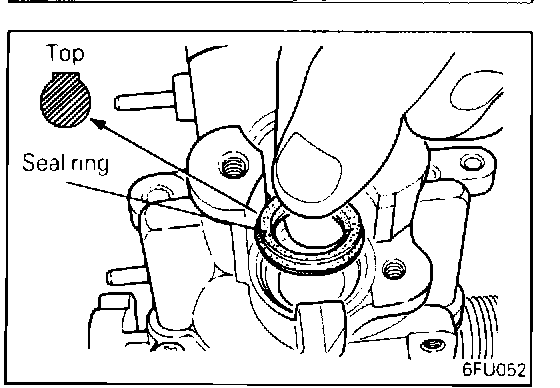

16. INSTALLATION OF SEAL RING

Install a new seal ring in the mixing body. When fitting the seal ring, make sure that its flat side faces up.

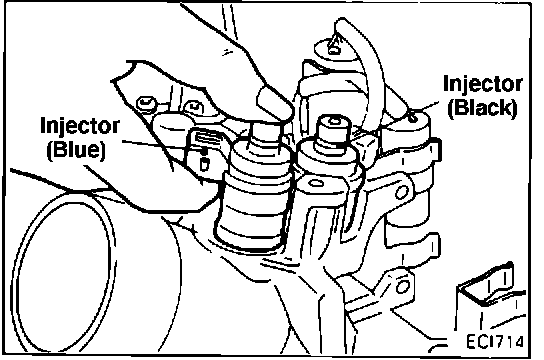

13. 12. INSTALLATION OF INJECTORS

(1) Fit a new O-ring and collar to the injector.
(2) Set the injector on the mixing body at correct position and push down firmly with a finger until it is seated.

Identification of injectors

Connector color Position Orifice

Blue Right Large

Black Left Small

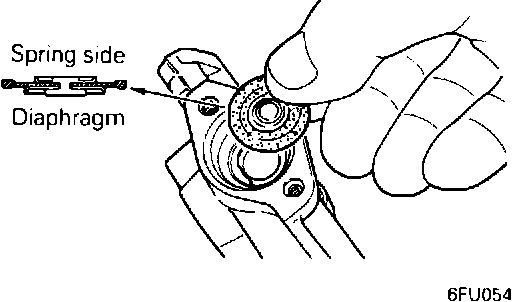

10. INSTALLATION OF DIAPHRAGM

Install the diaphragm in the injector holder in correct direction as shown.



6. INSTALLATION OF FUEL PRESSURE REGULATOR

Fit a new O-ring to the regulator.
