Lower Control Arm to Axle Housing Bolt - Revision

87chrysler14

Models


1987 Conquest


Subject


Lower Control Armto-Axle Housing Attaching Bolt - Revision


Index


SUSPENSION


Date

February 16, 1987

No..


02-02-87 (C3-02)

P-480

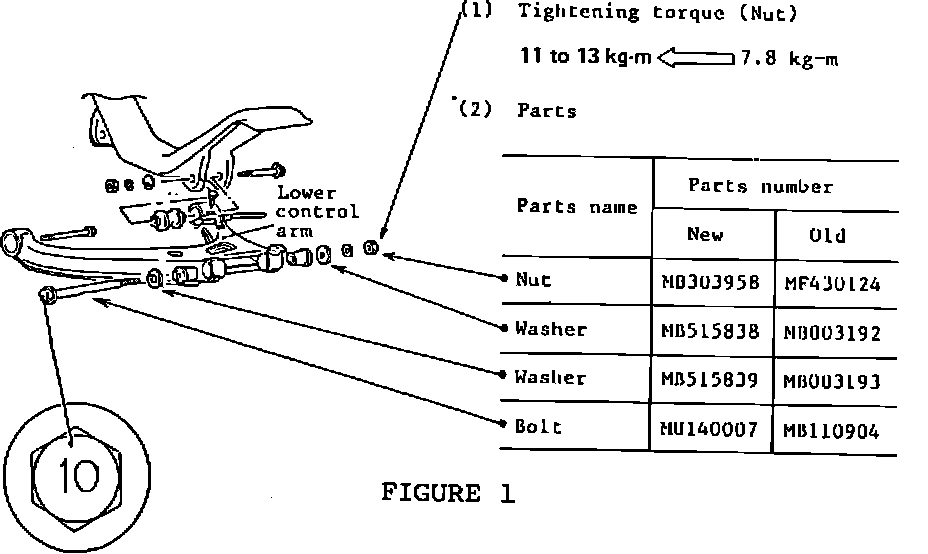

FIGURE 1:

The lower control arm-to-axle housing bolt and nut has been revised for the subject model vehicles. The tightening torque has also been revised from 7.8K-g (56 foot pounds) to 11-13 K-g (80-94 foot pounds).

The new bolt, nut, and washer may be used to replace the old bolt nut and washer. Refer to the chart below for part number information.
POLICY: Information only
