M/T Shift Lever - Buzzes During Acceleration

90chrysler04

Models

1985-88 YDC Body 1989 BS Body


Subject

Manual Transmission Shift Lever Buzz During Acceleration


Index


TRANSMISSION


Date

March 12, 1990


No.

21-08-90

P-608 (C21-01-0)
BODY CODE LEGEND YDC - CONQUEST B5 - CONQUEST

SYMPTOM/CONDITION

Some vehicles equipped with the KM132-N manual transmissions may emit a buzzing noise through the gearshift lever during acceleration.

The noise condition was corrected in production with a new shift lever using a one-piece rubber damper. This change entered transmission production on January, 1989 and affects transmission serial No. KM132-EX0856 and later.

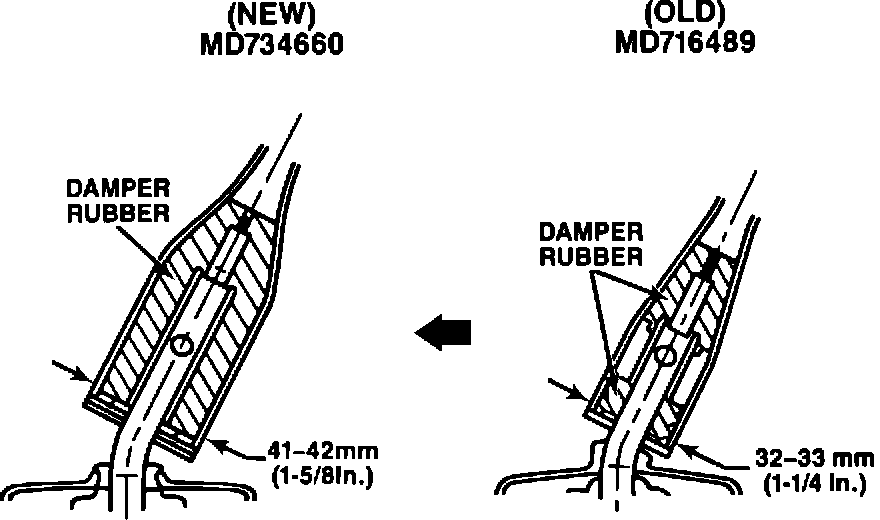

Figure 1:

DIAGNOSIS Road test vehicle to verify that noise complaint is an acceleration shift lever buzz condition. Measure the diameter of the shift lever in the area shown in Figure 1.
If the shift lever diameter is 30 to 32 mm (1-1/4 inches), perform the following repair procedure.

If the shift lever diameter is 41 to 42 mm (1-5/8 inches) the shift lever is not the source of the noise. Inspect the exhaust system and engine mounting system as possible source of the noise condition.

PARTS REQUIRED

1 Lever, Gearshift Assembly PN MD734660

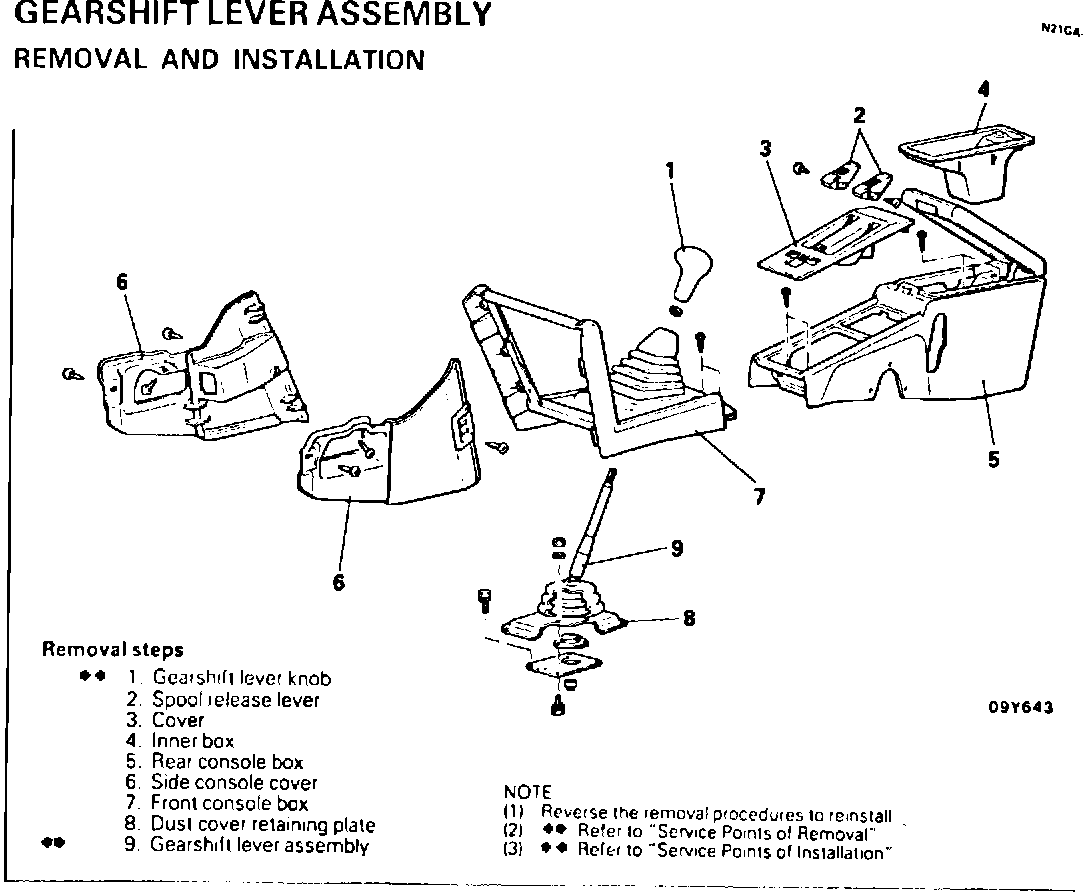

Figure 2:

Figure 3:

REPAIR PROCEDURE:

This repair involves the removal of the gearshift lever assembly and installation of the new gearshift lever assembly.

1. Disconnect the battery negative cable.
2. Remove the gearshift lever assembly and install the new gearshift lever assembly PN MD734660 per the procedure outlined in the Conquest Import Service Manual, Figure 2 and Figure 3.
3. Reconnect the negative battery cable.


POLICY: Reimbursable within the provisions of the warranty.


TIME ALLOWANCE:
Labor Operation No. 21-75-17-92 0.6 Hrs.


FAILURE CODE: 2X Vibration Or Chatter
