Ram Raider

1. Remove seat belts and replace them with new parts.

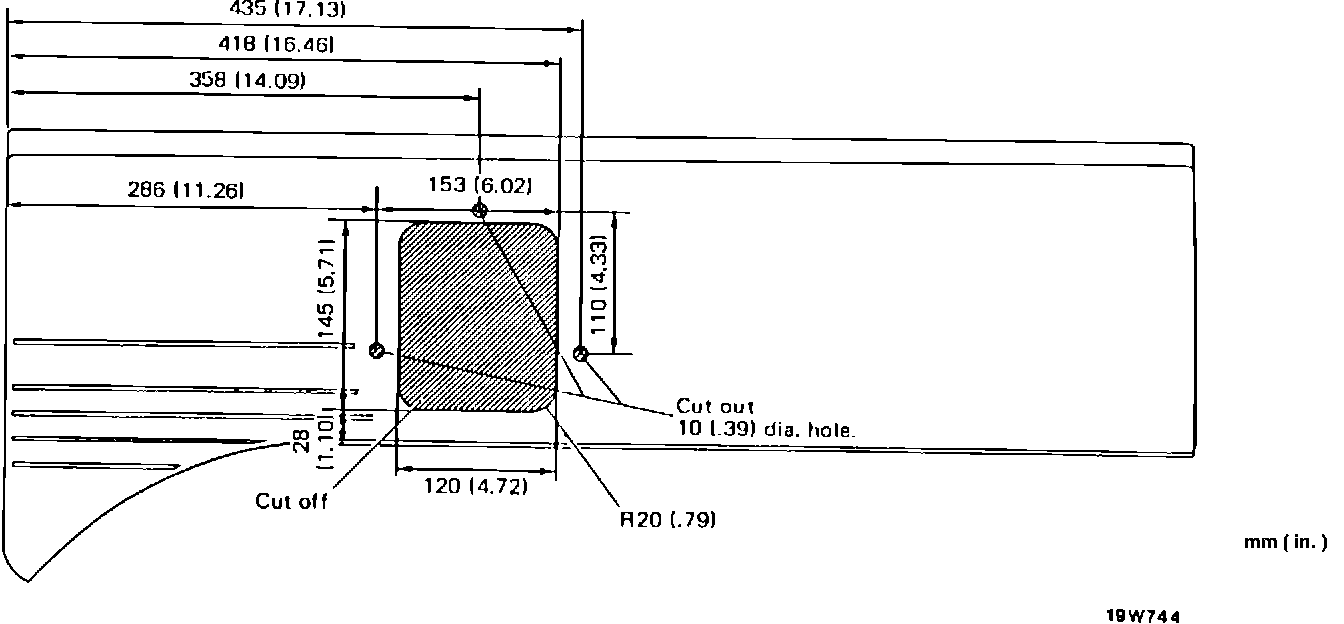

2. Remove quarter trim, rework it as shown in the following illustration and install.



3. Rework cargo floor mat as shown in the following illustration.

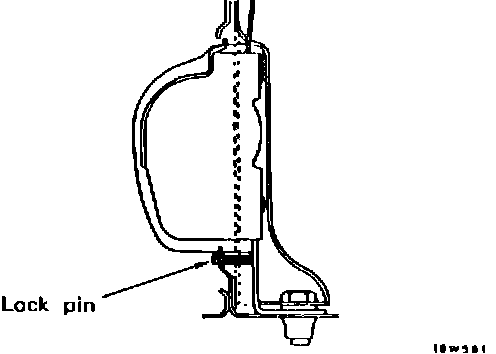

4. Fix retractor with its lock pin inserted in hole provided in body and tighten to specified torque.

Specified torque: 35-55 N-m (26-40 ft.lbs.)


5. Remove plug from upper quarter trim, install sash guide arid tighten to specified torque.

Specified torque: 35-55 N-m (26-40 ft.lbs.)



6. Locate seat belt as shown in the illustration and tighten to specified torque.

Specified torque: 35-55 N-m (26-40 ft.lbs.)
