Seat Belt Extender - Types/Identification

87chrysler4

Models


1983-1987 MMC Manufactured Vehicles (Imported For Chrysler) Except Sapporo/Challenger Models


Subject


Seat Belt Extender


Index


BODY


Date

September 15, 1986

No.


23-08-86

P-3235
The front seat belt extender is intended for use only when the current seat belt is not long enough to fit around an occupant. It must be removed and stored when not required by that occupant.

Incorrect use of the seat belt extender, or any other extender which is not specified, may result in serious injury.


Four types of extenders have been released to be used in the combinations shown in the chart on page 2.

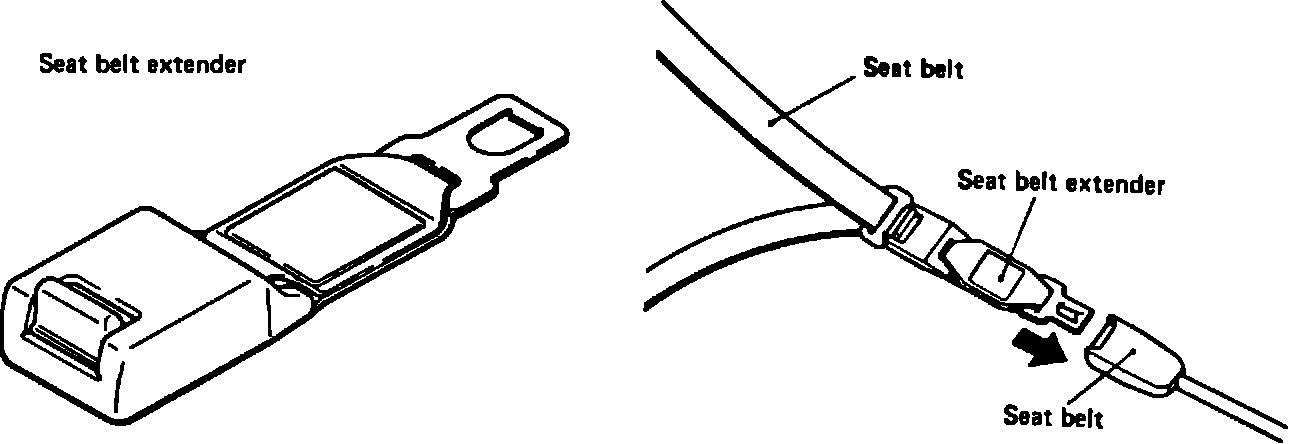

FIGURE 1:

Install the seat belt extenders as shown in Figure 1.
PARTS REQUIRED

Part No. Type

Seat Belt Extender MB544776 A*
Seat Belt Extender MB544777 B*
Seat Belt Extender MB544778 C*
Seat Belt Extender MB544779 D*

*See chart on page 2


POLICY: Information only
Model Year

Vehicle Model 1983 1984 1985 1986 1987

Conquest Type A Type A Type B (Not provided
due to adoption
of automatic

seat belt)

Colt Type A Type A Type A Type B Type B

Raider Type B

Ram 50, Power Ram 50 Type A Type A Type A Type B Type B

Colt Vista Type D Type D Type C Type C
