Service Manual - Revisions
87chrysler5Models
1987 "YDC" (Conquest)
Subject
Speed Control, Rear Hatch & Electrical - Service Manual Revisions
Index
MISCELLANEOUS
Date
July 20, 1987
No.
26-04-87 (C4-26)
P-2566
This bulletin is issued to revise the Speed Control, Electrical, and Rear Hatch Sections of the 1987 Conquest Service Manuals, Volumes 1 and 2.
Using the chart provided; staple, tape, or glue the revised pages in the manual.
VEHICLES WITH AN INTERCOOLER:
VEHICLES WITHOUT AN INTERCOOLER:
Service Manual Publication No. Revised Pages
Conquest Volume 2 81-270-7013A 8-4 and 8-223
Using the chart provided, make the following changes (noted with an *) on the existing pages of the service manuals.
Service Manual Publication No. Changed Pages
Conquest Volume 1 81-270-7013 14-91* and 23-25**
* On page 14-91, under the note at the bottom of the page, change the nameplate color under TYPE B: from blue to blue or yellow.
** On page 23-25, indicate on the rear hatch glass removal steps, that items 13 and 14 are non-reusable parts. This means that for reassembly, new parts must be used.
POLICY: Information only
Revised TSB 26-04-87 July 20, 1987

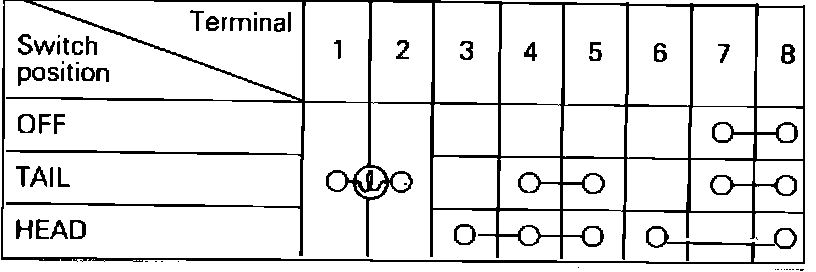

LIGHTING SWITCH:

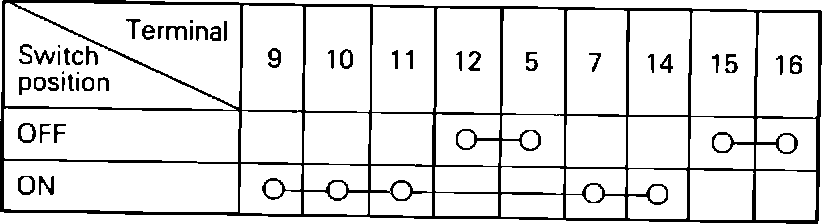

HAZARD SWITCH:
INSPECTION

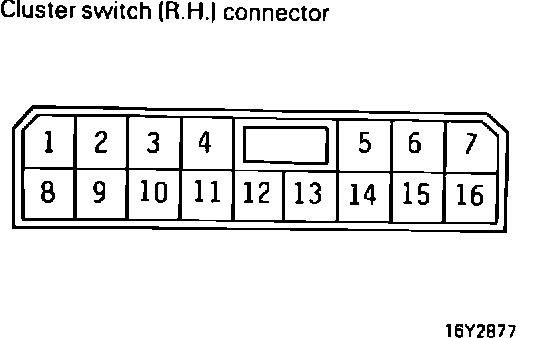

(1) Disconnect the wiring connector from the cluster switch, and connect an ohmmeter to the switch side connector.
(2) Operate the switch and check the continuity between the terminals.
NOTE O-O indicates that there is continuity between the terminals.
To: All Chrysler Zone Offices Chrysler Motors Dealers
Subject: Replacement Operator's Manuals
Models: 1987 Chrysler Conquest Passenger Cars
For Information Only
On the reverse side is a copy of a letter being sent to owners of early built
1987 model year Chrysler Conquests equipped with an optional sunroof.
Instructions for the operation and care of the sunroof were inadvertently omitted from the original Operator's Manual and affected owners are being provided with updated manuals that include sunroof instructions.
OPERATING AND MAINTENANCE INSTRUCTIONS FOR OPTIONAL SUNROOF 1987 CHRYSLER CONQUEST CARS
Dear Chrysler Conquest Owner:
Our records show that you have purchased a 1987 Chrysler Conquest equipped with the optional sunroof.
The Operator's Manual that was provided with your Conquest may not contain instructions for the operation and care of the sunroof. Therefore, we have enclosed an updated manual that does contain the necessary instructions -- page 72 of the manual.
Please replace your current manual with this updated version.
We hope that you have not been inconvenienced by the omission of the sunroof instructions and trust that this action will help ensure your continuing satisfaction with our product.
