MPI-Troubleshooting

MPI-Troubleshooting 31

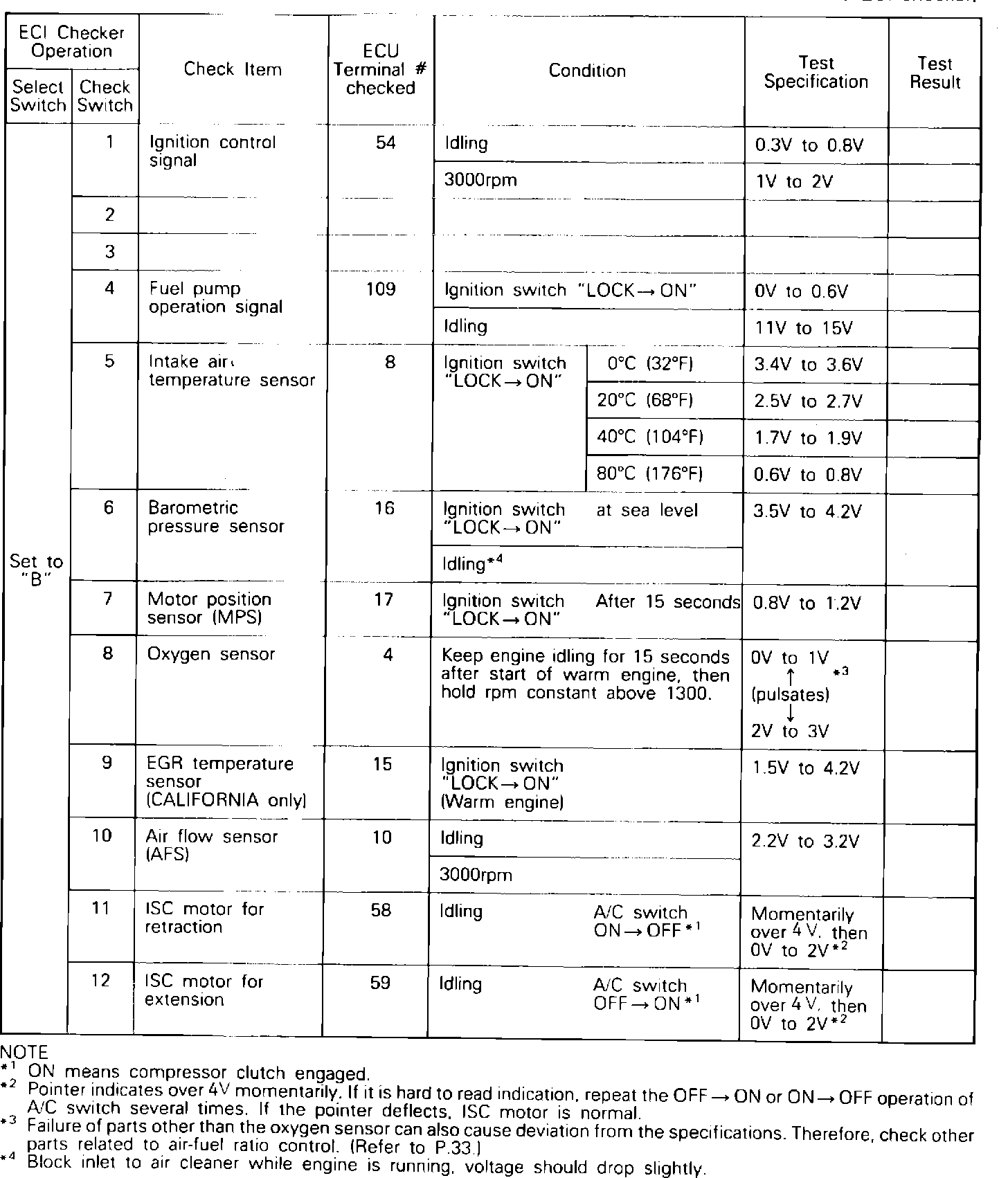

CHECK PROCEDURE CHART (Use ECI Harness Connector F - MD998480) STEP 1 (Connect white color connectors with labeled "CHECKER" of ECI harness connector F to ECI checker)
Publication #81-699-9010 Revised TSB 26-04-88 September 6, 1988

66 ISC servo

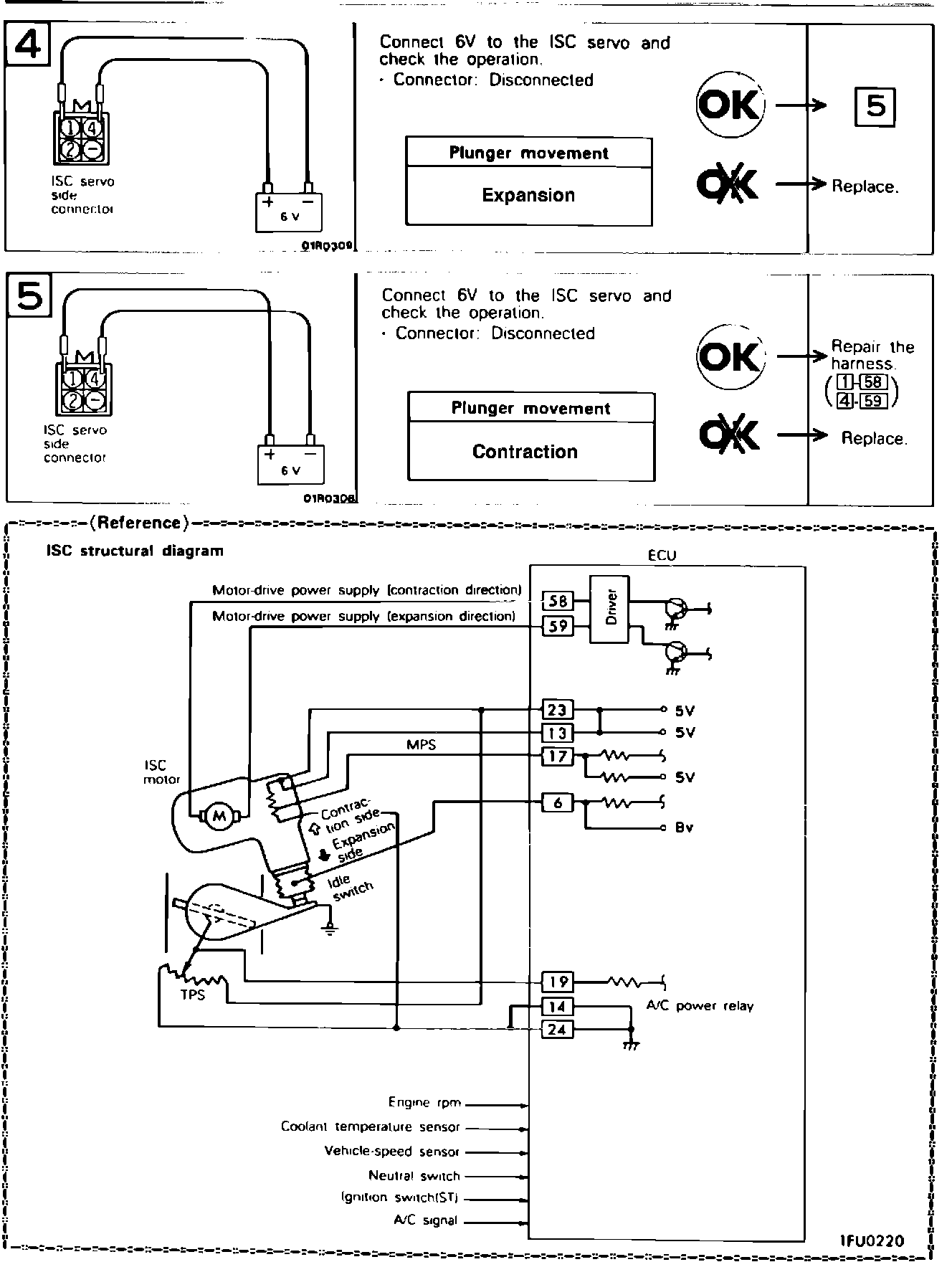

ISC SERVO TEST PROCEDURES
Publication #81-699-8010 Revised TSB 26-04-88 September 6, 1988
ISC Servo 67
Publication #81-699-3010 Revised TSB 26-04-88 September 6, 1988
