Blower Motor: Service and Repair

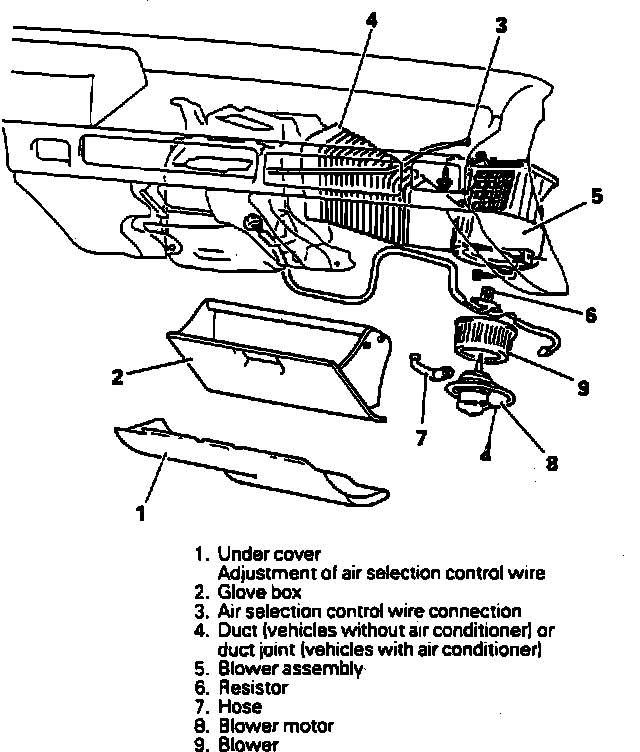

Fig. 13 Blower Motor Replacement:

1. Disconnect battery ground cable.
2. Remove instrument panel under cover, then the glove box.
3. Disconnect blower motor electrical connector.
4. Remove blower motor attaching screws, then the blower motor.
5. Reverse procedure to install.
