Colt

1. Remove rear seat.

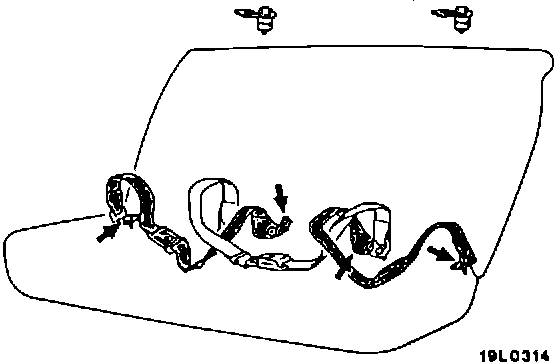

2. Leave center belts (white belts in the illustration) of rear seat belts as they are and replace L.H. and R.H. side seat belts (black belts in the illustration).

3. Remove the following trims.

3-door hatch back model ^ Rear pillar trim ^Quarter trim


Sedan ^ Rear pillar trim

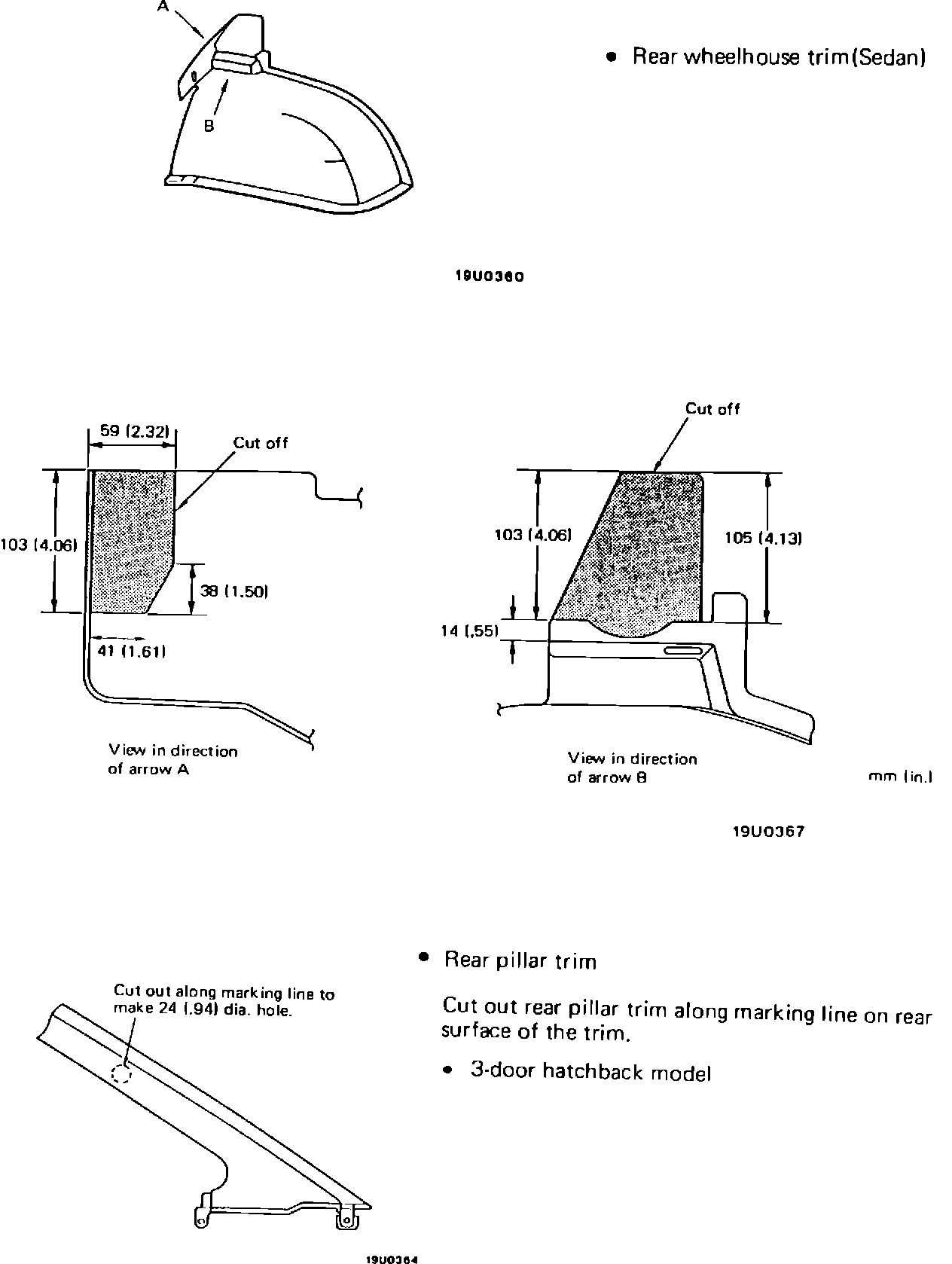

^ Rear wheelhouse trim

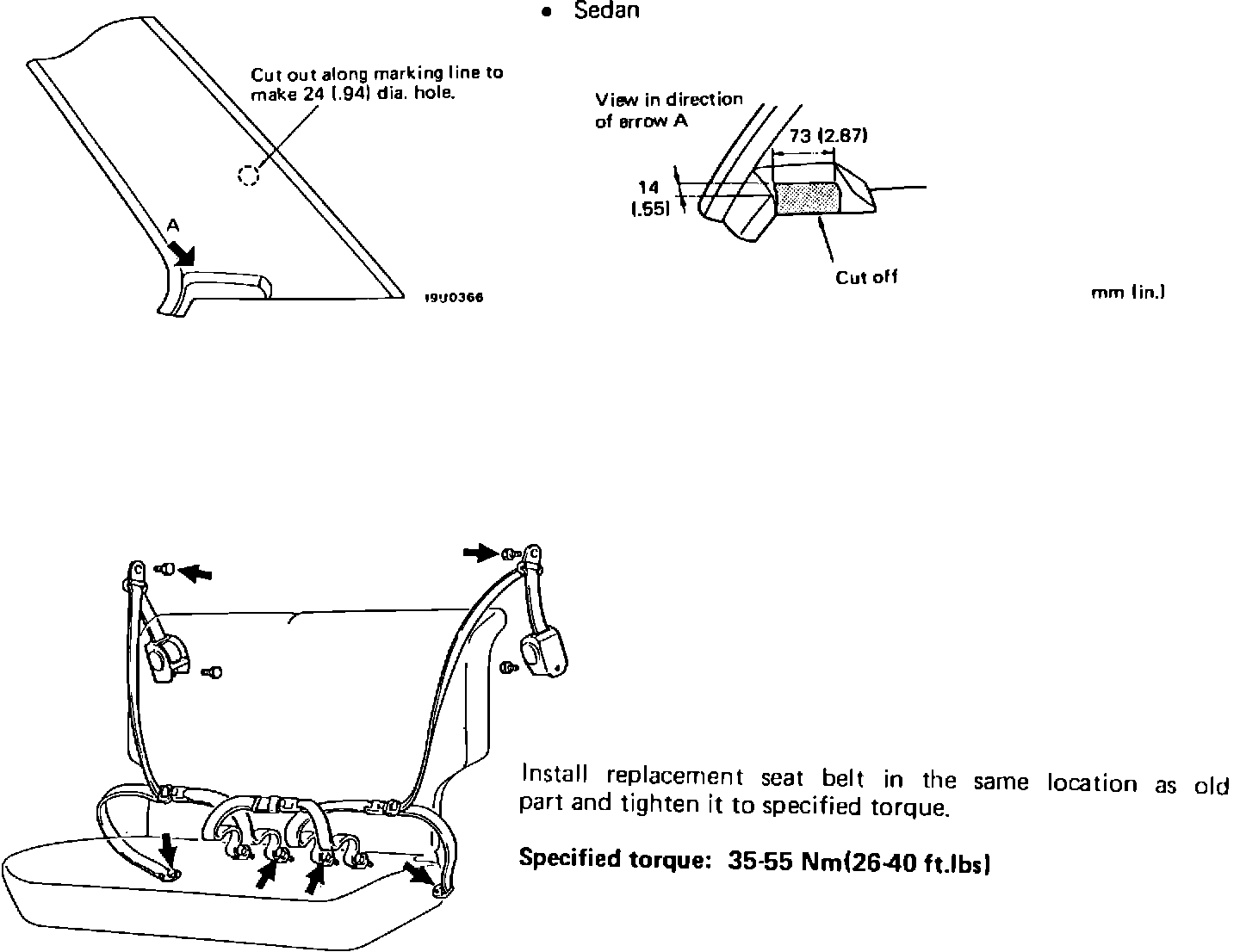

4. Insert retractor lock pin of replacement seat belt positively in hole provided in body. Then tighten bolts to specified torque to install retractor.

Specified torque: 35-55 N-m (26-40 ft.lbs.)

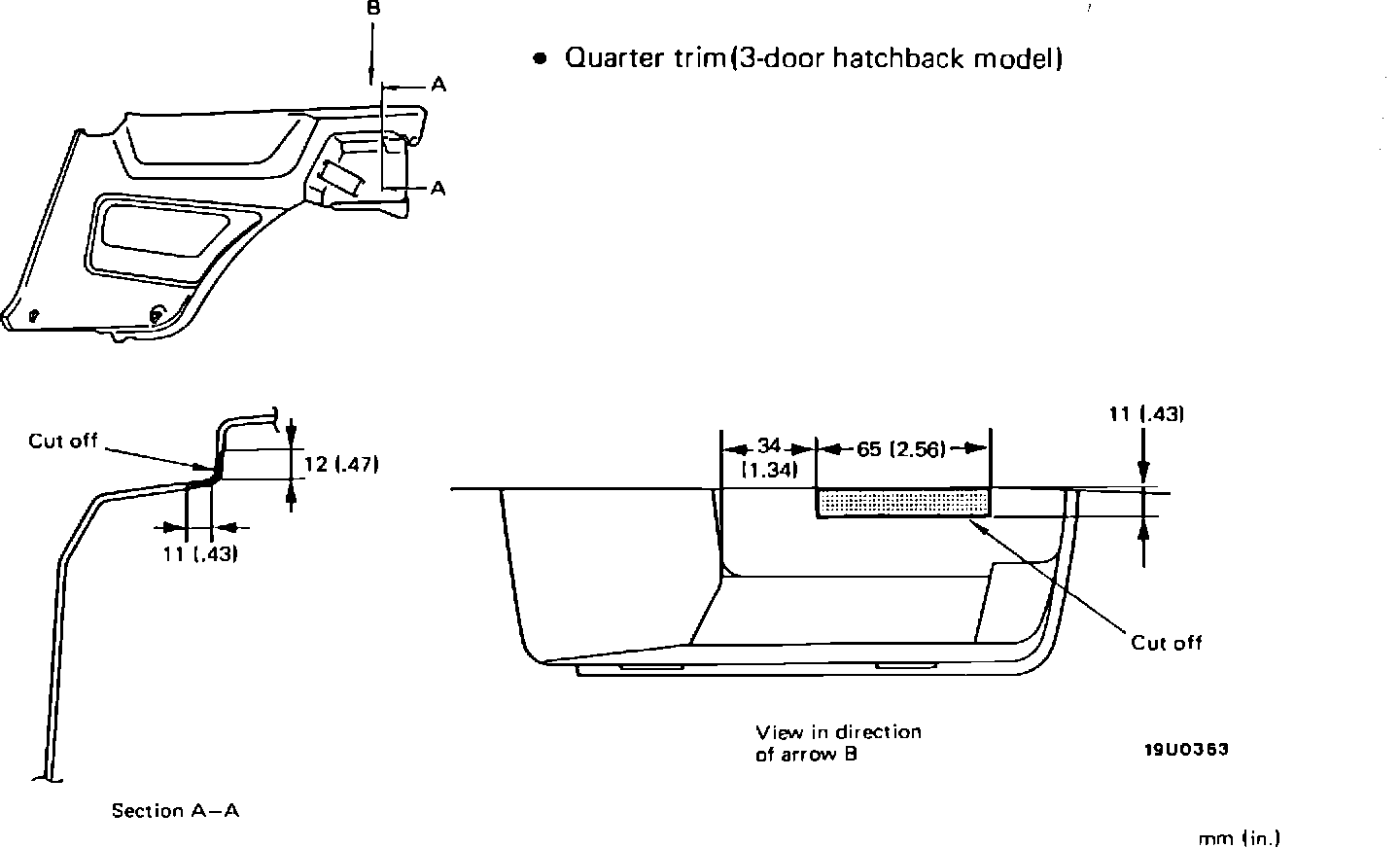

5. Remove quarter trim, rework it as shown in the following illustration and install.
