Accessory Delay Module

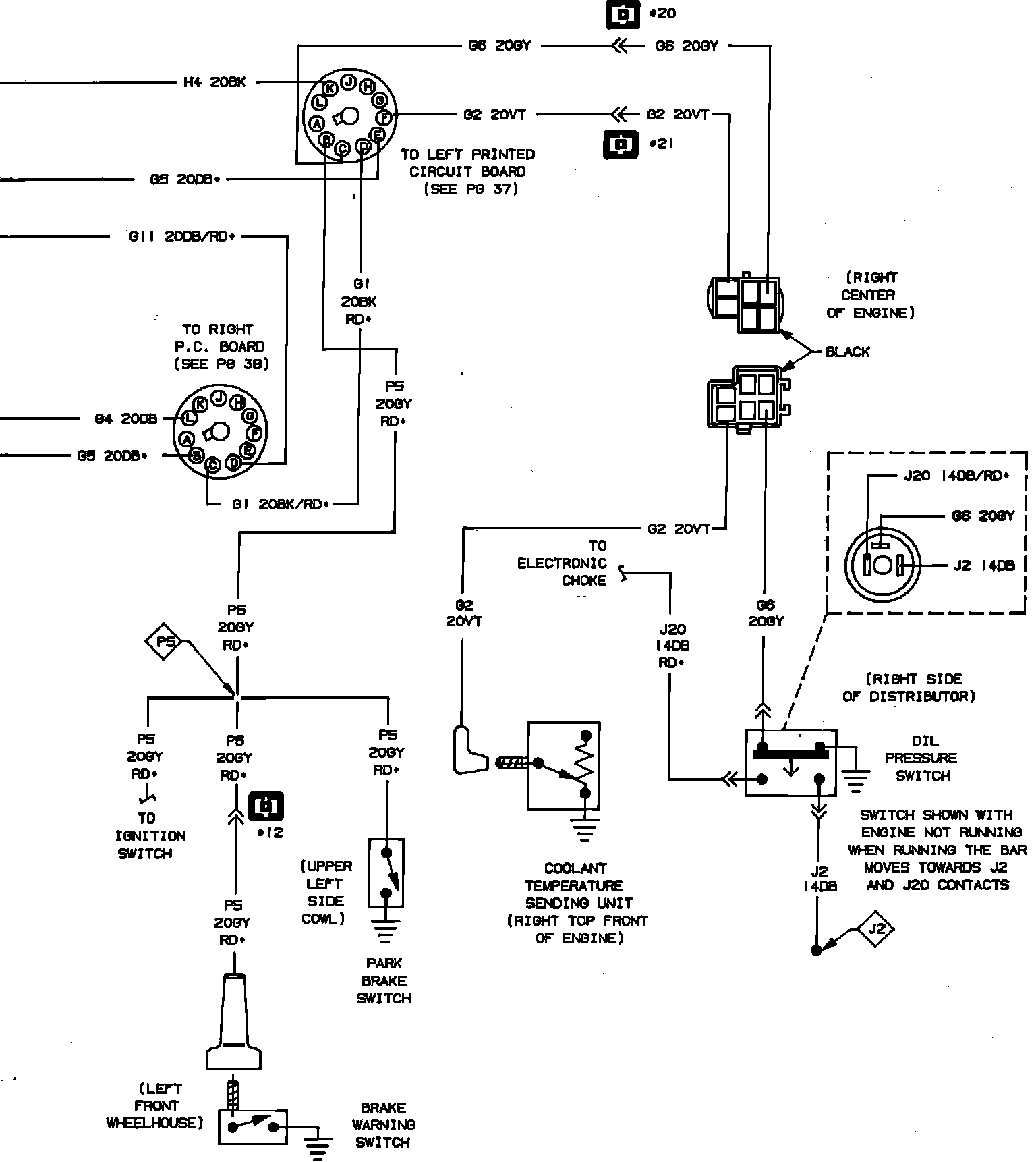

Fig. 11 Brake Switch, Fuel Tank, Oil Pressure Switch, Seatbelt & Temperature Warning System Wiring Circuit (Part 1 of 2):

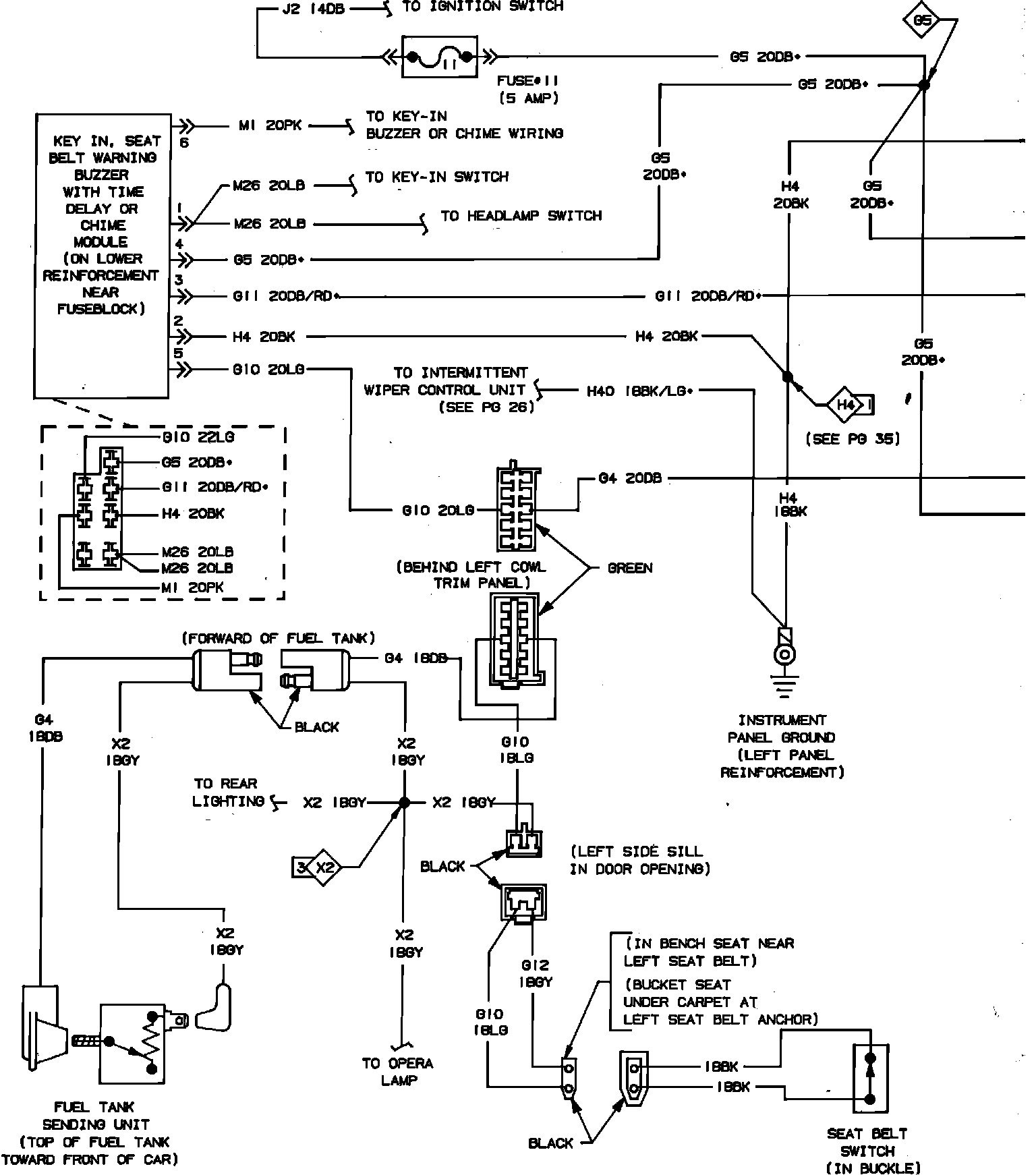

Fig. 11 Brake Switch, Fuel Tank, Oil Pressure Switch, Seatbelt & Temperature Warning System Wiring Circuit (Part 2 of 2):
