Home >> Chrysler >> 1987 >> Fifth Avenue V8-318 5.2L VIN P 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> With 2 Barrel Carburetor >> Part 2 of 2

Part 2 of 2

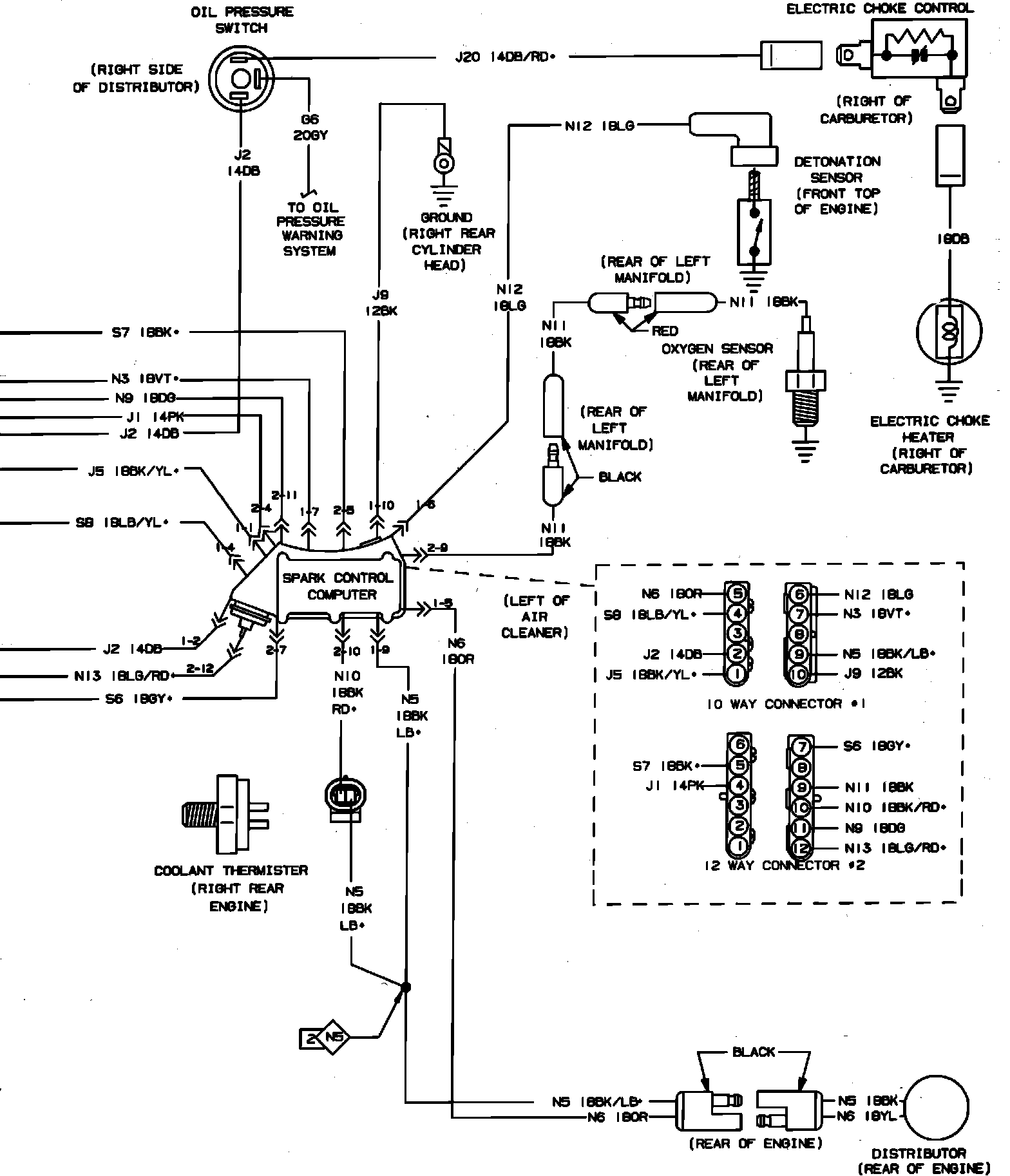

Fig. 24 Ignition System Wiring Circuit (Part 2 of 2). 2 Barrel Carburetor:
