Without Intermittent Wiper System
Without Intermittent Wiper System

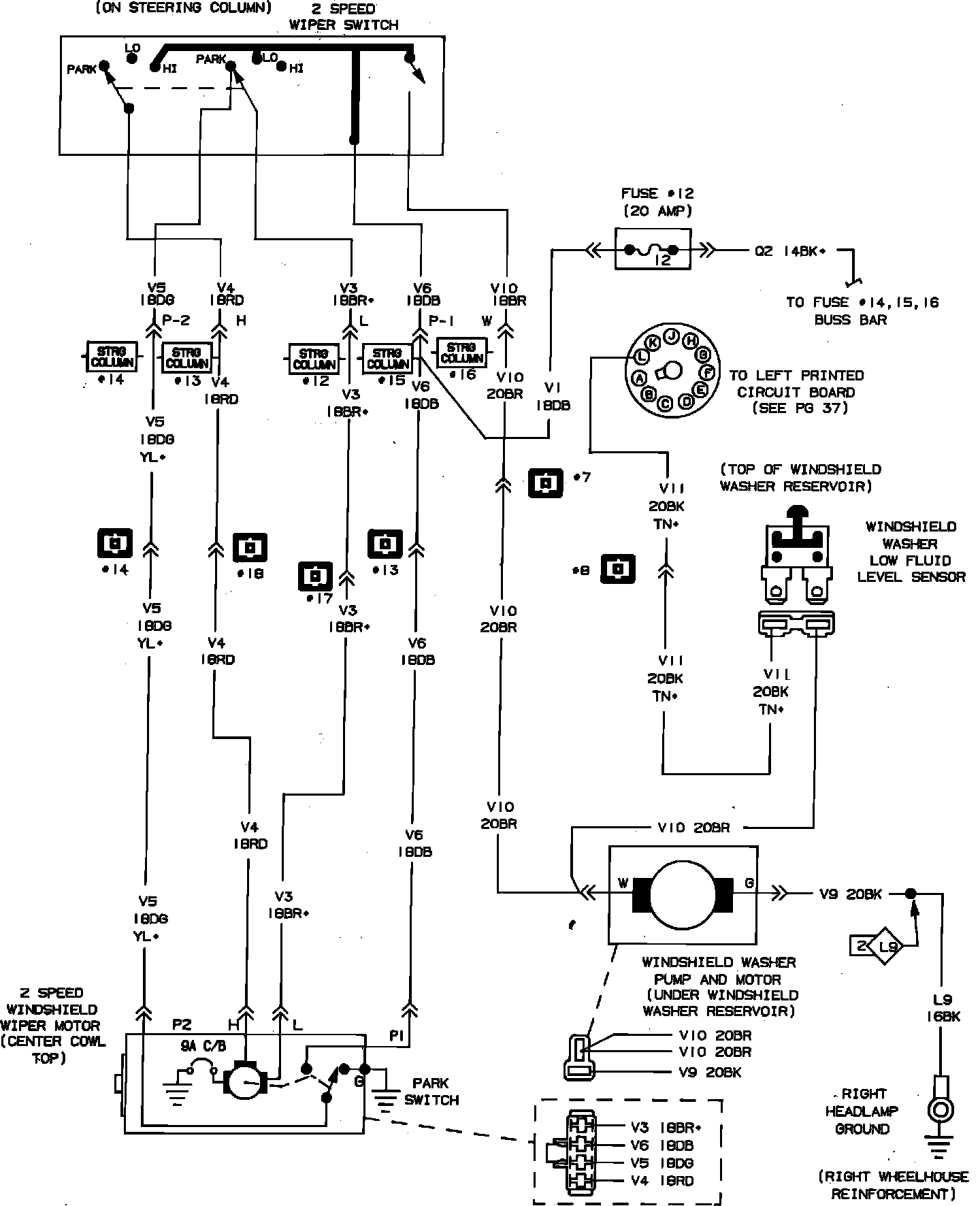

Fig. 42 Windshield Wiper Wiring Circuit. Less Intermittent:
