Cooling System
Cooling System

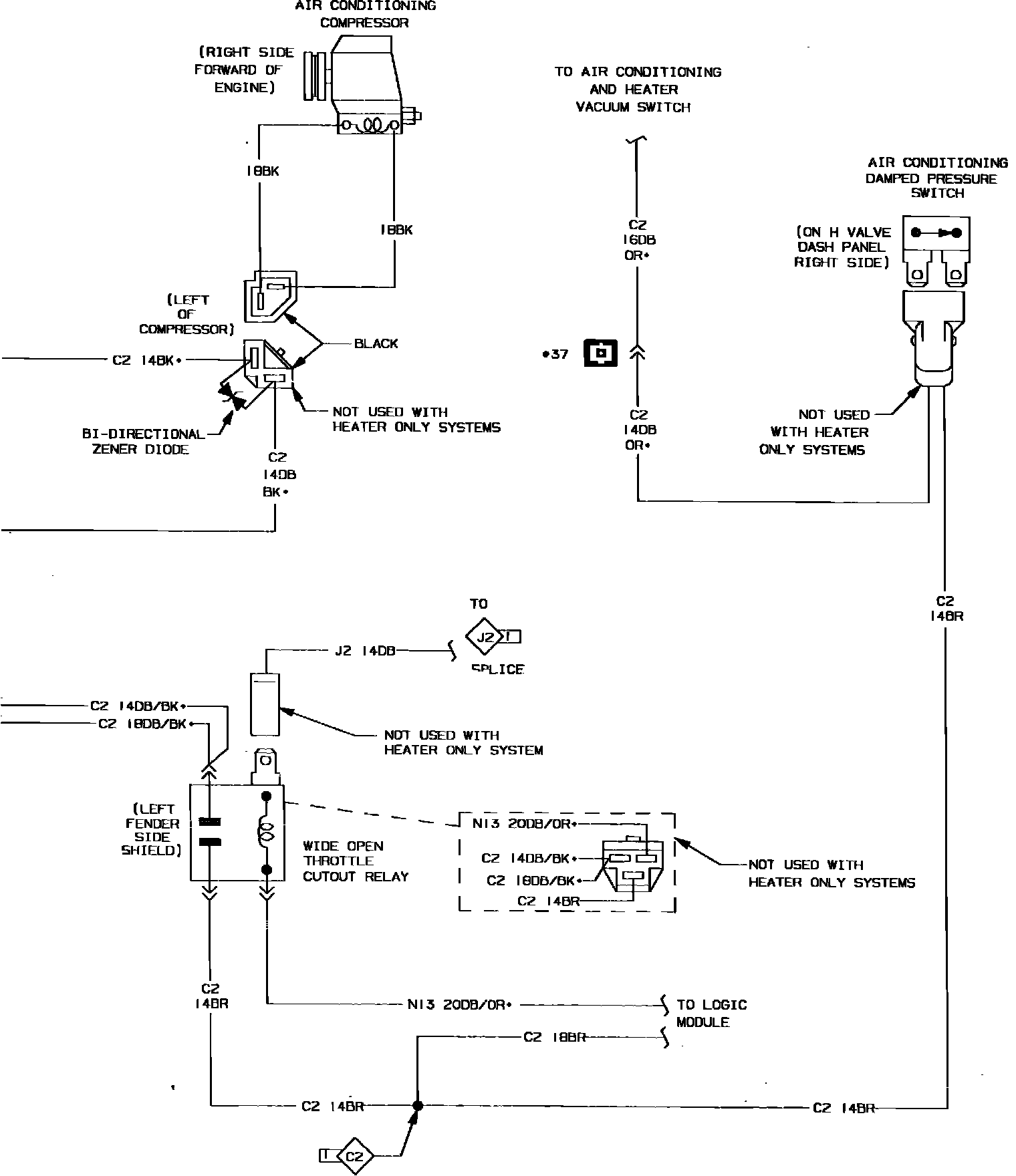

Air Conditioning & Heater System Wiring Circuit. (Part 1 of 2):

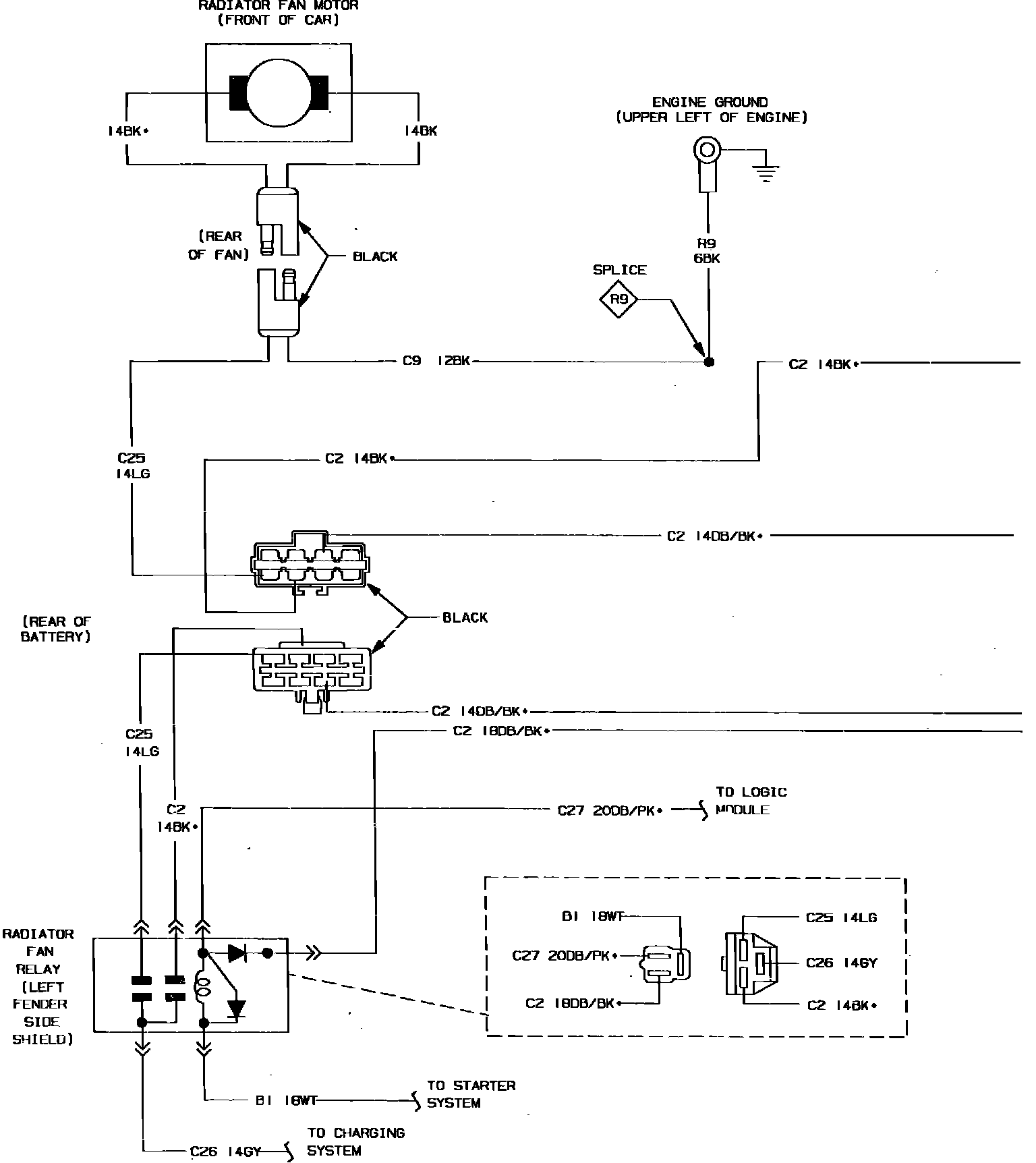

Air Conditioning & Heater System Wiring Circuit. (Part 2 of 2):
