Electrical Diagrams

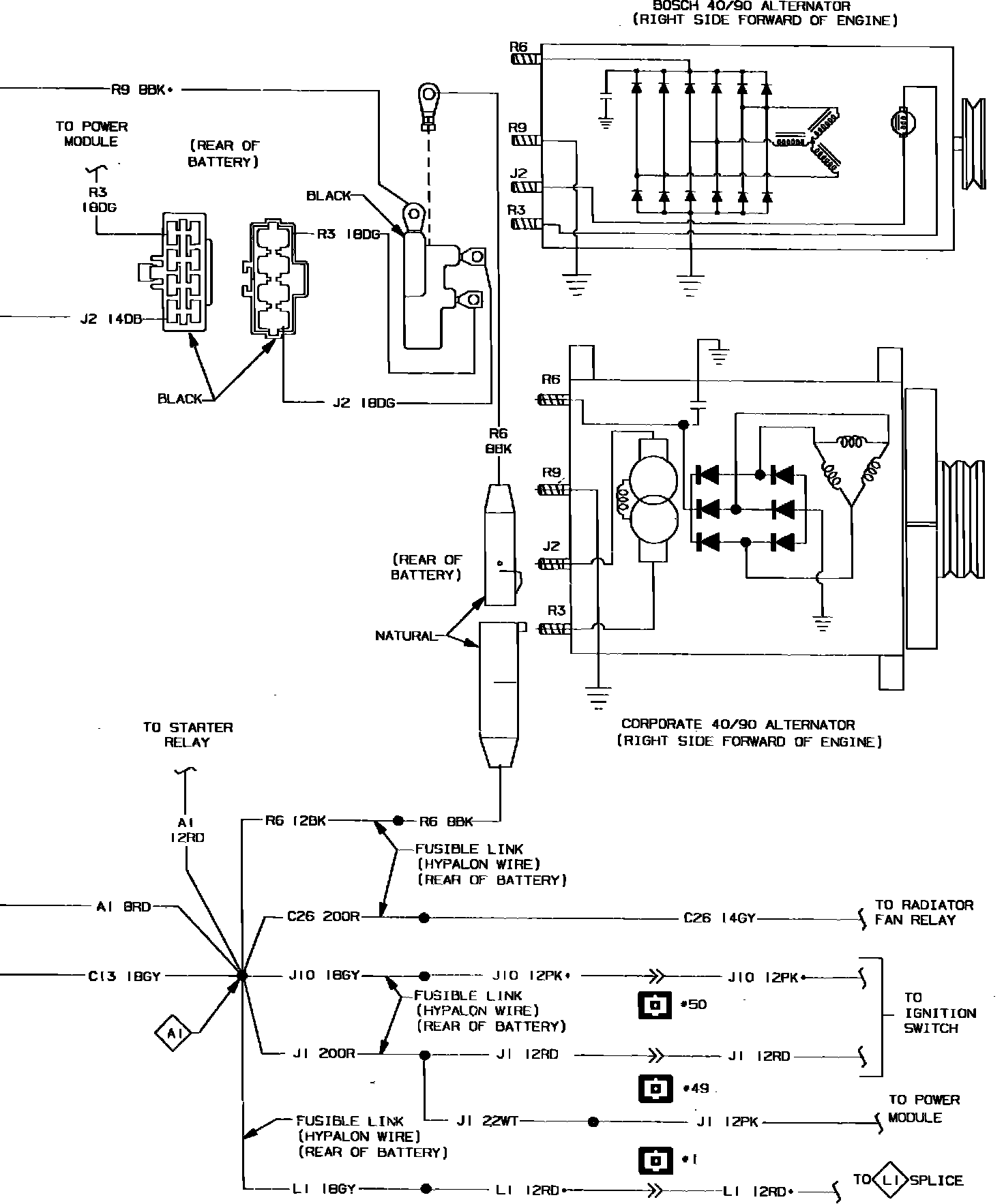

Fig. 24 Charging System Wiring Circuit (Part 1 of 2):

Fig. 24 Charging System Wiring Circuit (Part 2 of 2):

Fig. 59 Starter Wiring Circuit (Part 1 of 2):

Fig. 59 Starter Wiring Circuit (Part 2 of 2):
