Heated Rear Window Wiring Circuit

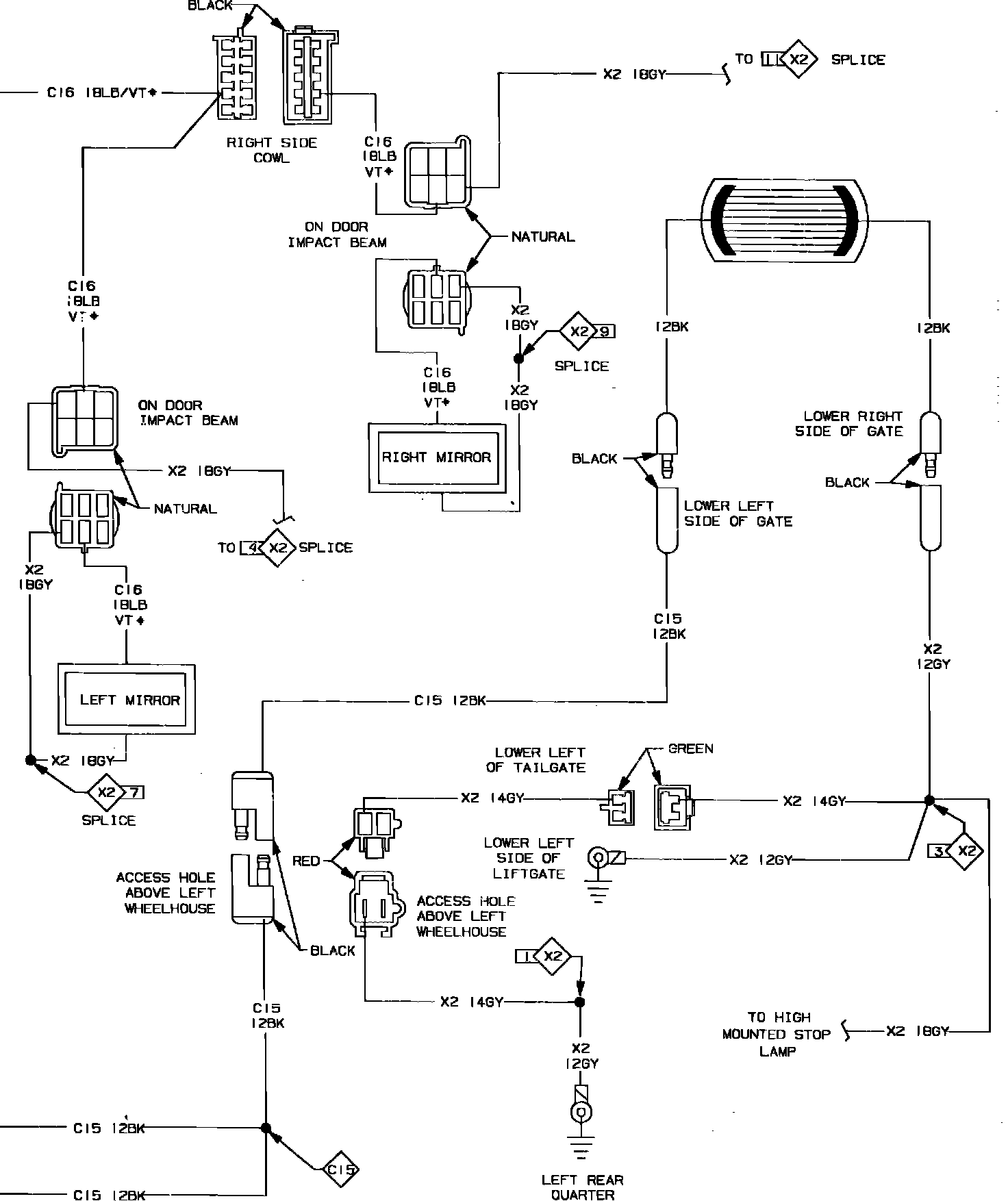

Fig. 38 Heated Rear Window & Mirrors Wiring Circuit (Part 1 of 2):

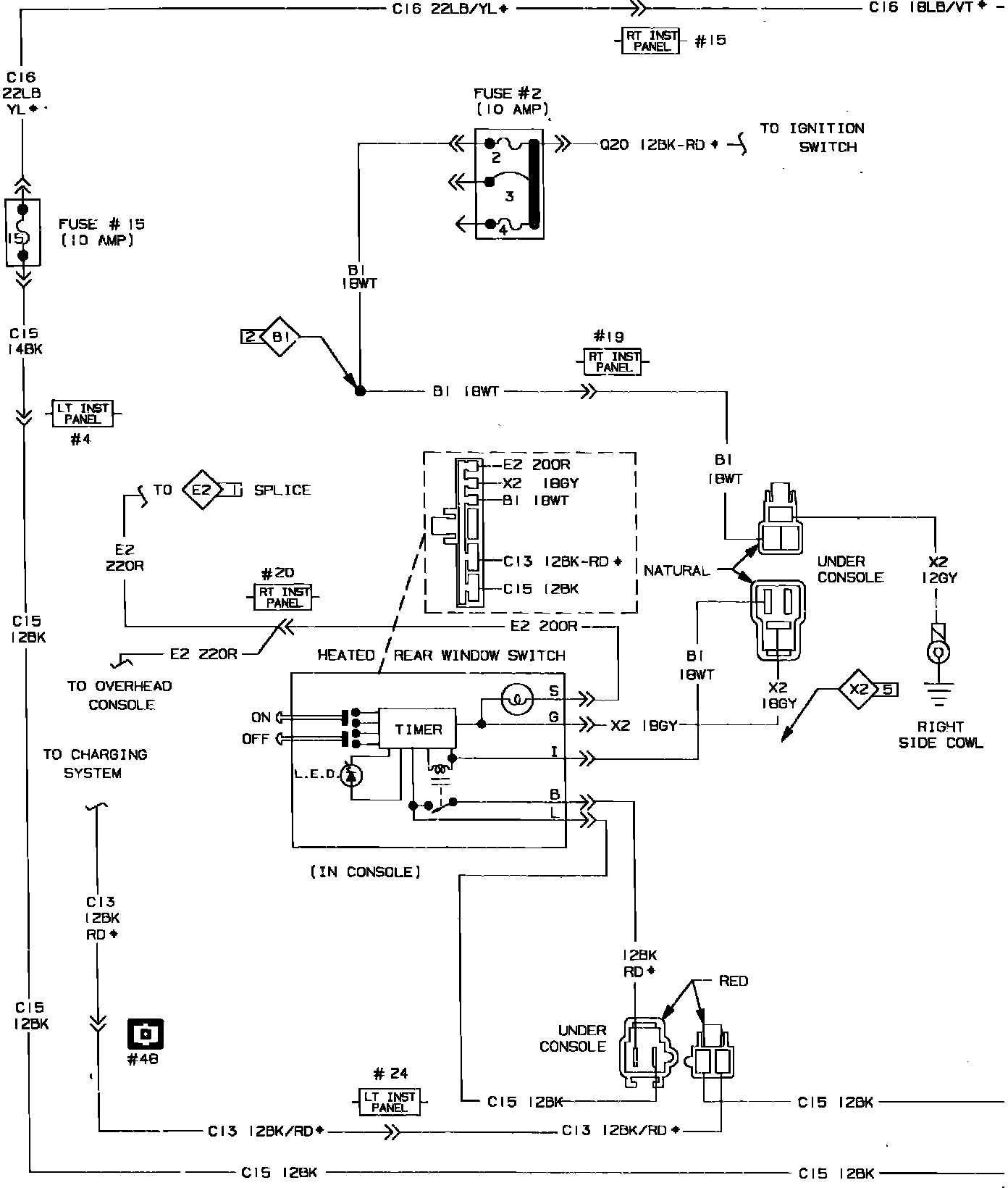

Fig. 38 Heated Rear Window & Mirrors Wiring Circuit (Part 2 of 2):
