Lebaron Coupe L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

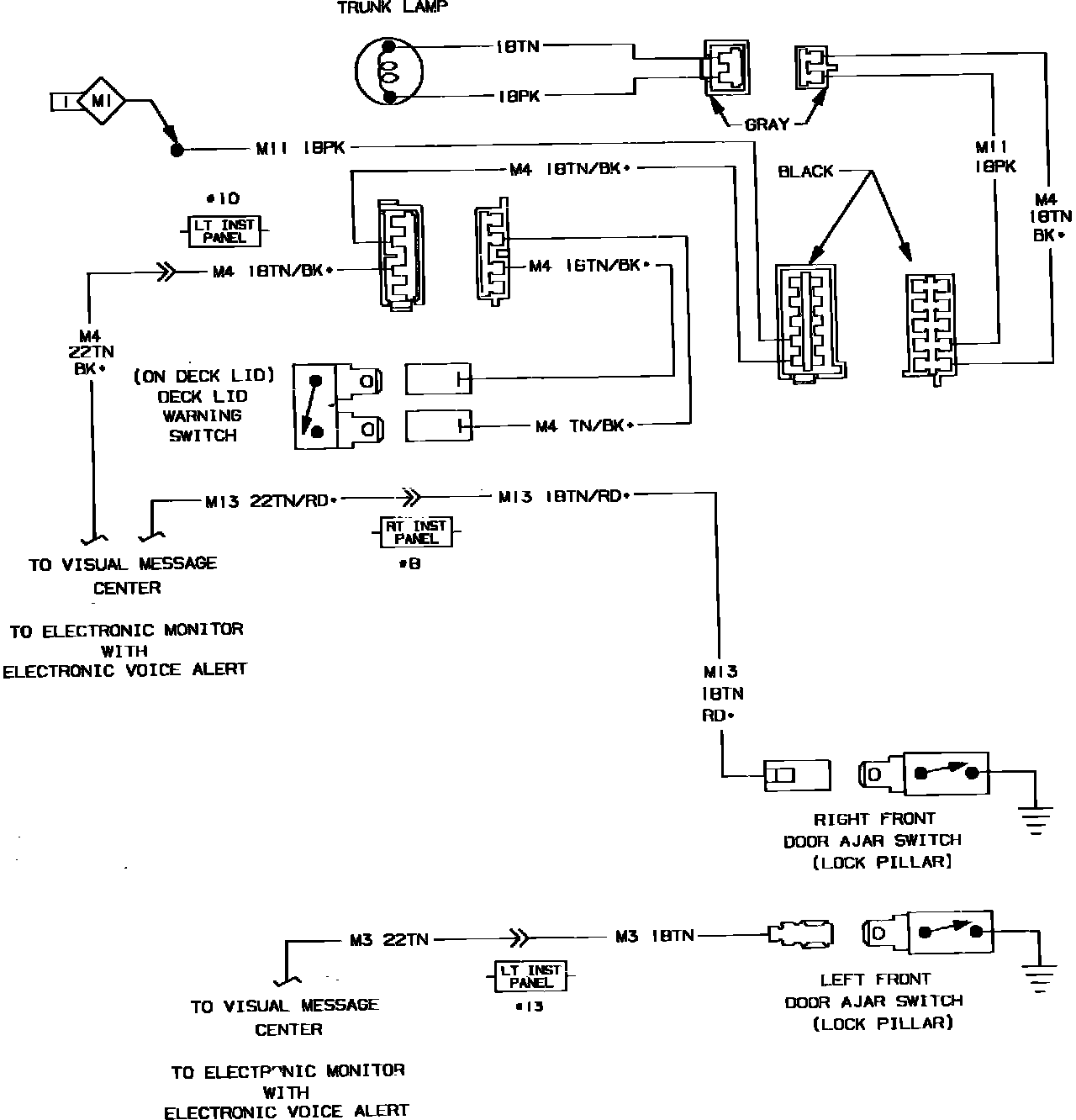

Fig. 26 Deck Lid & Door Ajar Warning System Wiring Circuit:
