Center Mounted Brake Lamp
Center Mounted Brake Lamp

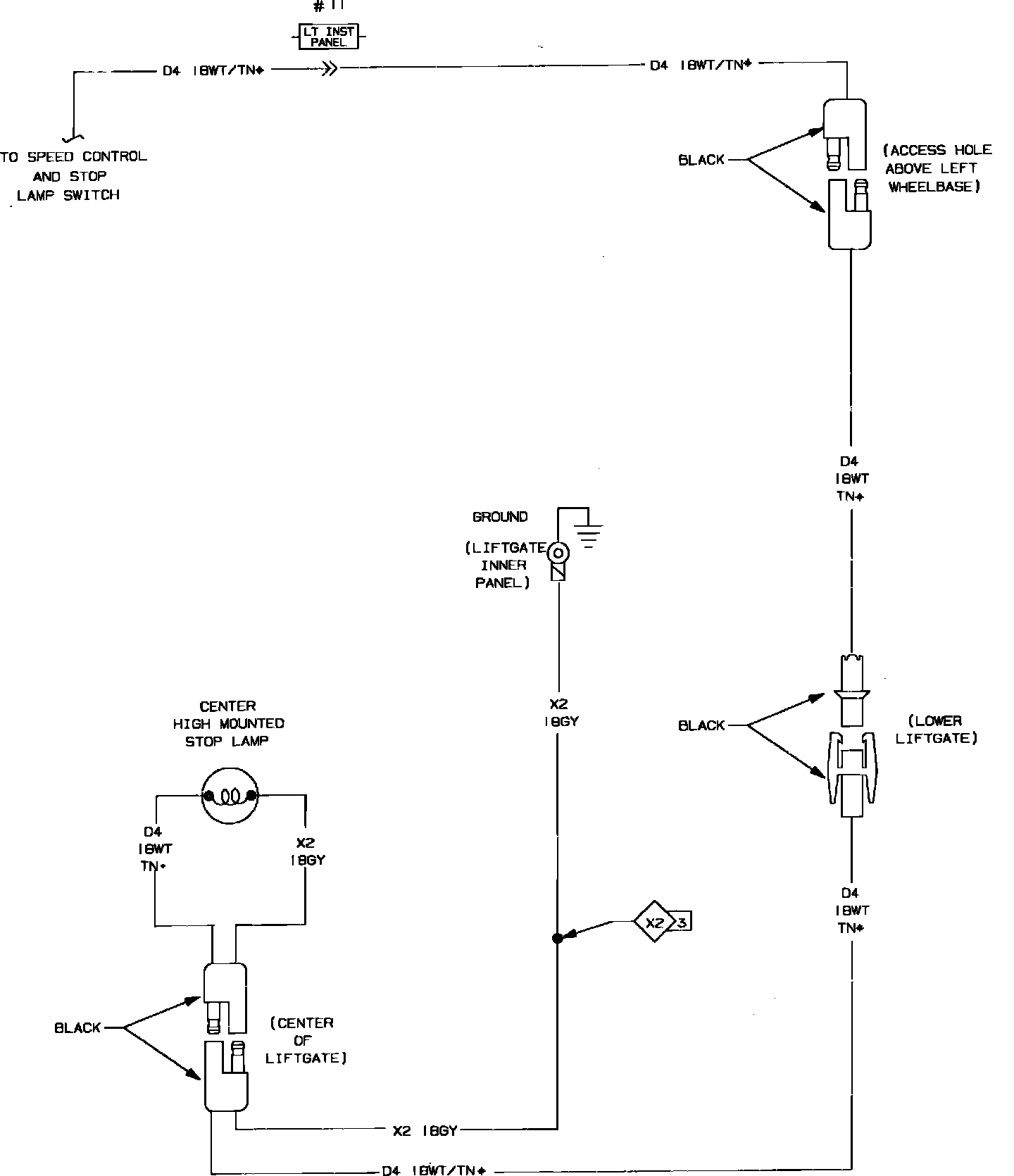

Fig. 61 Stop Lamp (High Mount) Wiring Circuit. With Liftgate:
