Home >> Chrysler >> 1987 >> Lebaron Coupe L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 4

Part 4

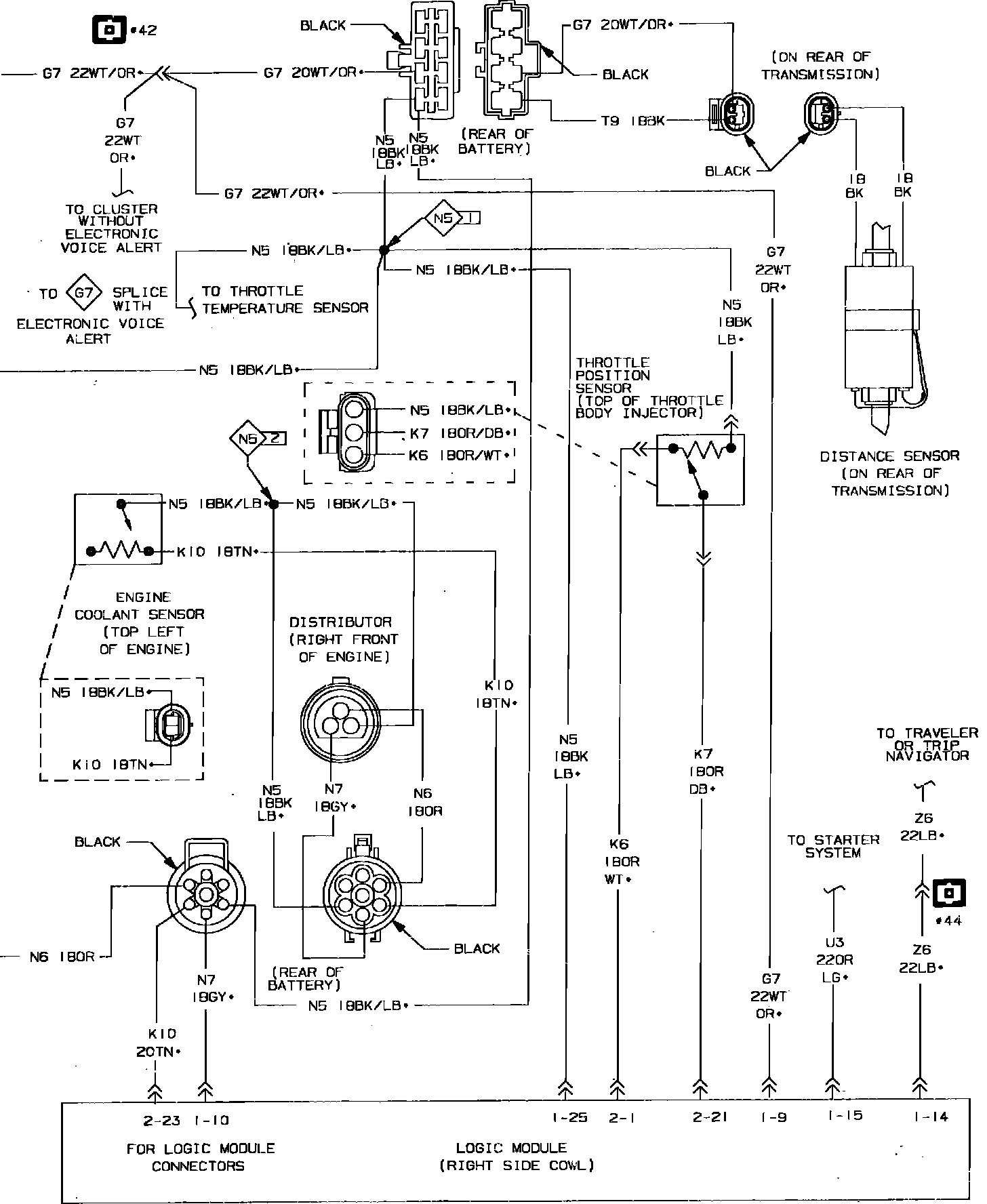

Fig. 41 Ignition System Wiring Circuit (Part 4 of 4). Less Turbo:
