Audible Warning Device Control Module
Audible Warning Device Control Module

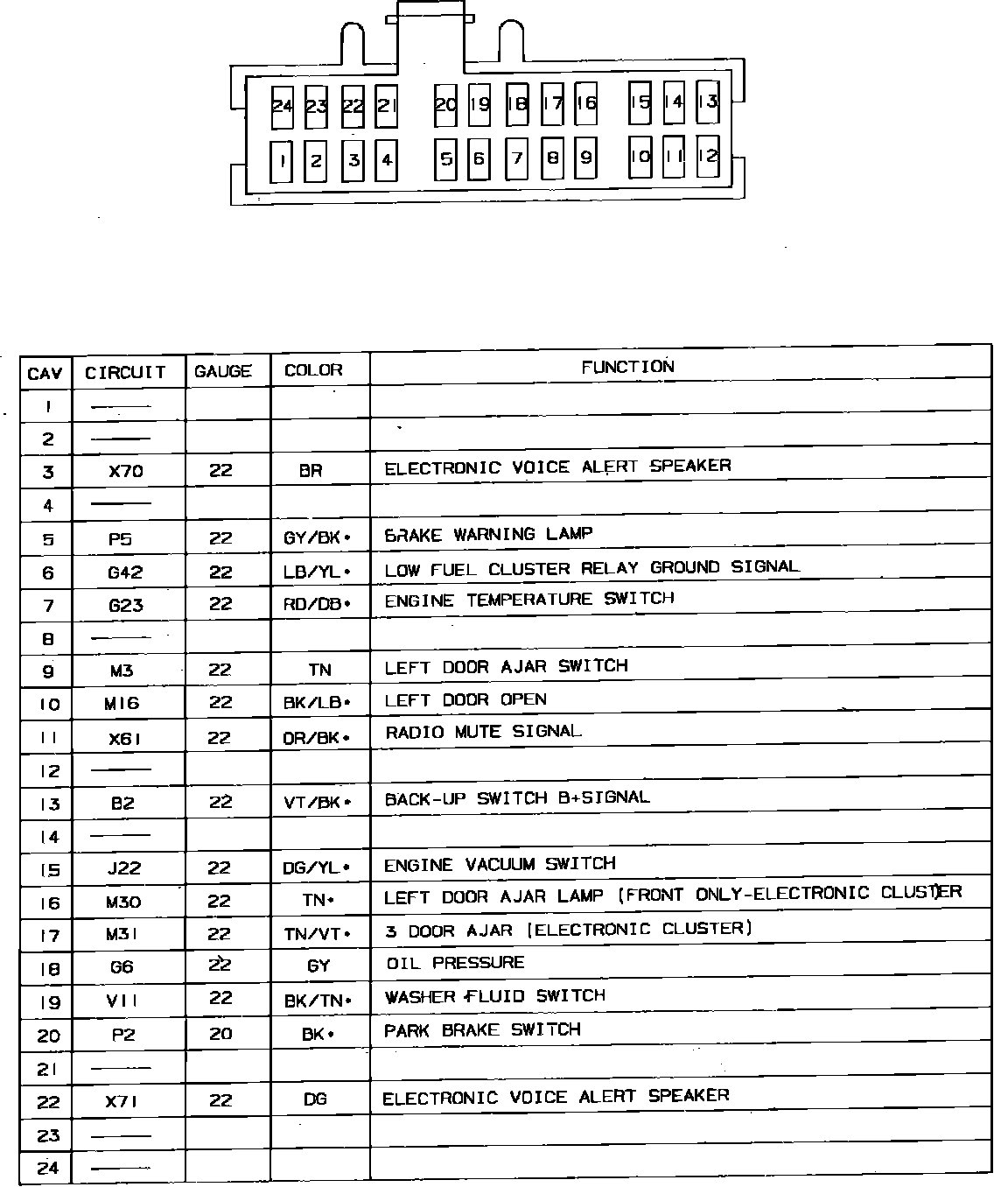

Fig. 4 Electronic Voice Alert System Connector:
