Multiple Junction Connector
>>
Engine Compartment Side
Engine Compartment Side

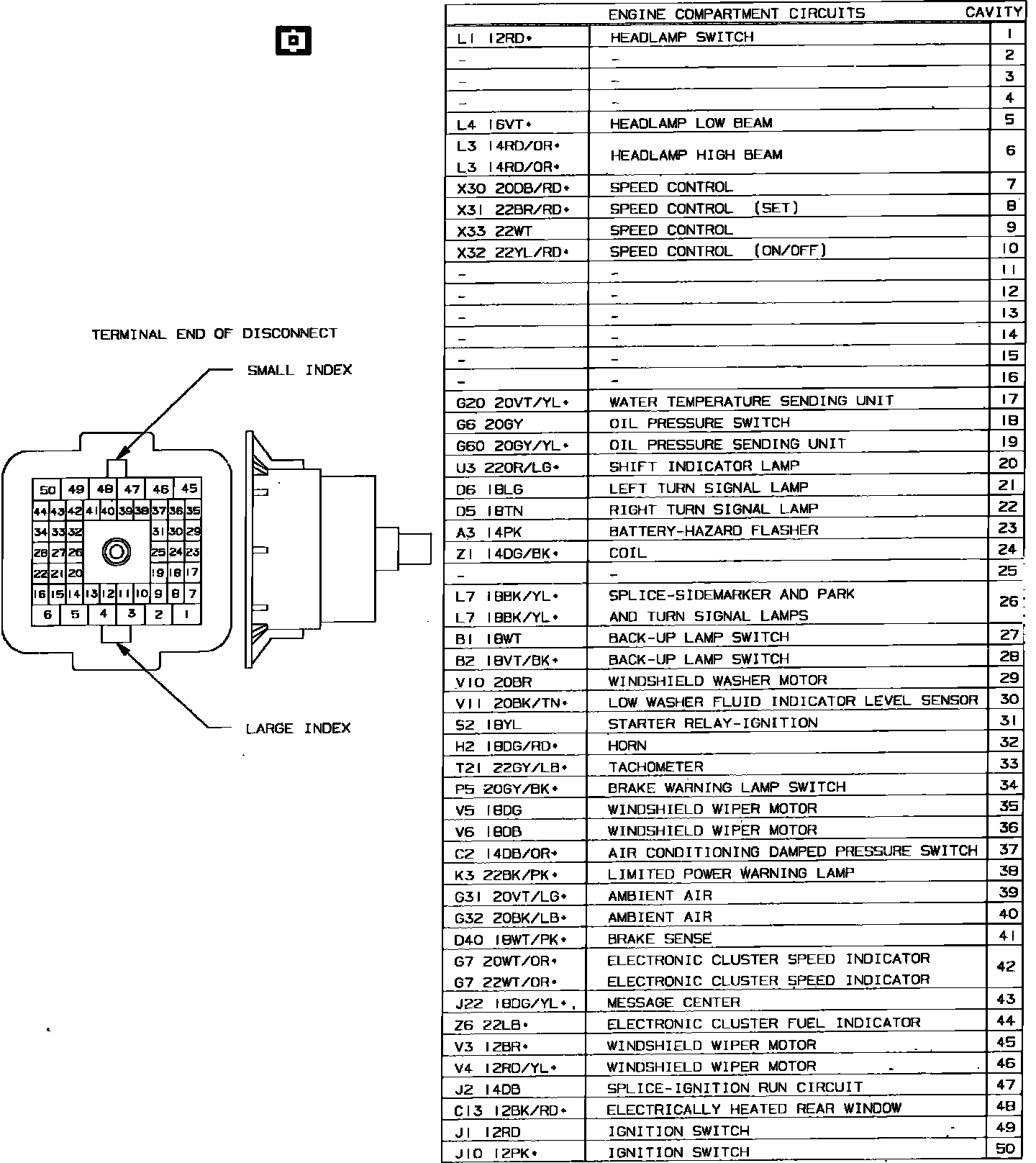

Fig. 2 Bulkhead Connector. Engine Compartment:
