Multiple Junction Connector
>>
Instrument Panel Side
Instrument Panel Side

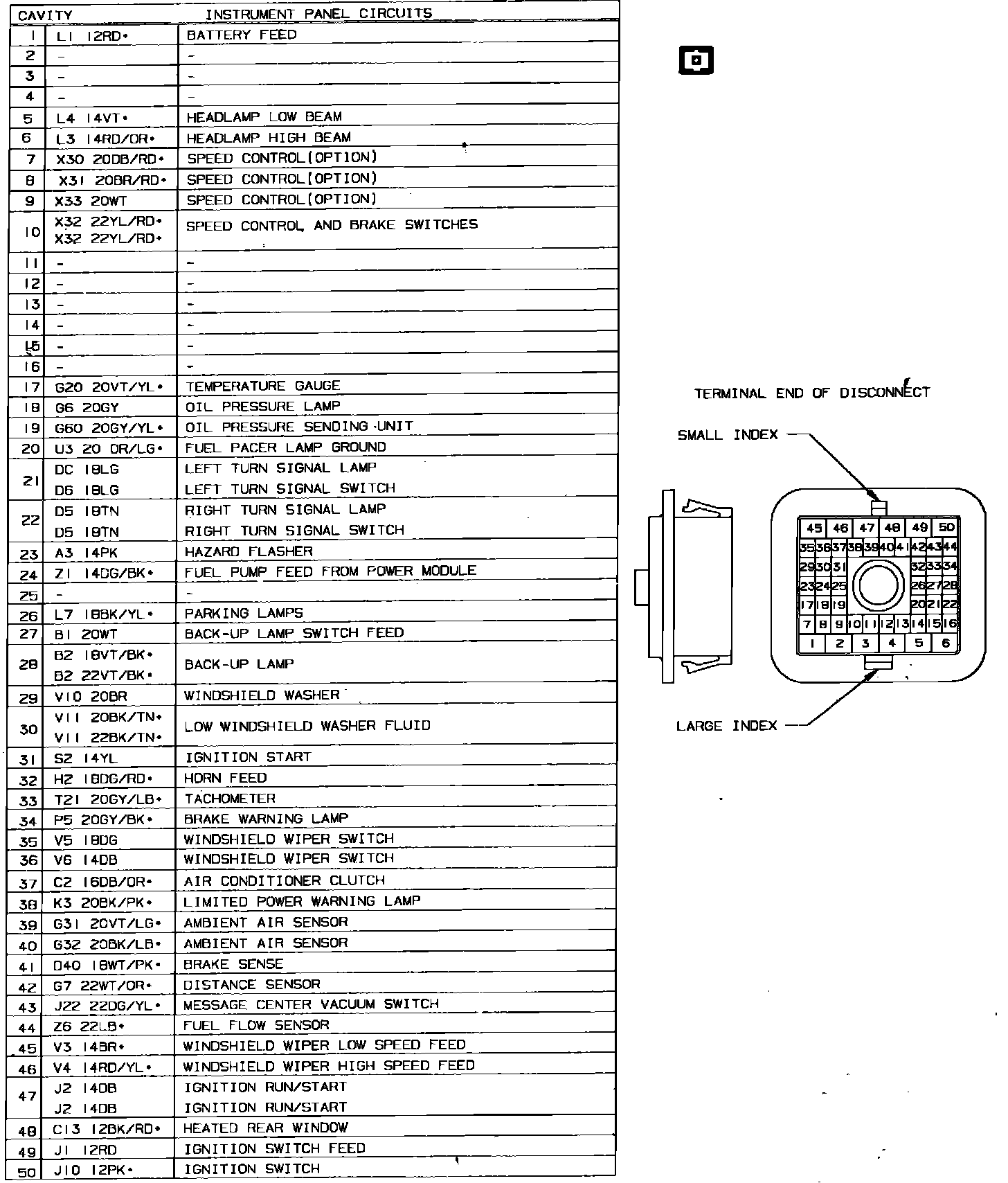

Fig. 3 Bulkhead Connector. Instrument Panel:
