Courtesy & Dome Lamp

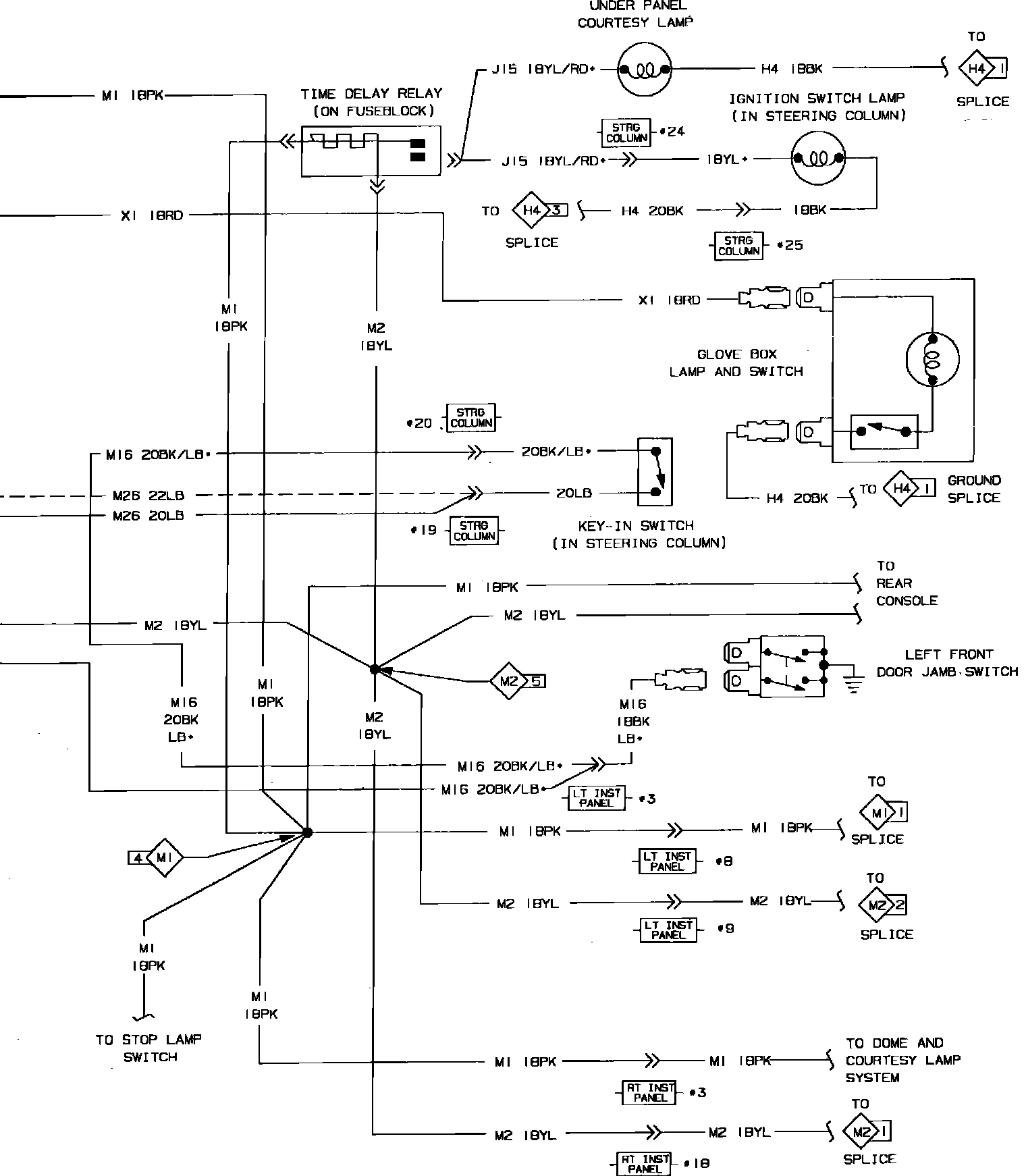

Fig. 25 Courtesy, Dome Lamp & Seat Belt Warning Wiring Circuit Courtesy & Dome Lamp:
