Cruise Control Switch

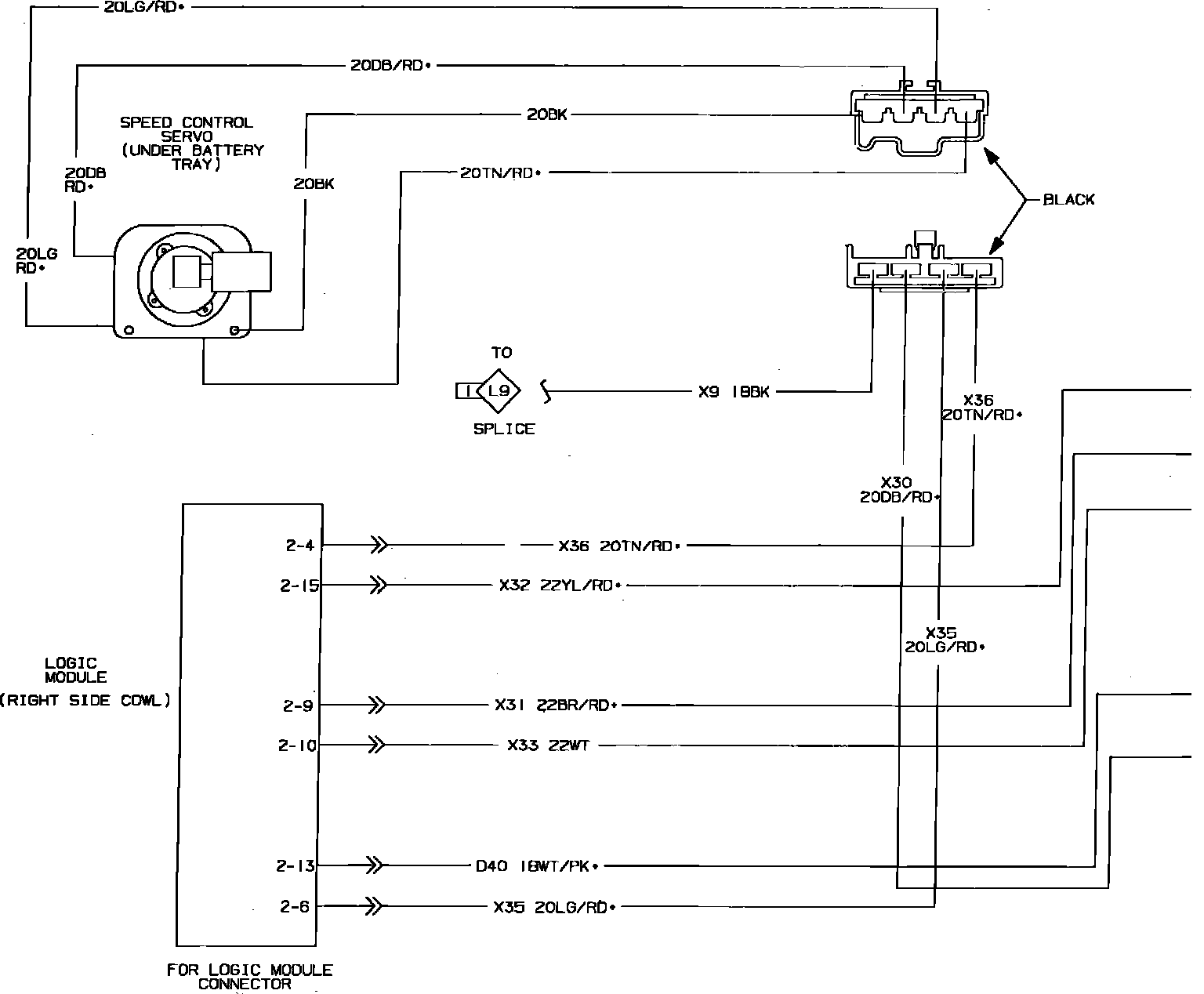

Fig. 54 Speed Cntrol Switch & Stop Lamp Wiring Circuit (Part 1 of 2):

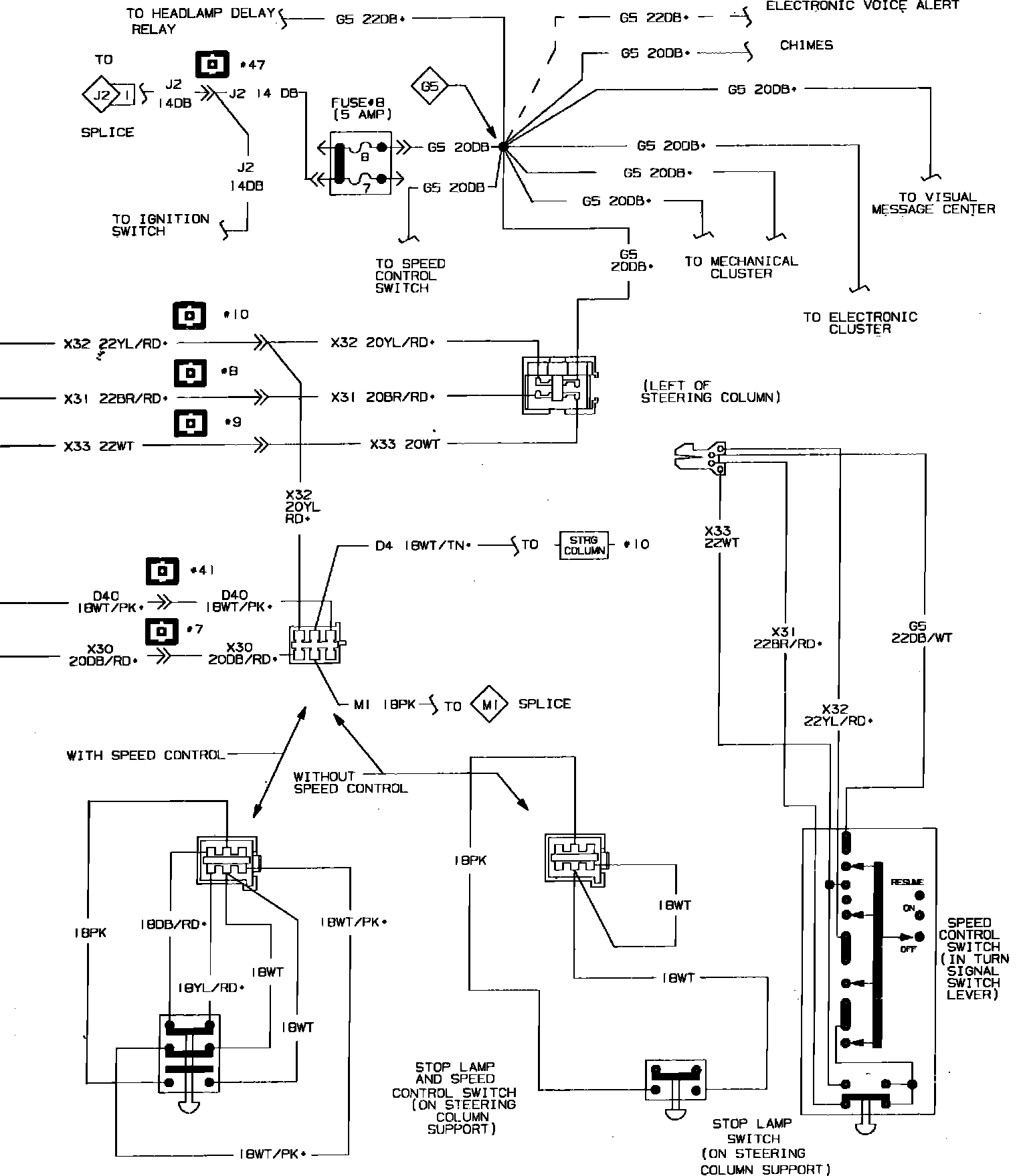

Fig. 54 Speed Cntrol Switch & Stop Lamp Wiring Circuit (Part 2 of 2):
