Lebaron GTS L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
A/C & Heater (Instrument Panel)
A/C & Heater (Instrument Panel)

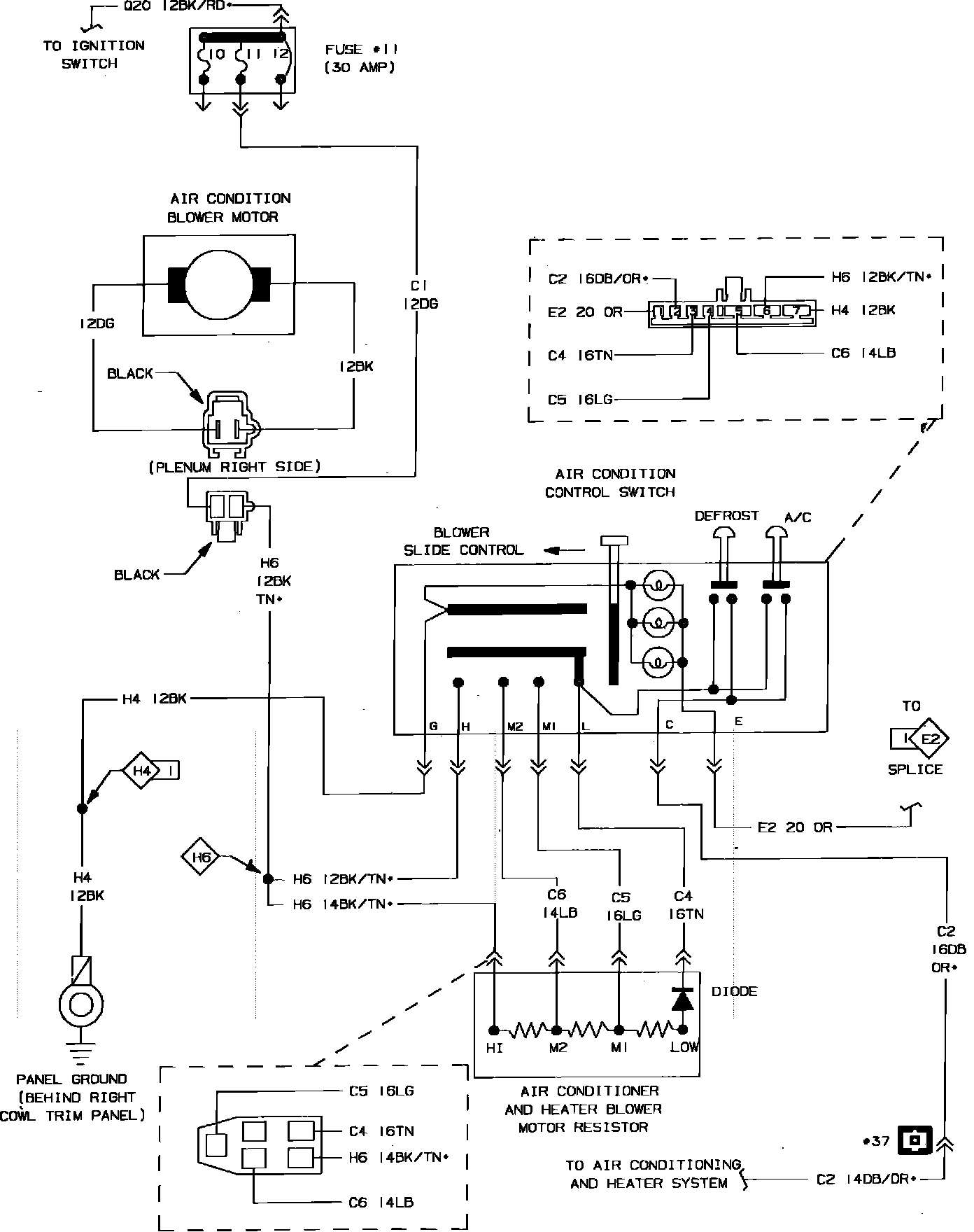

Fig. 21 Air Conditioning System Wiring Circuit. Instrument Panel:
