Dome Lamp

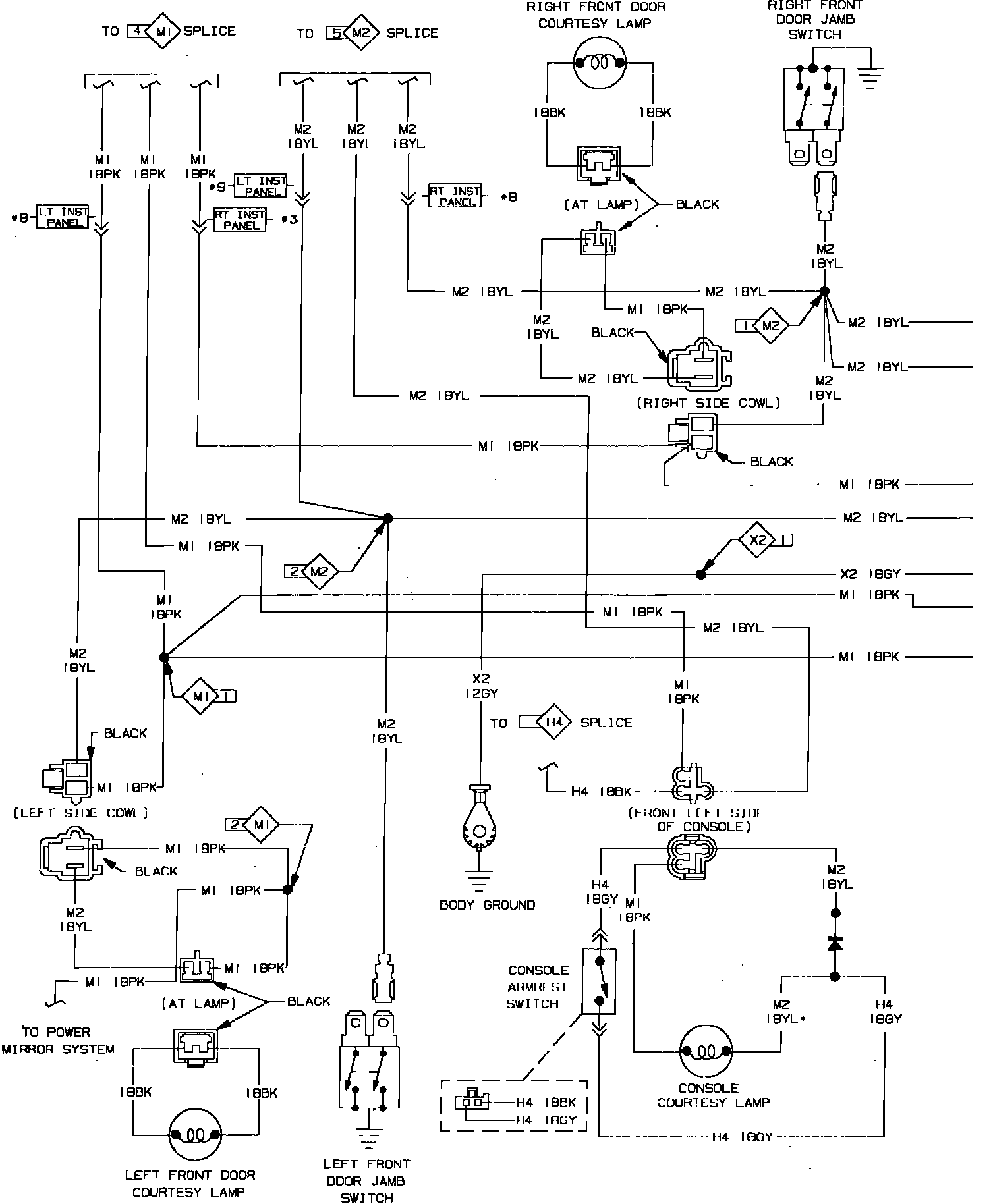

Fig. 24 Courtesy & Dome Lamp Wiring Circuit (Part 1 of 2):

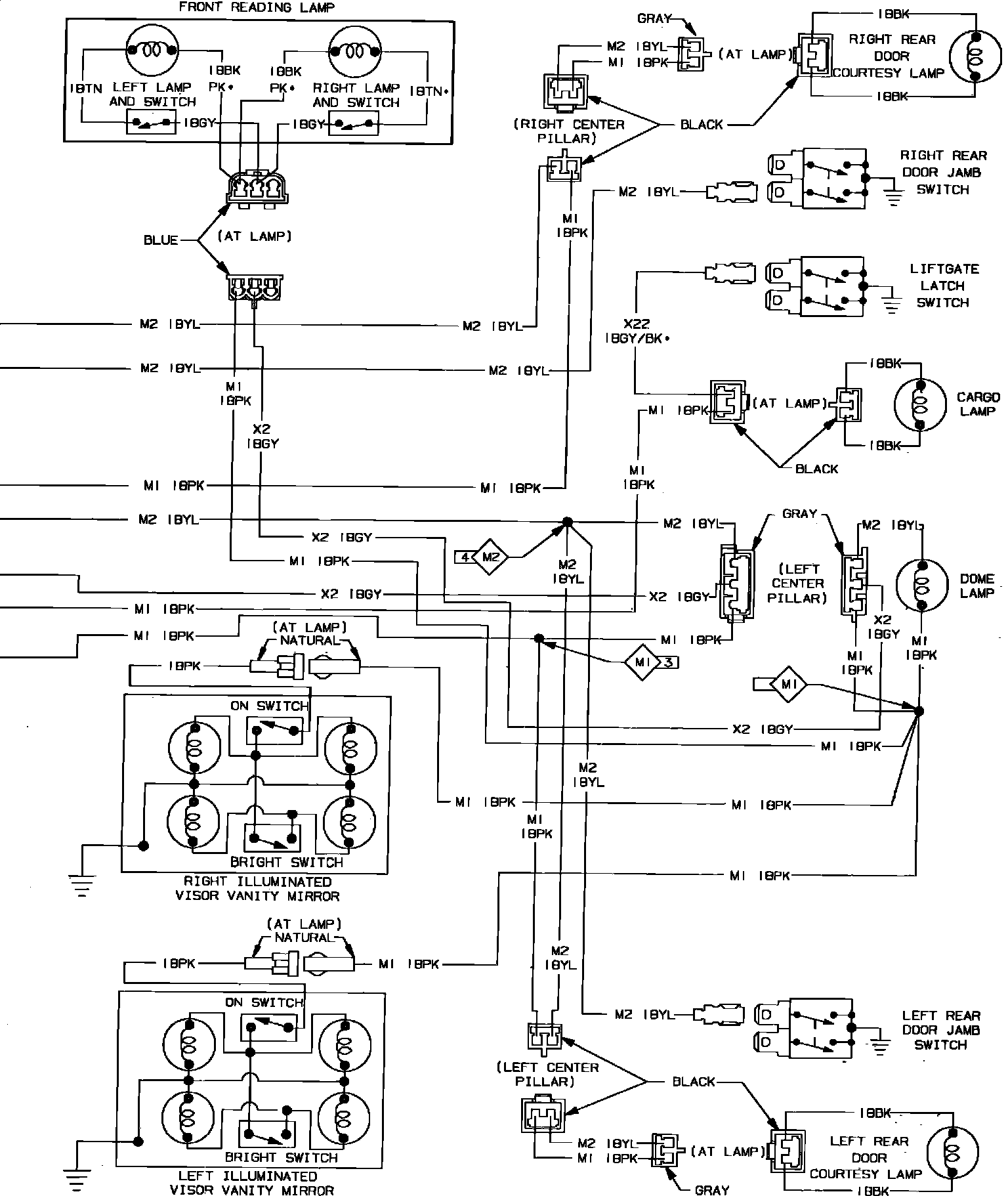

Fig. 24 Courtesy & Dome Lamp Wiring Circuit (Part 2 of 2):
