Home >> Chrysler >> 1987 >> Lebaron GTS L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Left Side

Left Side

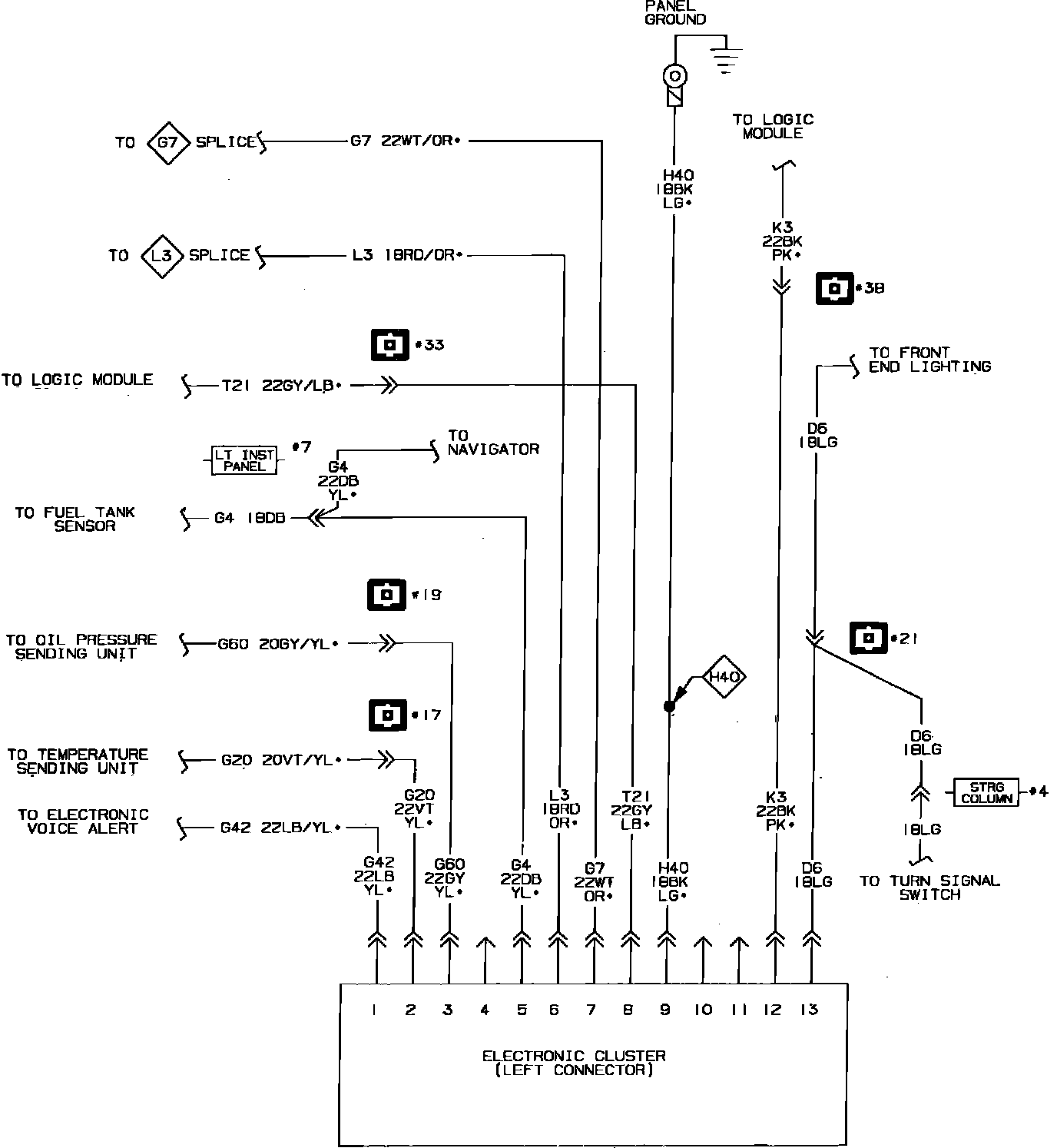

Fig. 26 Electronic Cluster Wiring Circuit. Left Side:
