Front End Lighting

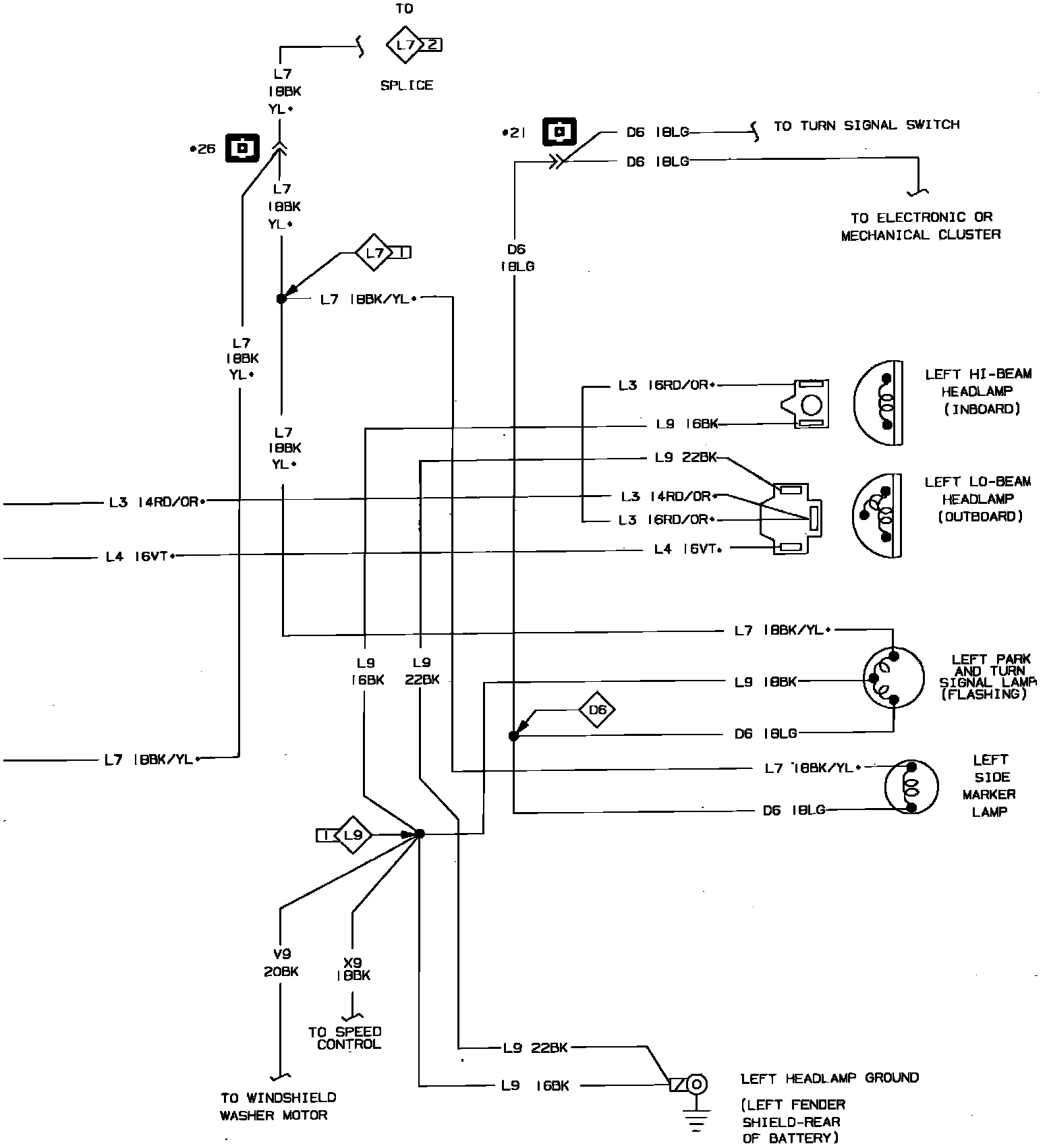

Fig. 31 Front End Lighting Wiring Circuit. Left:

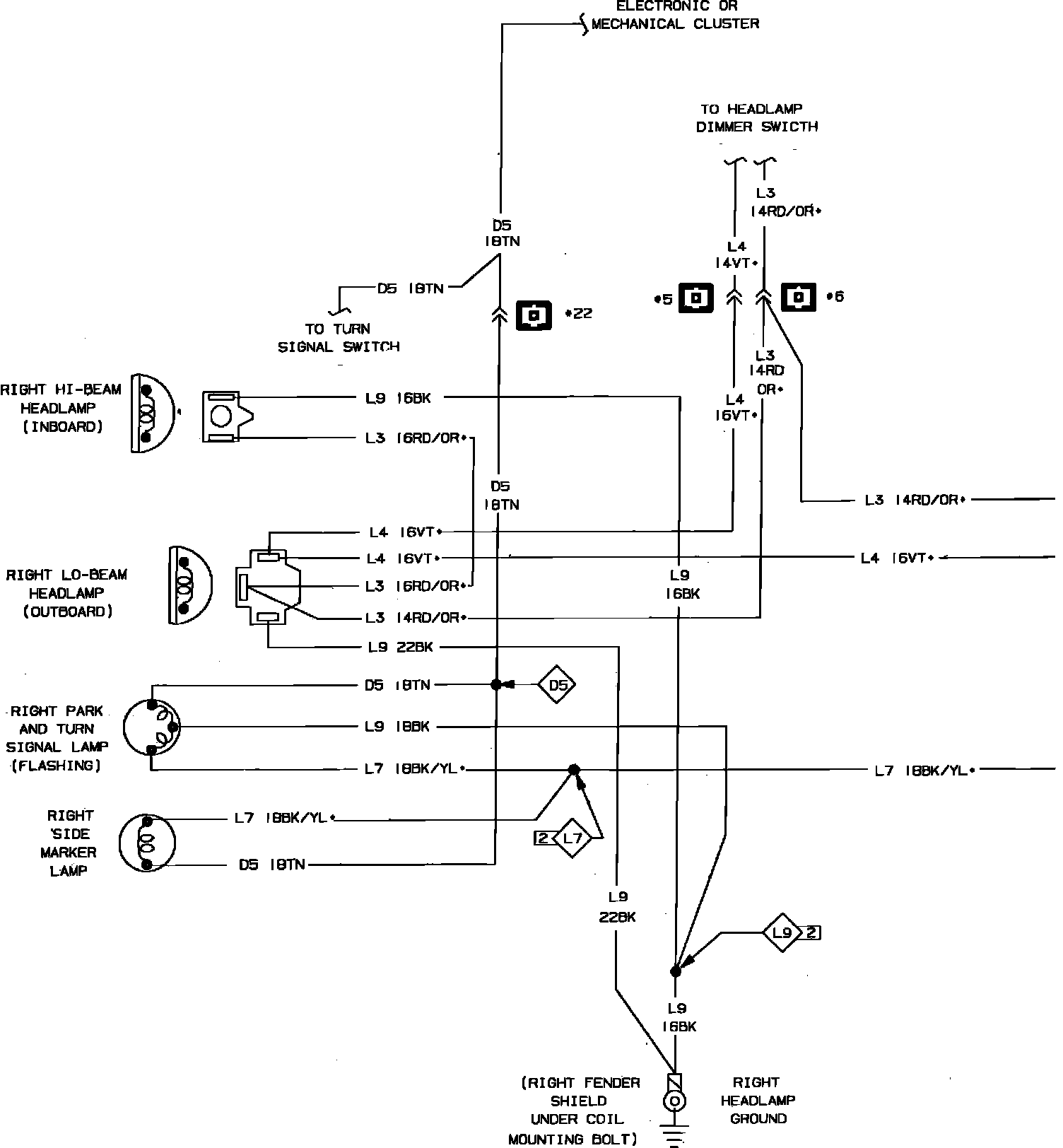

Fig. 31 Front End Lighting Wiring Circuit. Right:
