Deck Lid/Liftgate Release Wiring Circuit

Fig. 27 Deck Lid Release Wiring Circuit:

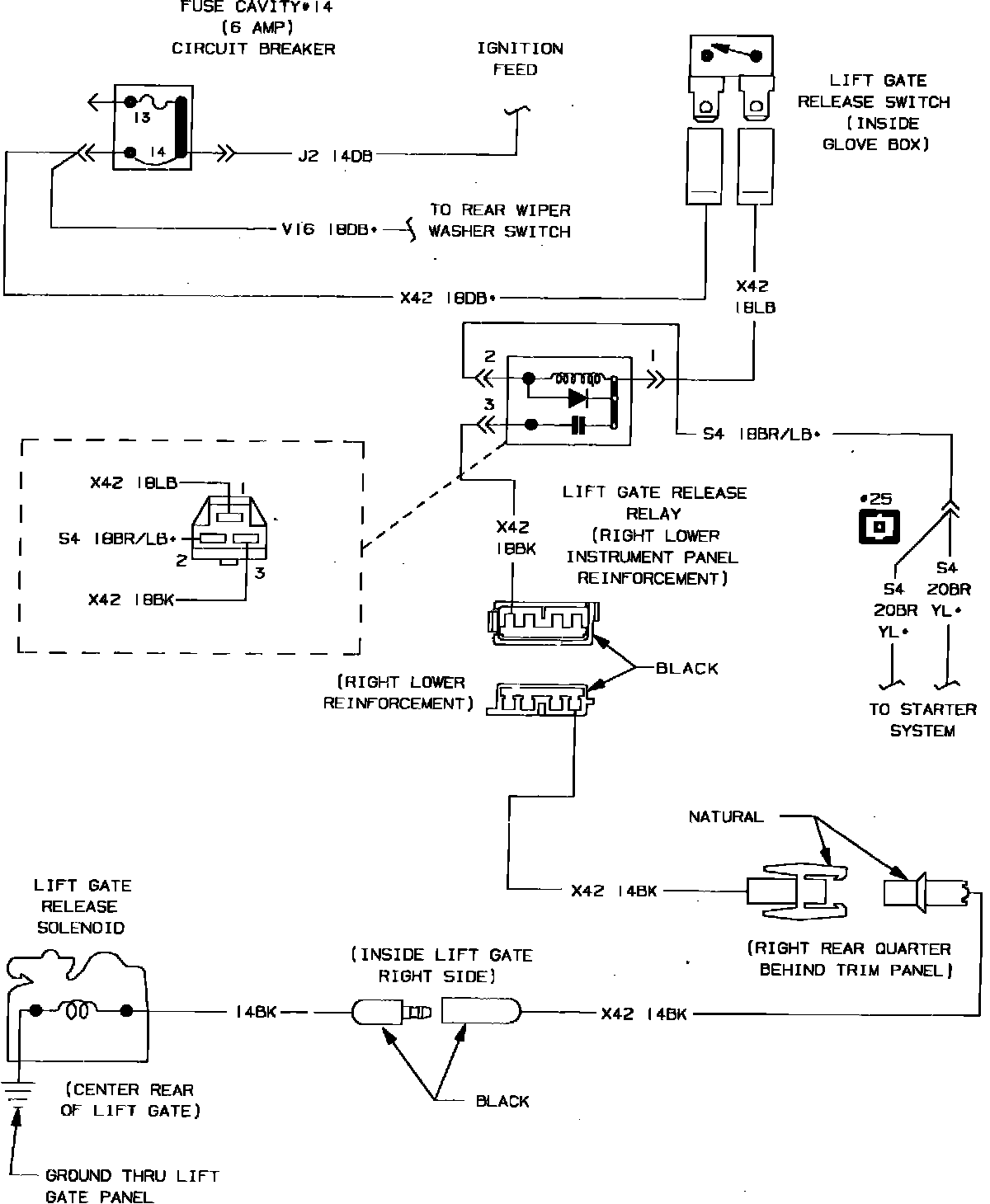

Fig. 46 Liftgate Release Wiring Circuit:
