Dome Lamp

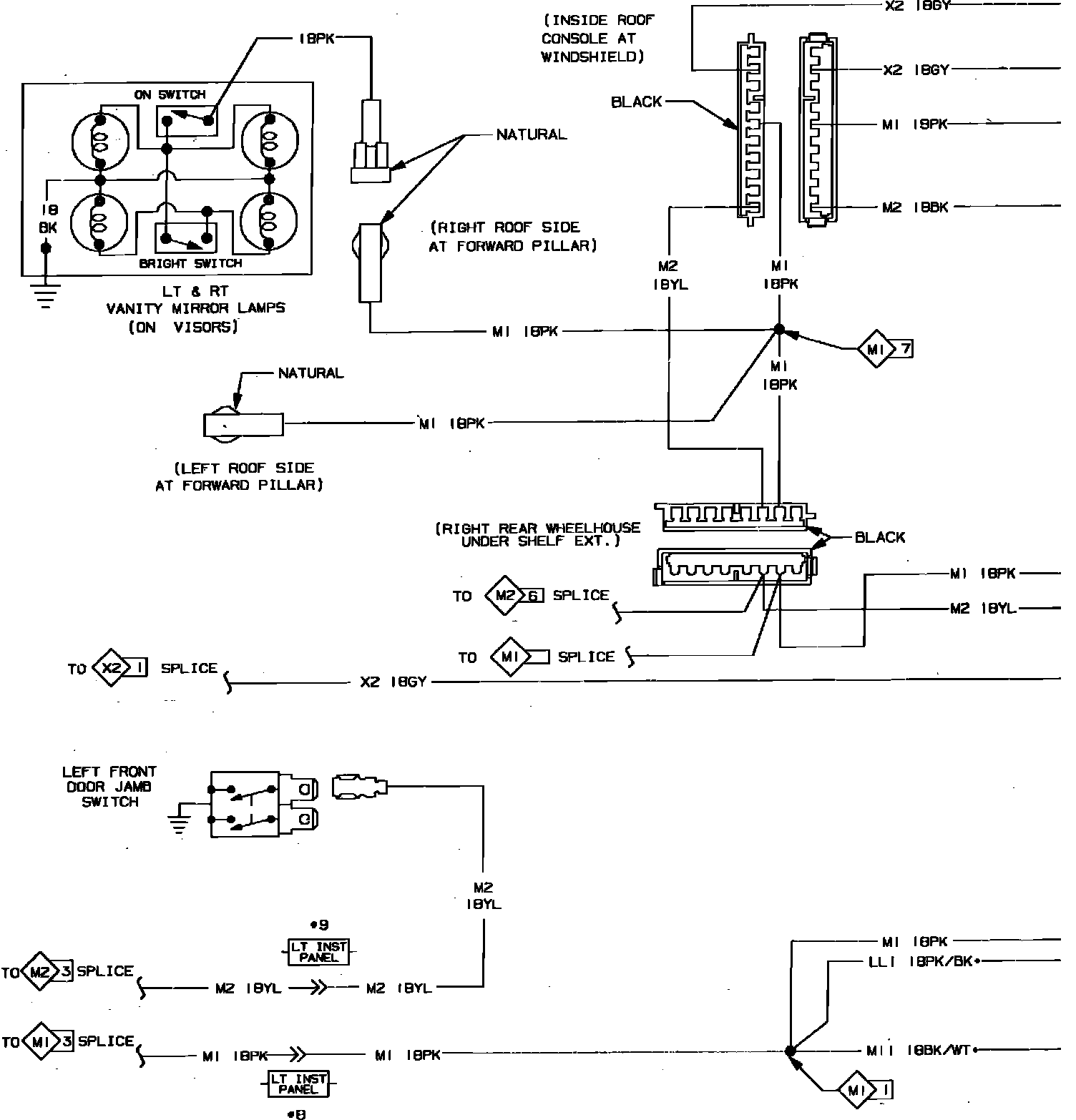

Fig. 21 Courtesy & Dome Lamps Wiring Circuit. New Yorker(Part 1 Of 2):

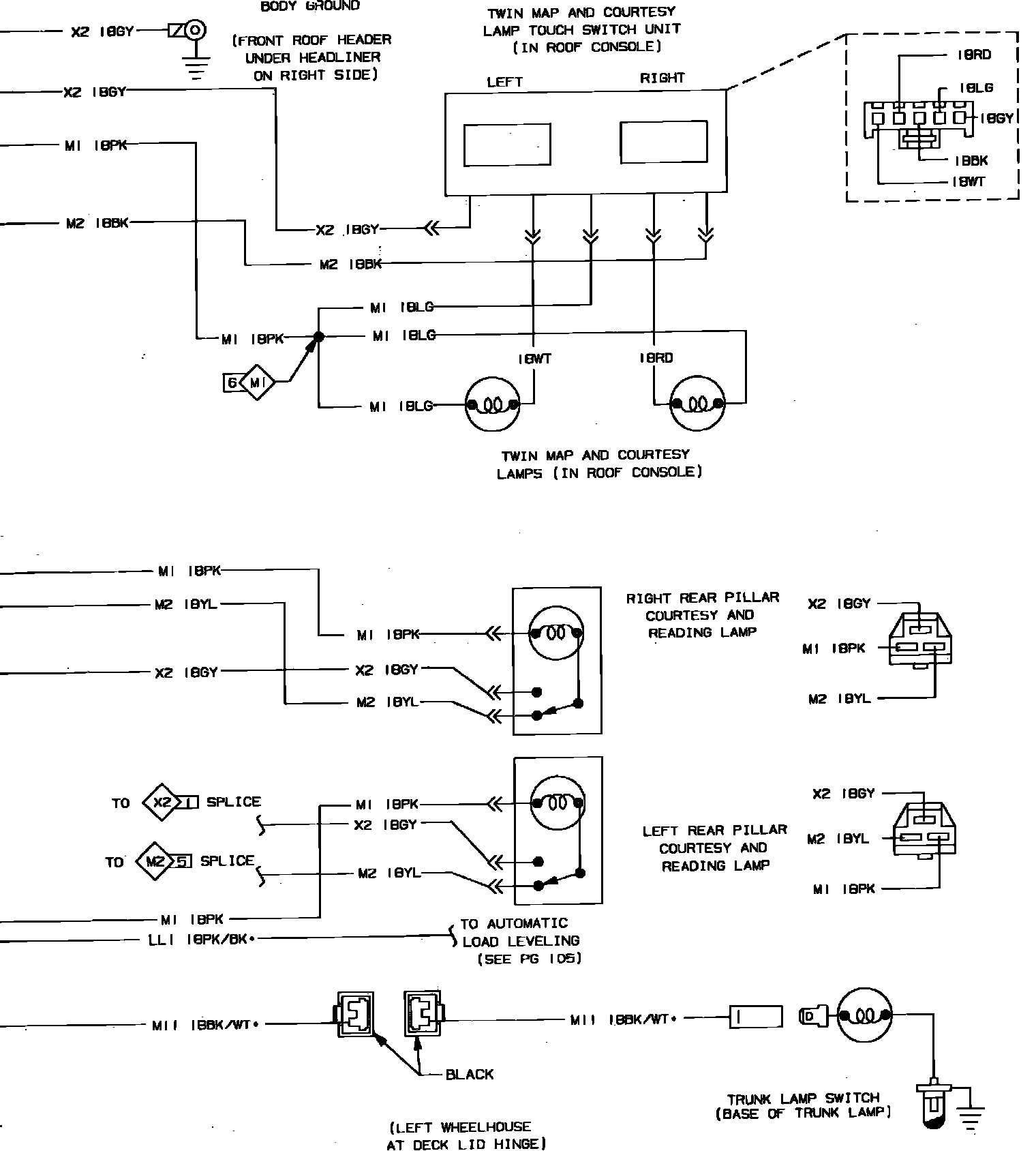

Fig. 21 Courtesy & Dome Lamps Wiring Circuit. New Yorker(Part 2 Of 2):

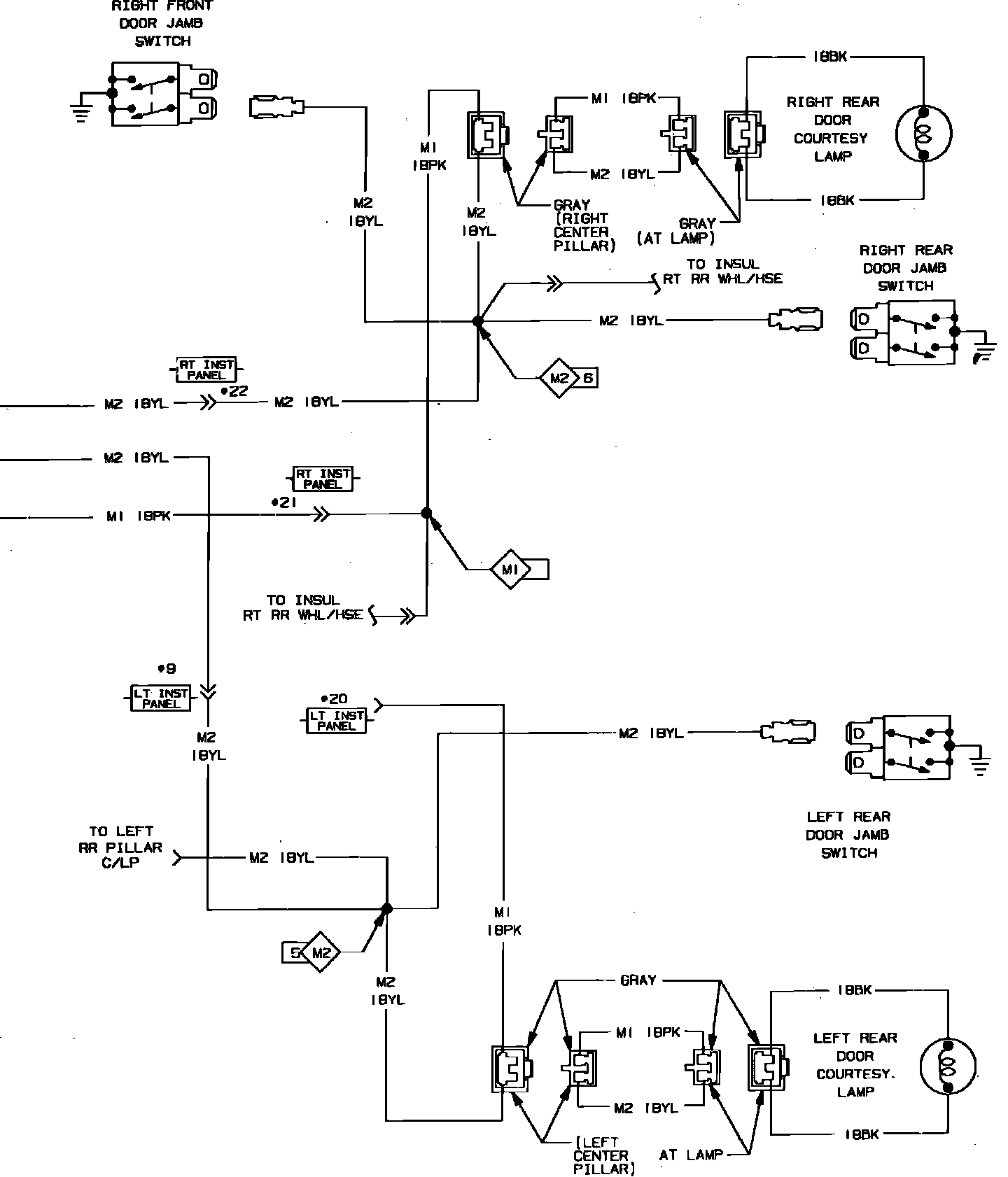

Fig. 22 Courtesy & Dome Lamps Wiring Circuit. Front & Rear Doors (Part 1 Of 2):

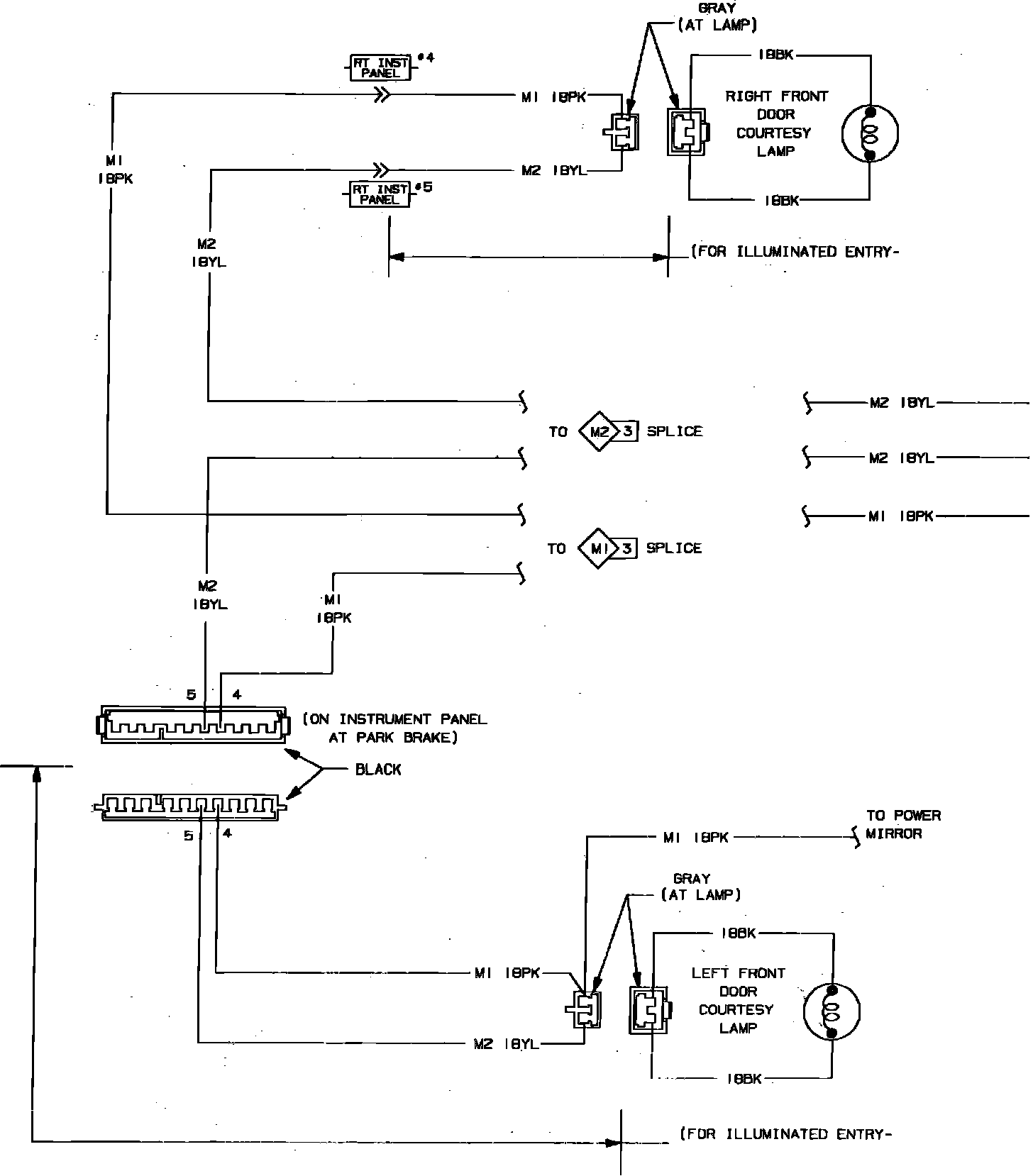

Fig. 22 Courtesy & Dome Lamps Wiring Circuit. Front & Rear Doors (Part 2 Of 2):
