Mirrors: Testing and Inspection

DOOR MIRROR ASSEMBLY

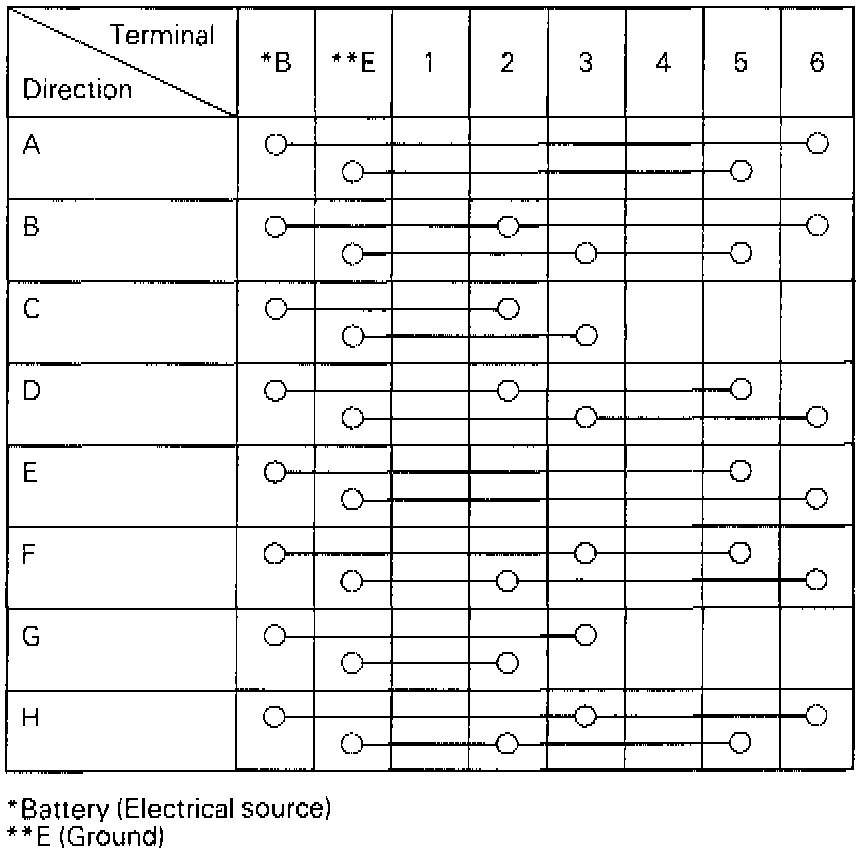

1. Confirm that the mirror moves correctly when battery voltage is applied to the mirror side terminals as indicated in the chart.
2. Check to see that there is continuity between heater terminals 1 and 4.
