Conquest TSI L4-2555cc 2.6L Turbo VIN N FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
D Connectors - Instrument Panel & Floor Console Harness
D Connectors - Instrument Panel & Floor Console Harness

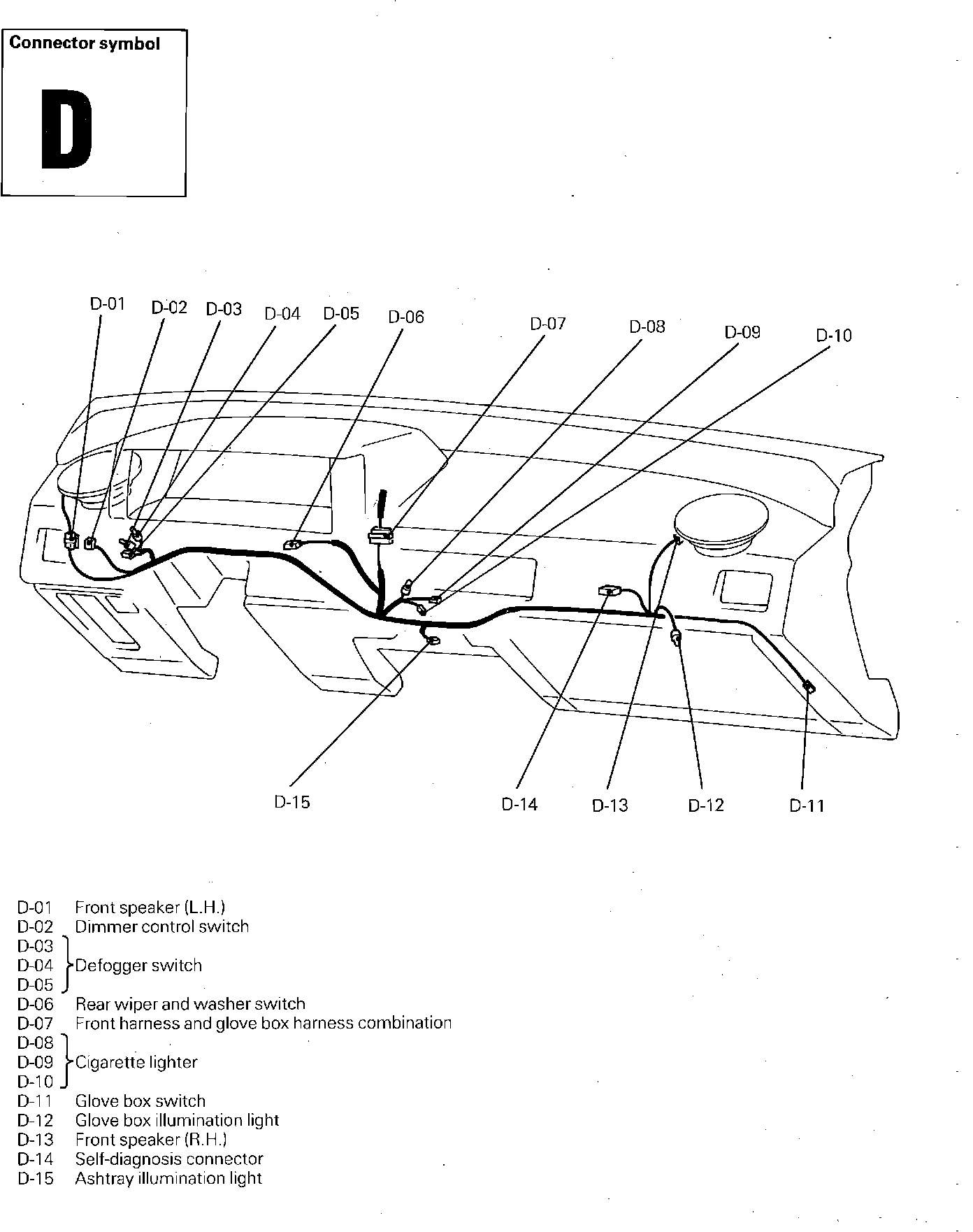

D Connector Locations:
