Conquest TSI L4-2555cc 2.6L Turbo VIN N FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
F Connectors - Rear Hatch
F Connectors - Rear Hatch

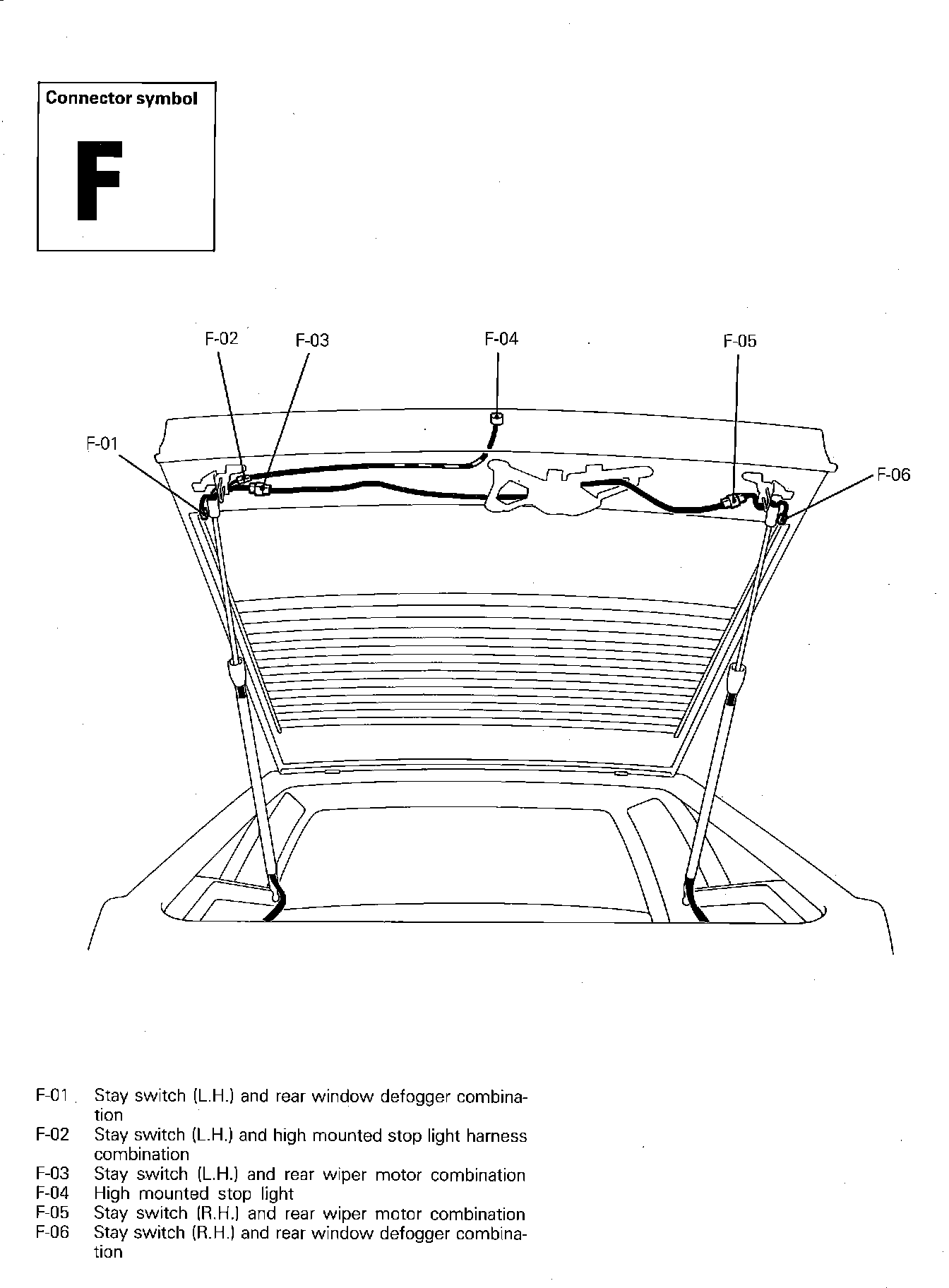

F Connector Locations:
