Computers and Control Systems: Locations

ELECTRONIC CONTROL UNIT

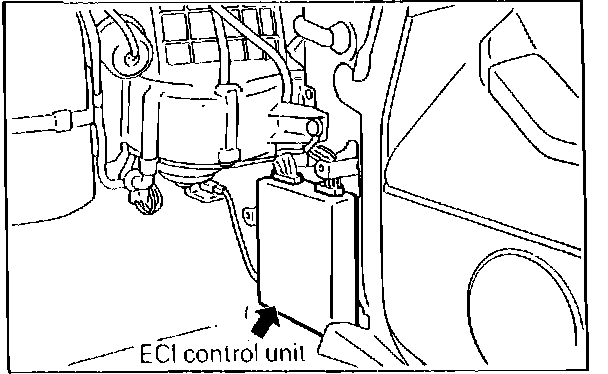

RH Side Of I/P:

The electronic control unit (ECU) is located on the RH kick panel, below the blower motor.

FUEL FILTER (IN-LINE)

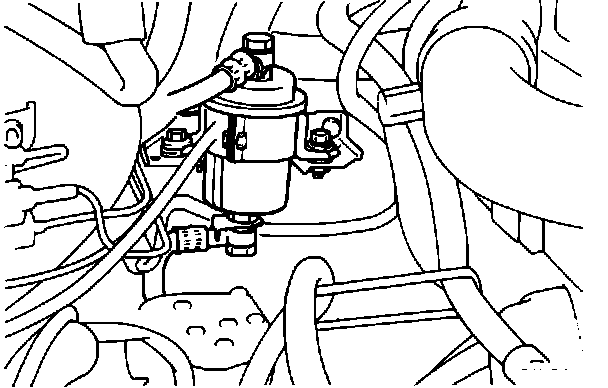

In-line Fuel Filter Location:

The In-line fuel filter is located on the firewall.

FUEL PRESSURE REGULATOR

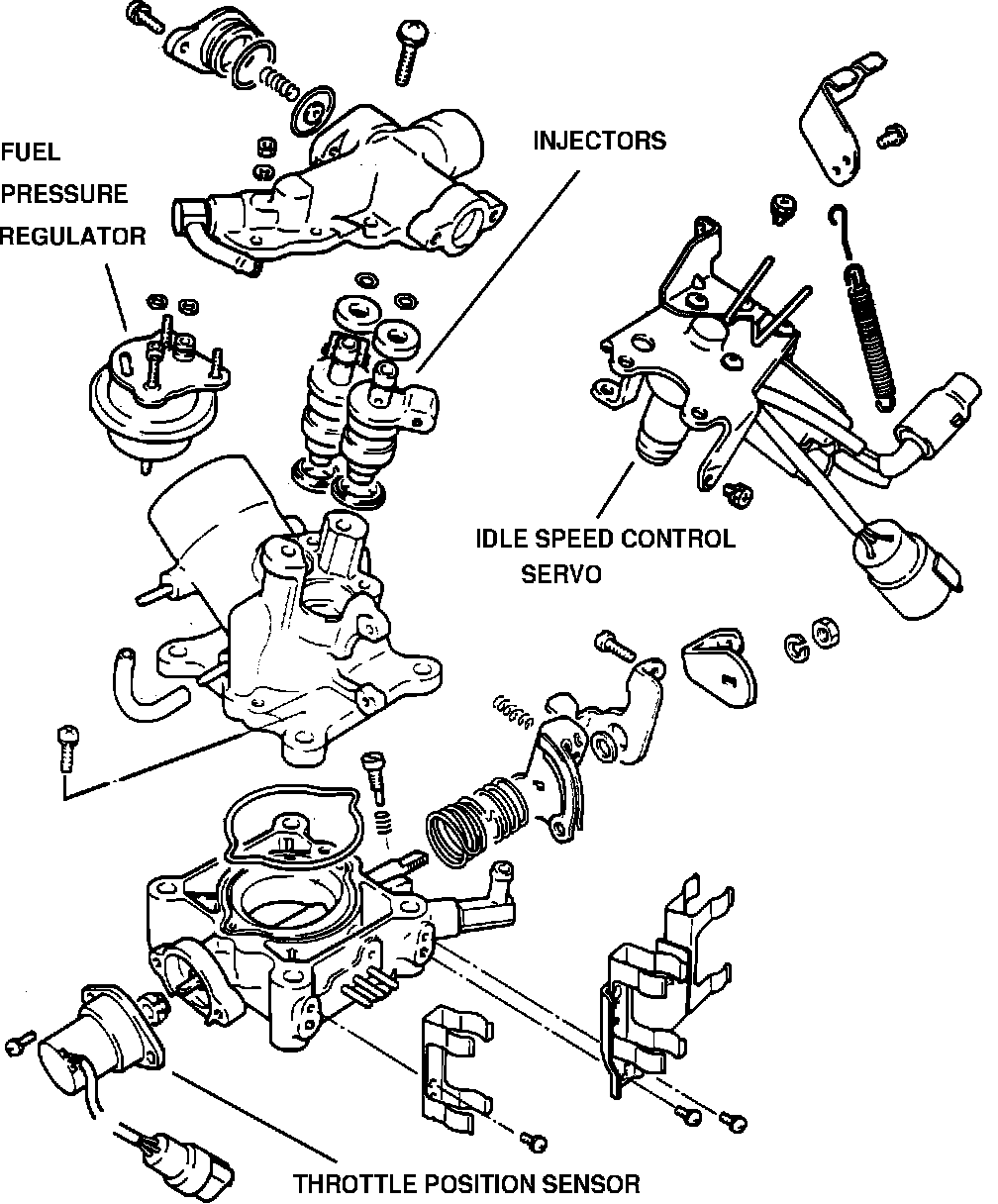

Throttle Body (Injection Mixer) Components:

The Fuel pressure regulator is mounted on the throttle body assembly.

FUEL PUMP

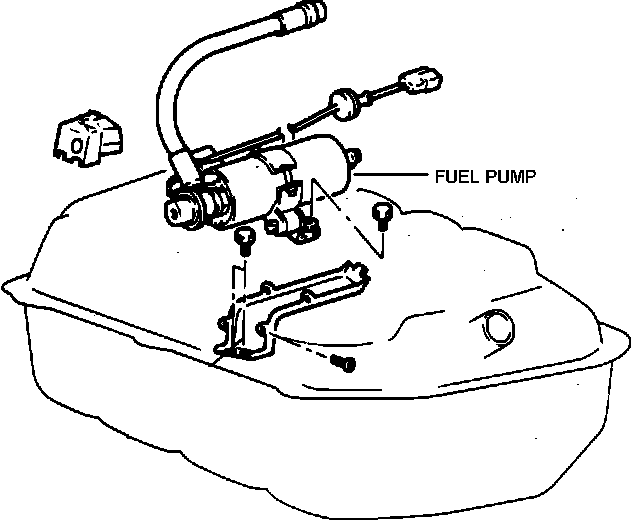

Fuel Pump Mounting And Location:

The fuel pump is located mounted on the fuel tank.

FUEL PUMP DRIVE TERMINAL

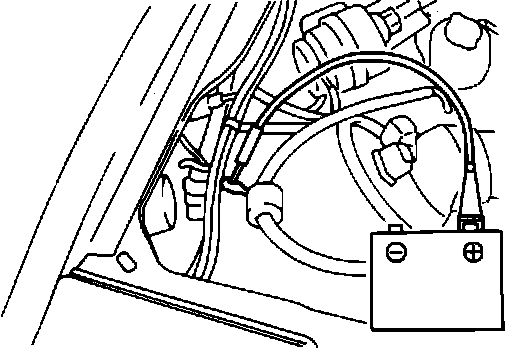

Fuel Pump Operational Test Hook-up:

The fuel pump drive terminal (shown hooked-up) is located on the right side of the engine compartment behind the air cleaner housing.

FUEL PUMP HARNESS CONNECTOR

Fuel Pump Mounting And Location:

The fuel pump harness connector is located on the forward end of the fuel tank.

INJECTORS

Fuel Injector Location:

The injectors are mounted inside the throttle body assembly.

OVERFILL LIMITER (TWO-WAY VALVE)
The overfill limiter is mounted in-line, on the vapor canister, in the RH front corner of the engine compartment.

ROLLOVER (FUEL CHECK) VALVE
The rollover valve is mounted to the RH side of the firewall.

THROTTLE POSITION SENSOR

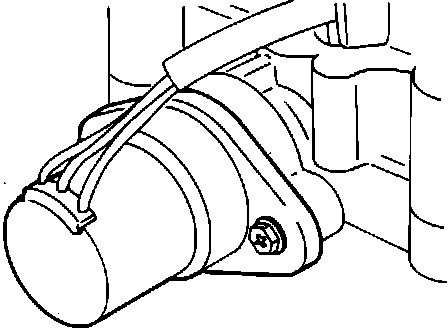

Throttle Position Sensor (TPS) Mounting:

The throttle position sensor is mounted on the throttle body.

WASTEGATE ACTUATOR
The wastegate actuator is located mounted on the turbocharger.

WASTEGATE SOLENOID VALVE

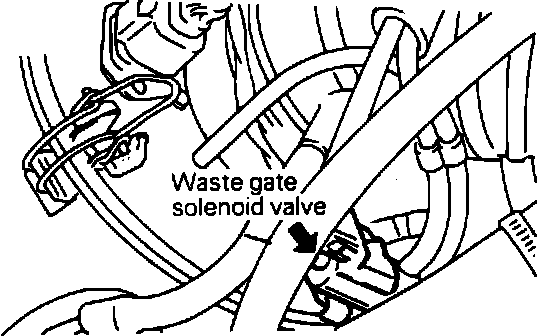

Waste Gate Solenoid Valve Location:

The wastegate solenoid valve is located attached to the air cleaner housing.
