Master Cylinder - Check Valve Elimination

89chrysler05

Models

1988 YDC Bodies


Subject

Elimination Of Check Valves In The Brake Master Cylinder


Index

BRAKES


Date

February 27, 1989


No.

05-01-89

(C05-05)
P-795

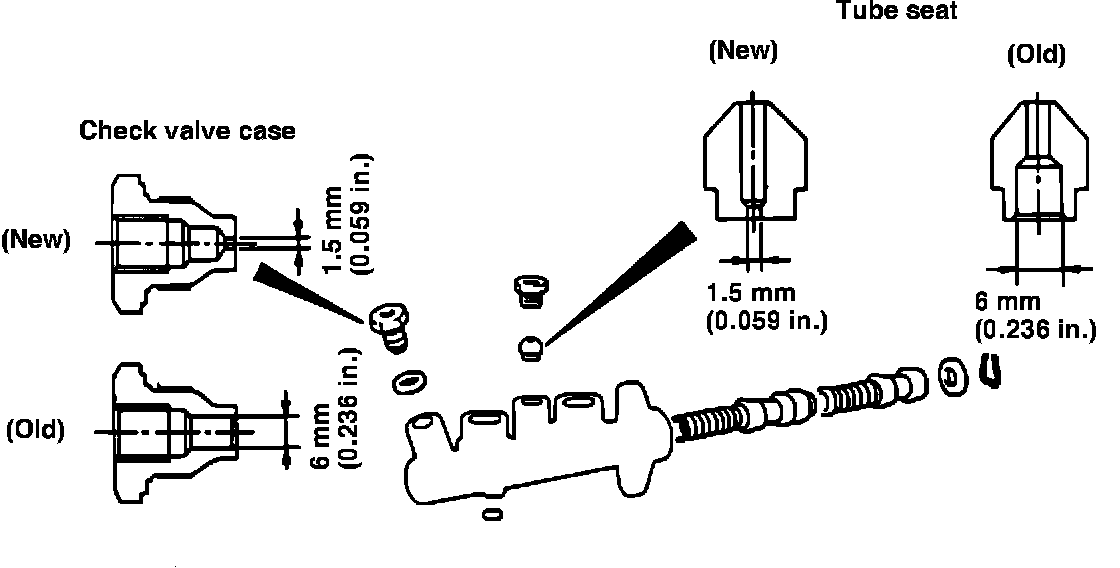

FIGURE 1:

BODY CODE LEGEND

YDC - CONQUEST


The brake master cylinder and the related master cylinder repair kit has been changed to eliminate the check valves (Figure 1). The master cylinders, whether they are equipped with or without check valves, are interchangeable, if it is necessary to replace a master cylinder.


The revised master cylinder repair kit superseded the original kit and may be used for either master cylinder.

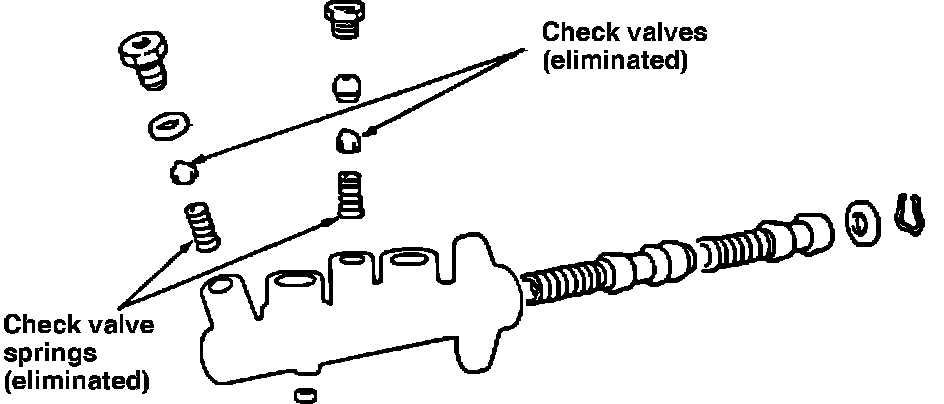

FIGURE 2:

NOTE: WHEN USING THE NEW MASTER CYLINDER REPAIR KIT (WITHOUT CHECK VALVES) IN A MASTER CYLINDER THAT WAS ORIGINALLY EQUIPPED WITH CHECK VALVES, IT WILL BE NECESSARY TO REPLACE THE TUBE SEAT AND CHECK VALVE CASE TO FACILITATE BLEEDING (FIGURE 2). THESE PARTS ARE NOT INCLUDED IN THE REPAIR KIT AND MUST BE ORDERED SEPARATELY.


Refer to the chart on Page 3 for part number detail.

Part name New Old Remarks


(1) Brake master cylinder MB534701 MB316779 Parts (5) and (6) have
assembly (with separate been eliminated and
brake fluid reservoir) parts (3), (4), (7) and
(8) have been changed.


(2) Brake master cylinder MB534780 MB238245 Parts (5) and (6) have
repair kit been eliminated and parts
(3), (4) and (7) have been changed.


(3) Primary piston assembly (MB534704) (MB193450) Piston, piston cup and
return spring have been changed.


(4) Secondary piston assembly (MB534705) (MB193458) Return spring has been changed.


(5) Check valve Eliminated MB003850 Eliminated in new part


(6) Check valve spring Eliminated (MA126194) Same as above.


(7) Tube seat MB366739 MA181940 Brake fluid passage has
been changed in shape.


(8) Check valve case MB534789 MA161537 Same as above.


NOTE: (1) The part is serviced only in kit or assembly if its part number is in parentheses.

(2) Tube seat (7) and check valve case (8) are interchangeable if replaced with check valve (5) and check valve spring (6) eliminated.

(3) When the check valve and check valve spring are eliminated from the master cylinder on the sold vehicle, be sure to replace the tube seat and check valve case with new parts (parts having their fluid passages changed) for ease of air bleeding.
