Rear Axle - Click/Snap/Clunk Noises on Acceleration

89chrysler09

Models

1988-89 YDC/B5 Bodies


Subject

Wheel Bearing Spacer For Noise Correction


Index

REAR AXLE


Date

May 8, 1989


No.

03-02-89

P-1768 (C03-01-9)
BODY CODE LEGEND

YDC/B5 - CONQUEST


SYMPTOM/CONDITION

Click/snap/clunk from the rear axle when engine torque is applied during acceleration or when shifting from forward to reverse.

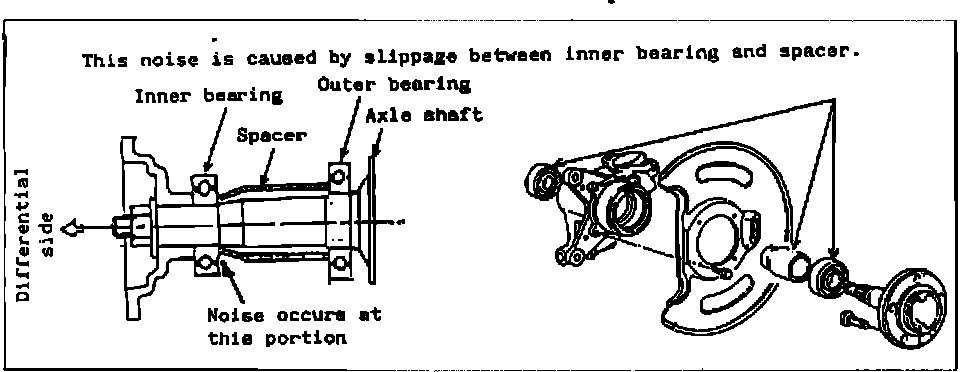

Figure 1:

DIAGNOSIS

Road test the car with several deep throttle accelerations from a standing start. If there is a snap/click/clunk noise coming from the rear axle area, it may be caused by excessive clearance between the rear axle inner bearing and the bearing spacer. See Figure 1.
PARTS REQUIRED


1 Spacer Kit PN MB664032
Consisting of:

1 Lock Nut PN MB092179
2 Washers PN MB664022
1 Spacer PN MB664021


NOTE: THIS PACKAGE IS FOR ONE REAR WHEEL ONLY. IF THE NOISE IS COMING FROM BOTH REAR WHEEL BEARINGS, IT WILL BE NECESSARY TO ORDER TWO SPACER PACKAGES.

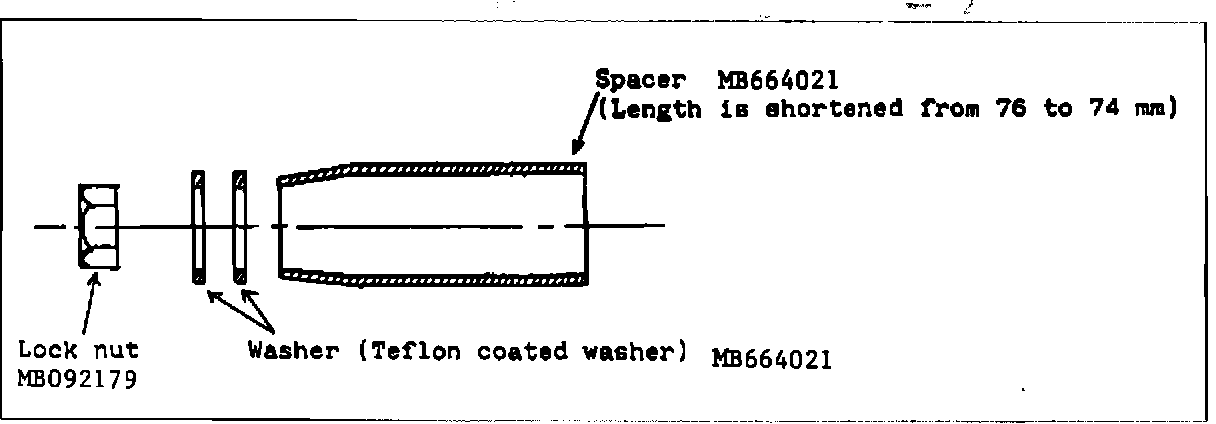

Figure 2:

REPAIR PROCEDURE


This repair consists of the installation of a 2 mm shorter spacer along with two Teflon coated washers. These new washers must be installed between the new spacer and the inner (differential side) rear wheel bearing.

The correct procedure used to change the spacer is listed on Page 3-20 of the 1988 Conquest Engine, Chassis & Body Service Manual and on Page 3-12 of the 1989 Conquest Engine, Chassis & Body Service Manual. Orientation of the new spacer and the Teflon coated washers is illustrated in figure 2.
POLICY: Reimbursable within the provisions of the warranty.


TIME ALLOWANCE:
Labor Operation No. 03-20-01-92/93 . . . . . . . . . . . . 0.6 Hrs.


FAILURE CODE: 68 - Noisy
