Electrical Diagrams

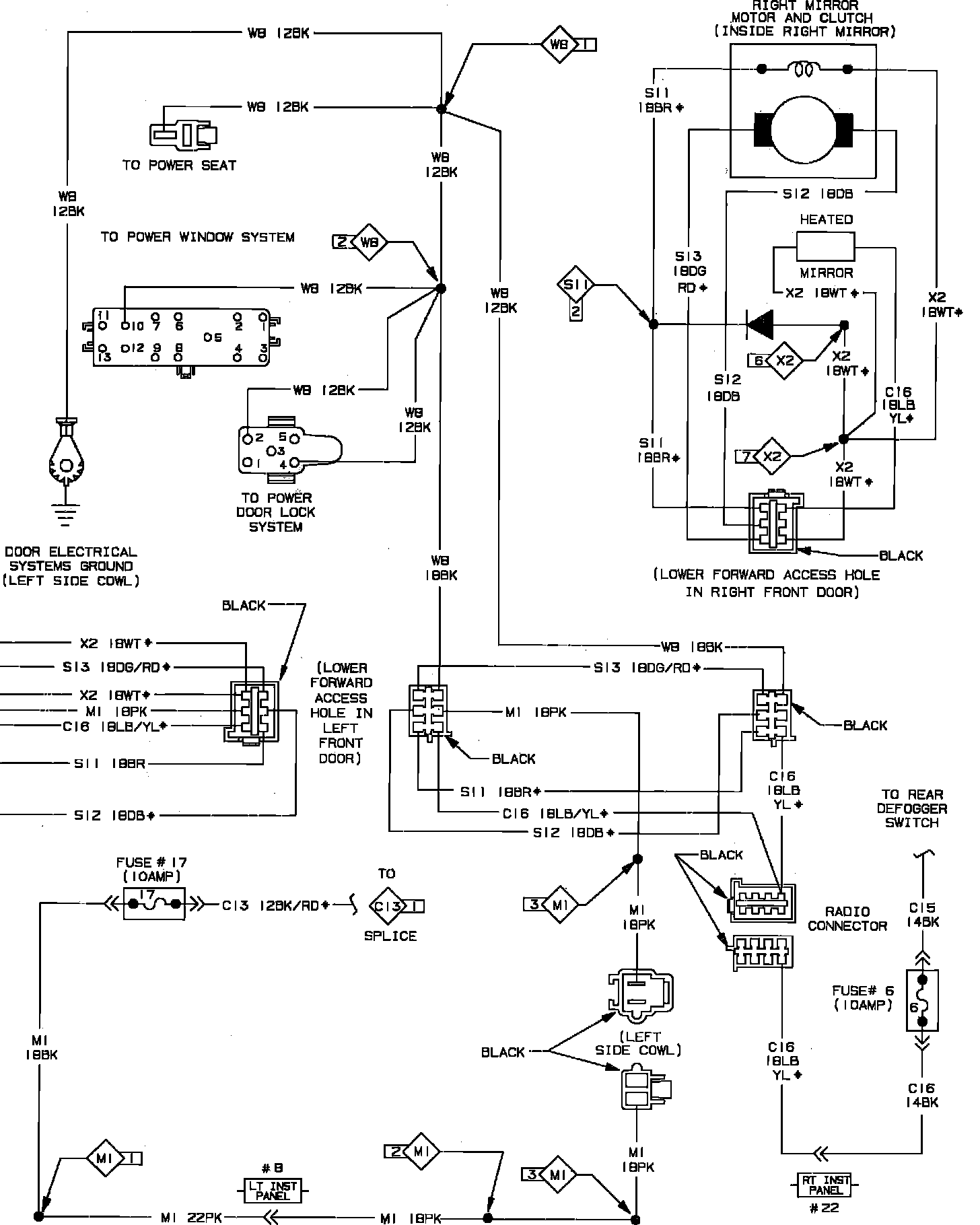

Power Remote Mirrors Wiring Circuit:

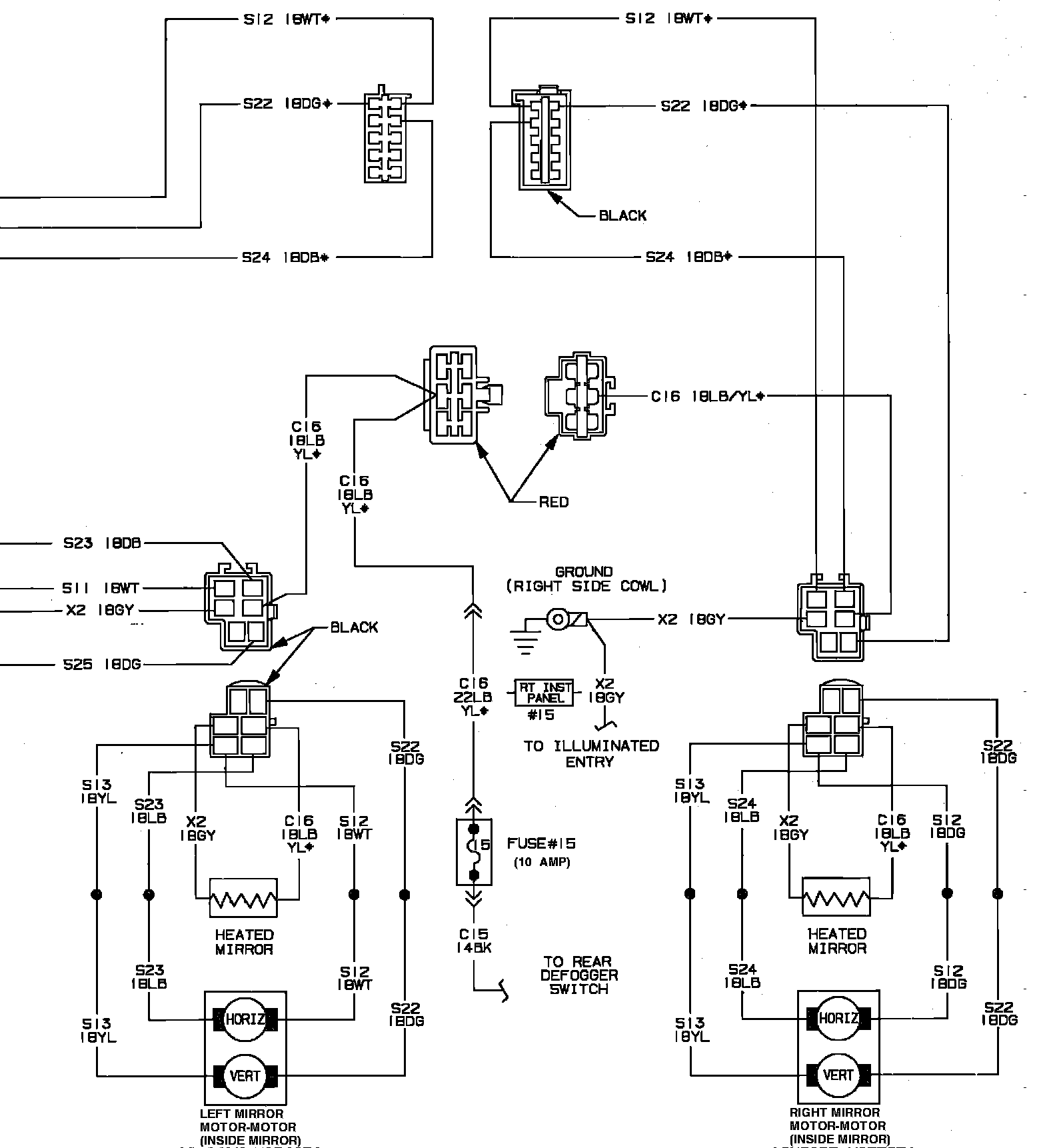

Power Remote Mirrors Wiring Circuit:

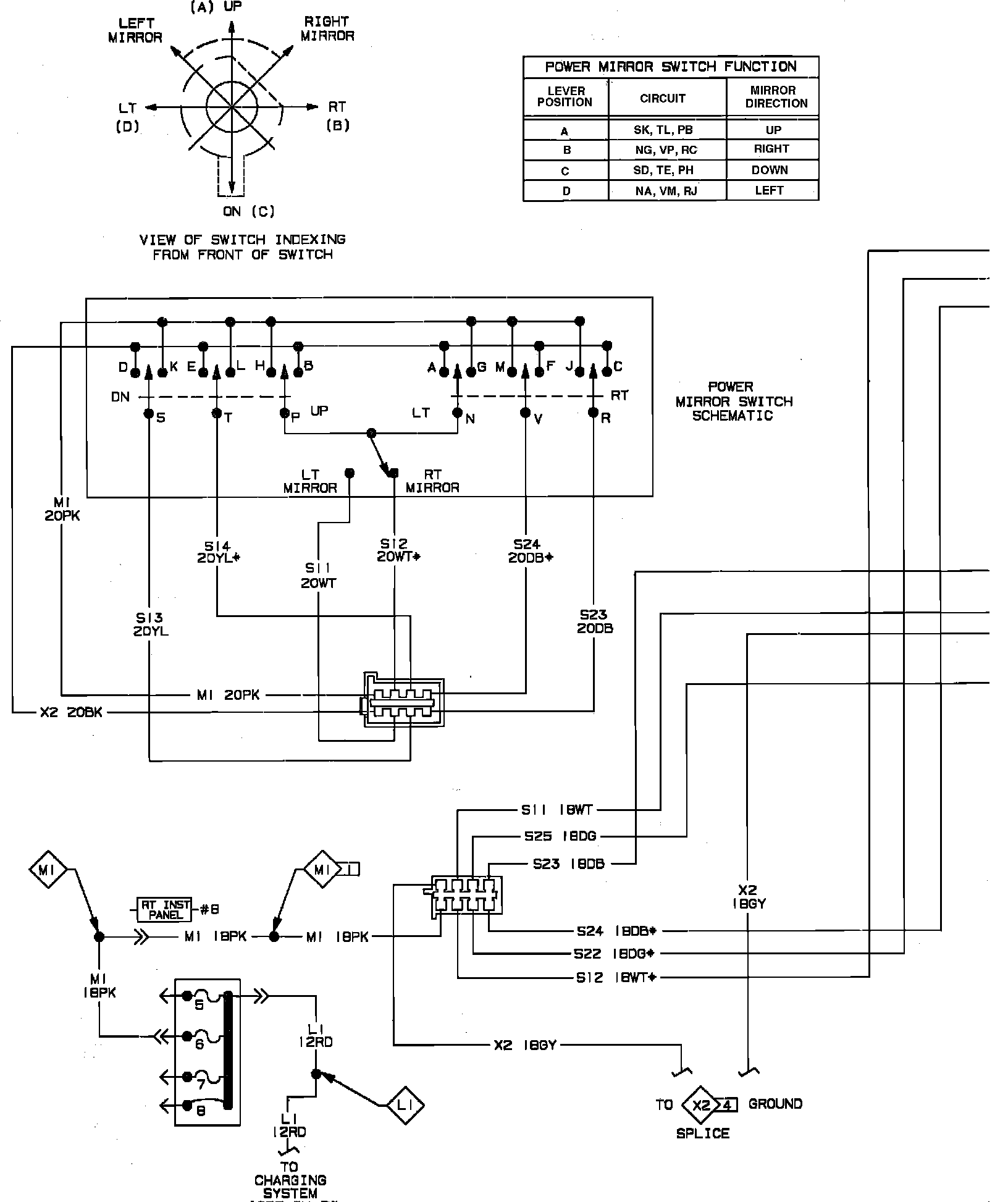

Power Remote Mirrors Wiring Circuit (Part 1 Of 2):

Power Remote Mirrors Wiring Circuit (Part 2 Of 2):

Power Mirrors Wiring Circuit (Part 1 of 2):

Power Mirrors Wiring Circuit (Part 2 of 2):
