Electrical Diagrams

Power Bench Seat System Wiring Circuit:

Power Split Bench Seat System Wiring Circuit:

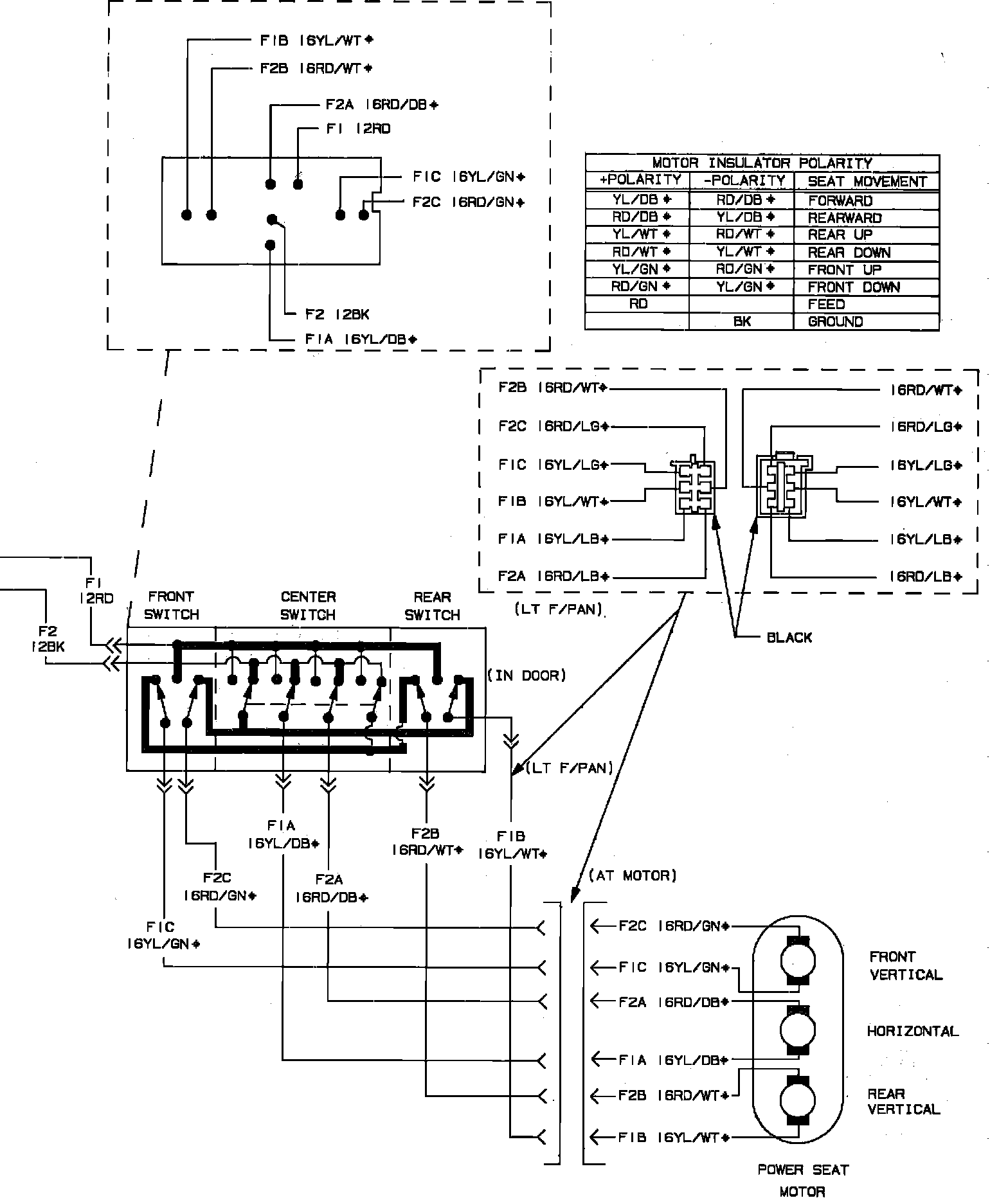

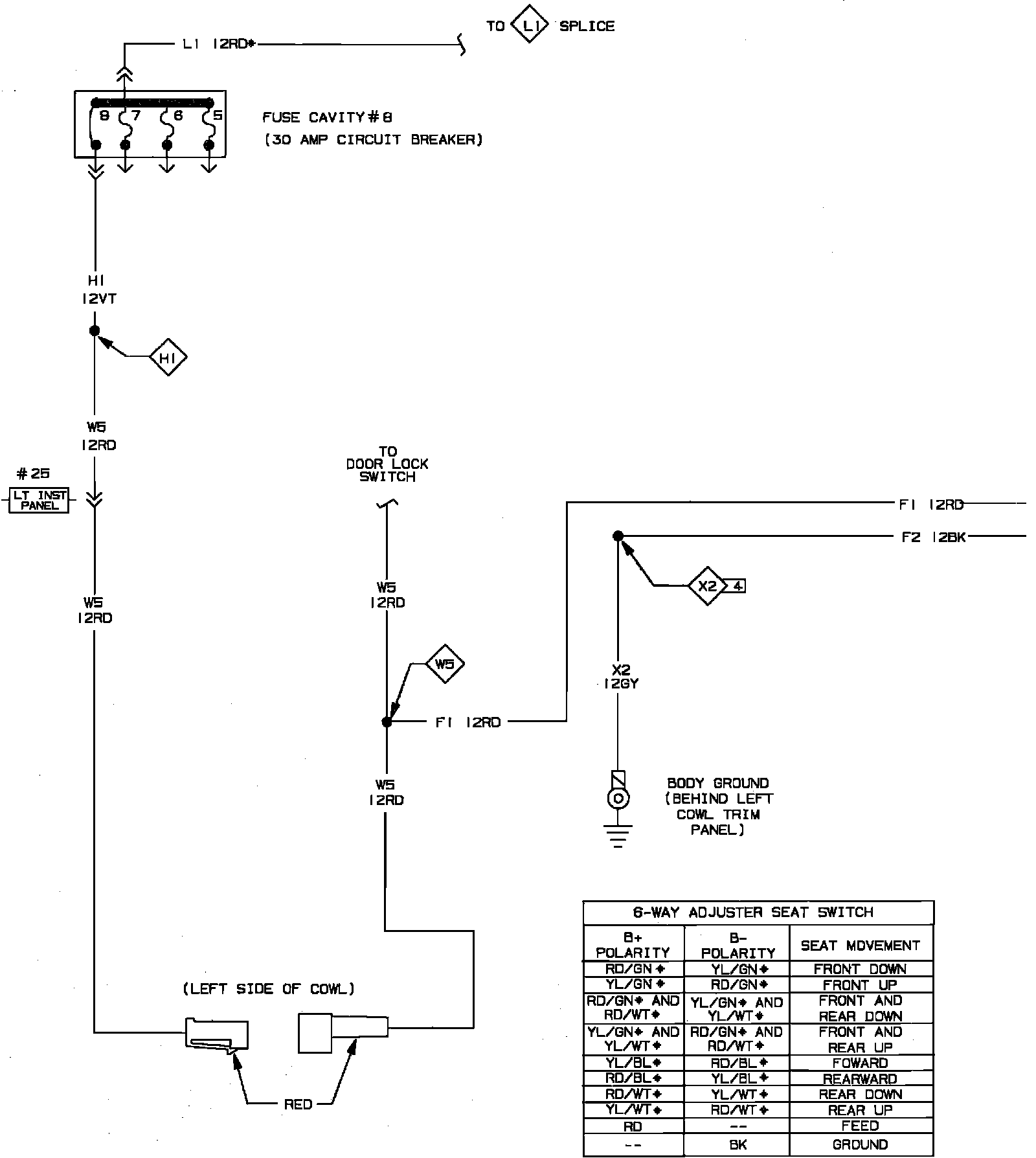

Power Seat Wiring Circuit (Part 1 Of 2):

Power Seat Wiring Circuit (Part 2 Of 2):

Power Seat Wiring Circuit:
