Lebaron Coupe L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

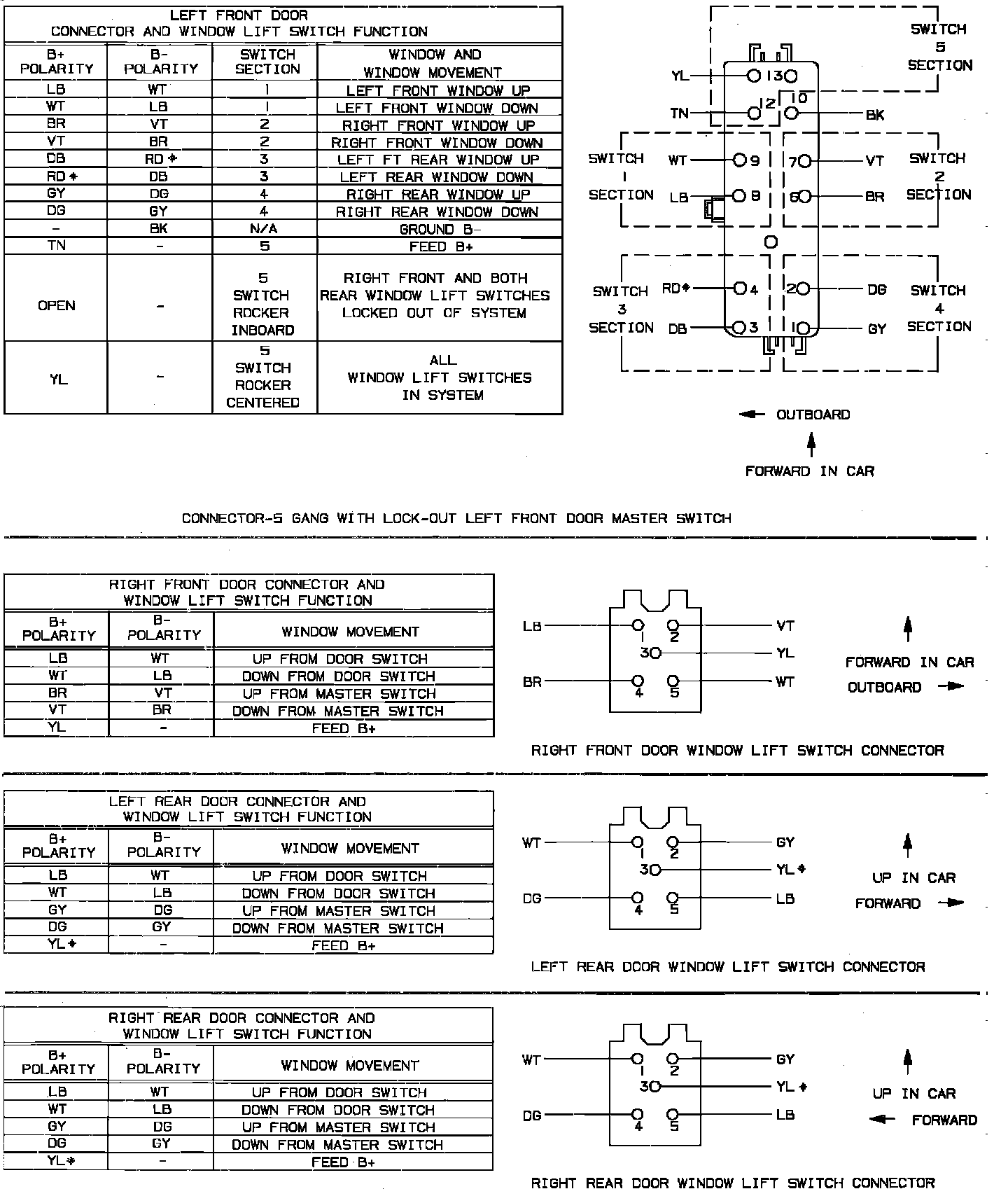

Power Window & Switch Function Connector
Power Window & Switch Function Connector
Power Window & Switch Function Connector:
