Dome Lamp

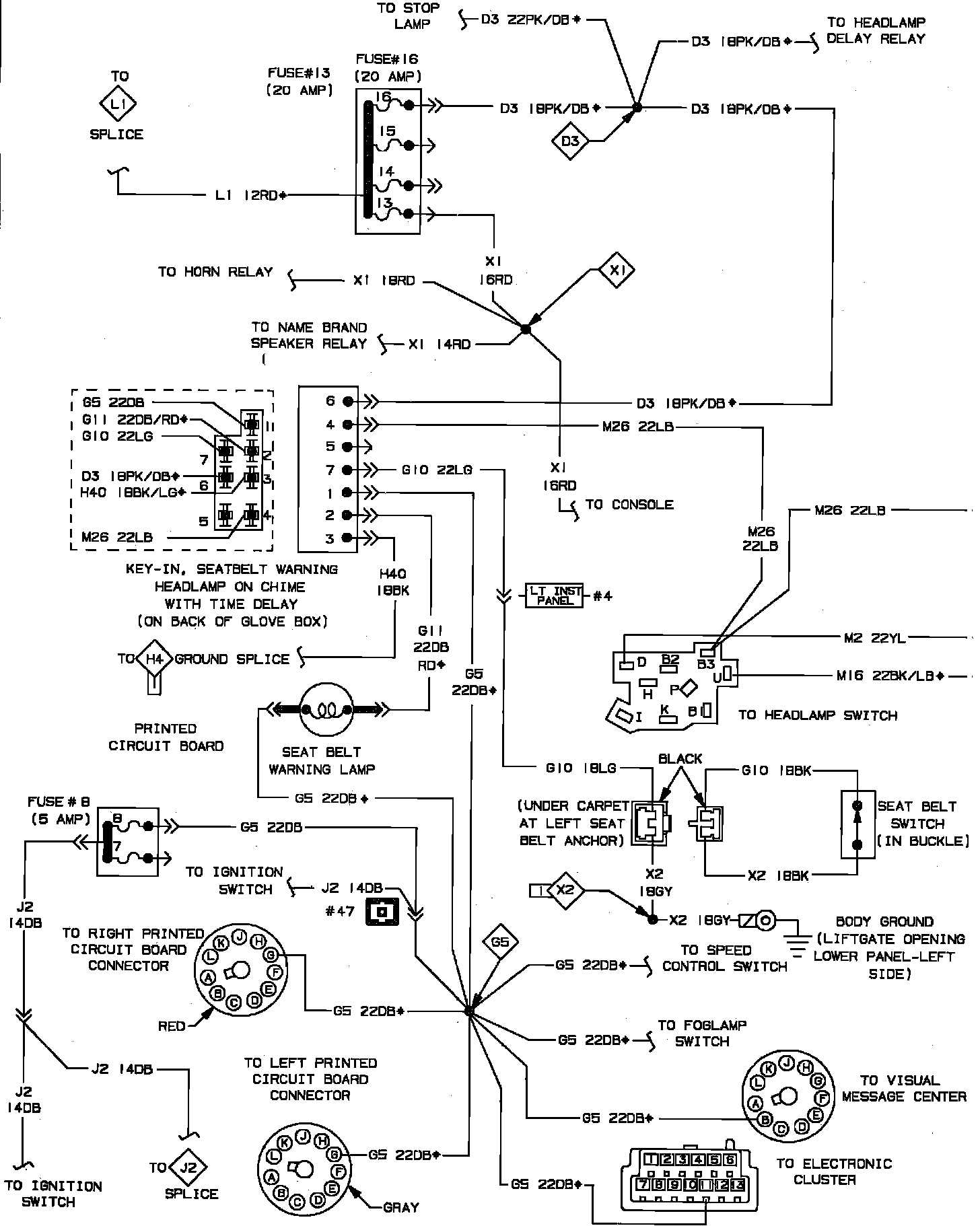

Dome Lamp & Seat Belt Warning Wiring Circuit (Part 1 of 2):

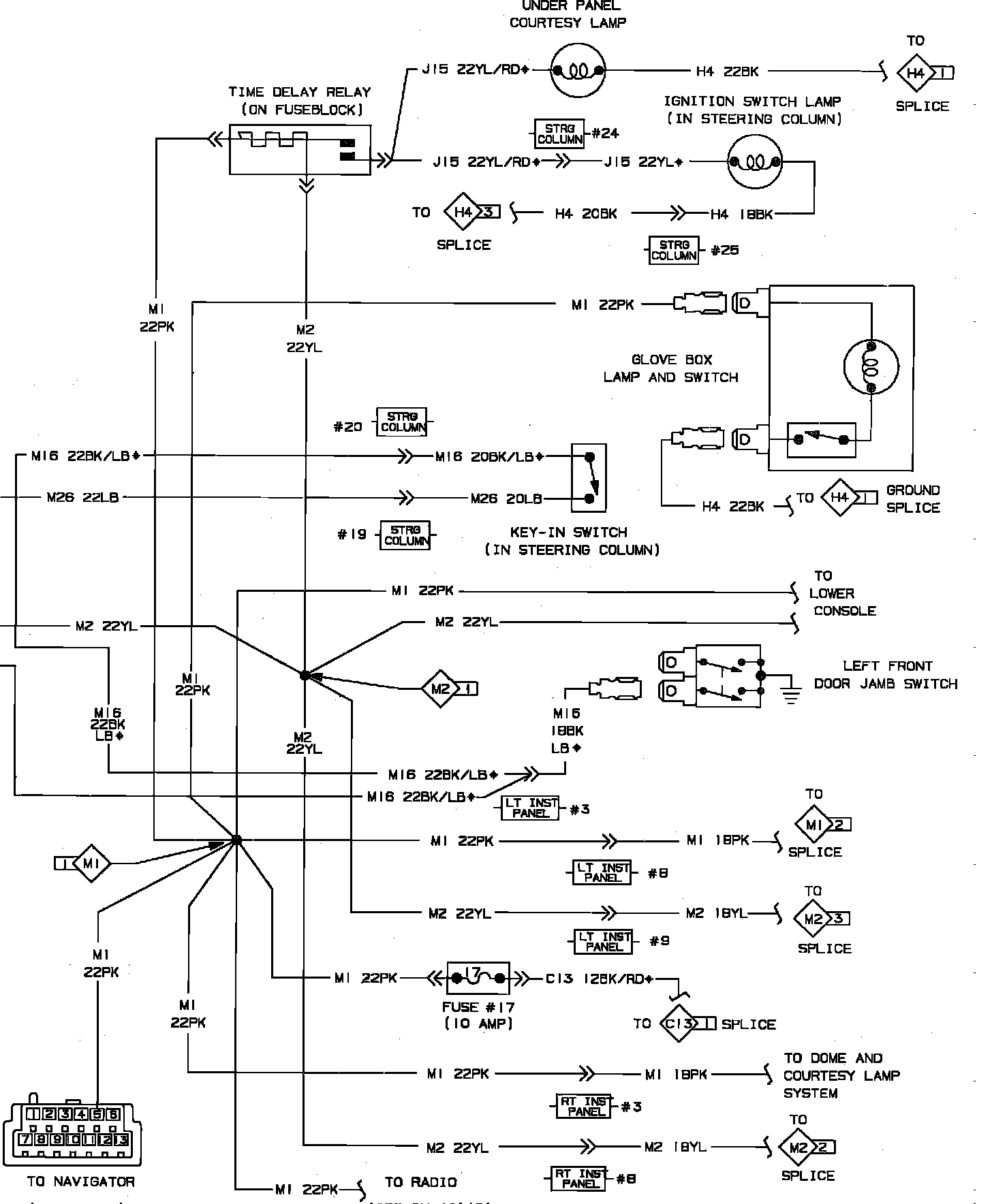

Dome Lamp & Seat Belt Warning Wiring Circuit (Part 2 of 2):
