Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1988
>>
Lebaron Coupe L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Vanity Lamp
Vanity Lamp

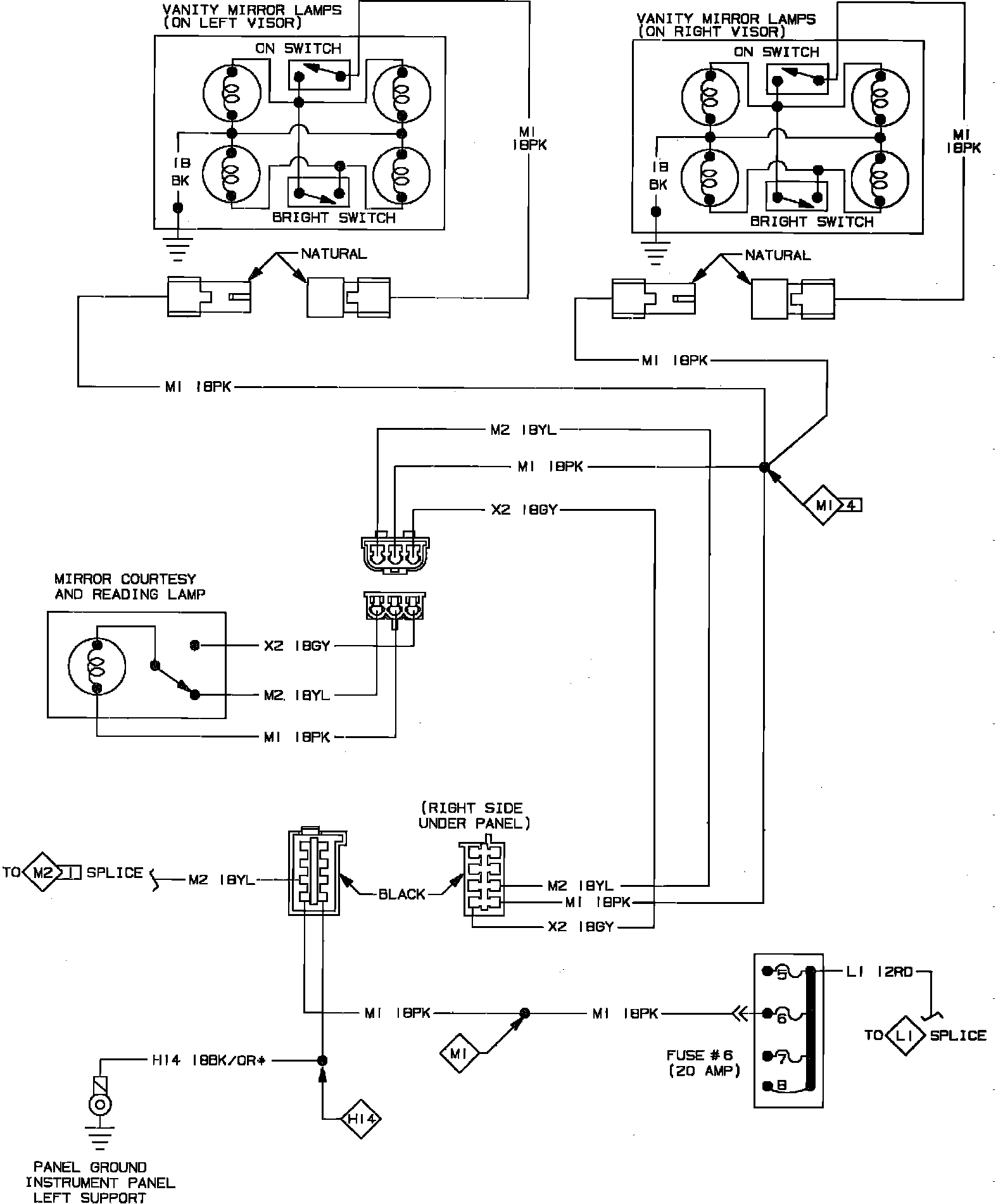

Vanity Mirror Lamps Wiring Circuit. Convertible:
