Stereo Radio System

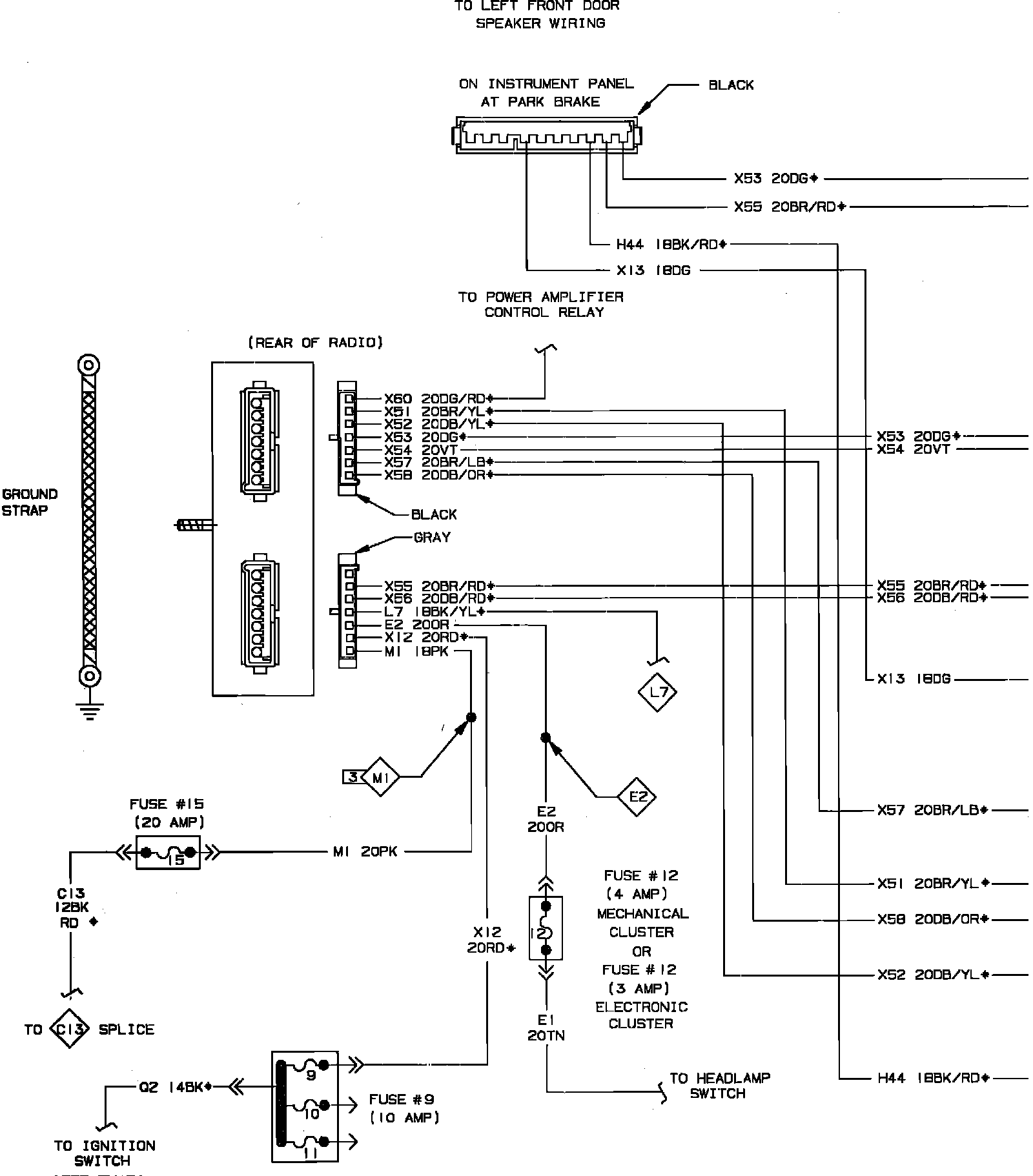

Radio System Wiring Circuit. Stereo Radio:

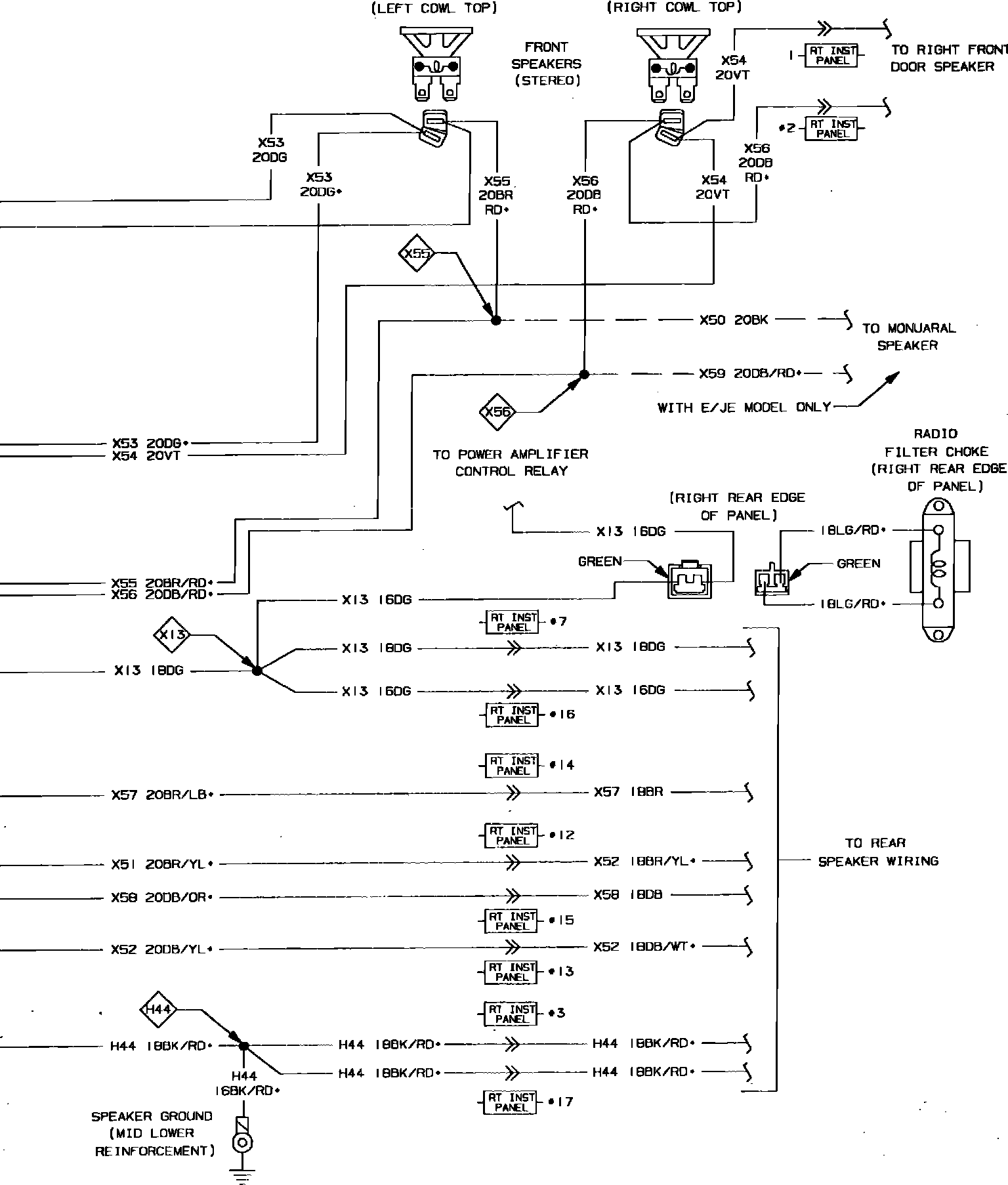

Radio System Wiring Circuit. Stereo Radio:
