Electrical Diagrams

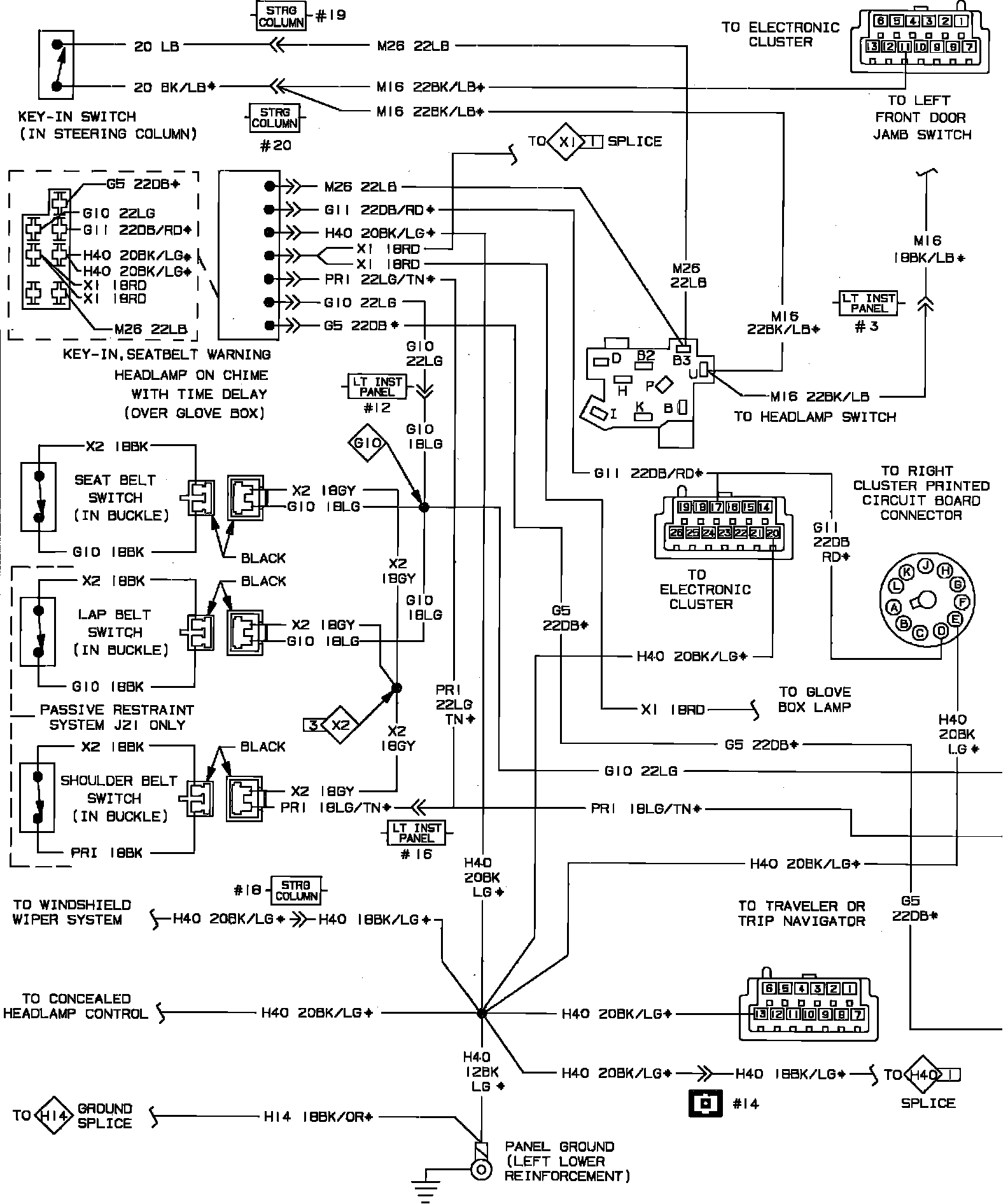

Seat Belt Warning Wiring Circuit (Part 1 Of 2):

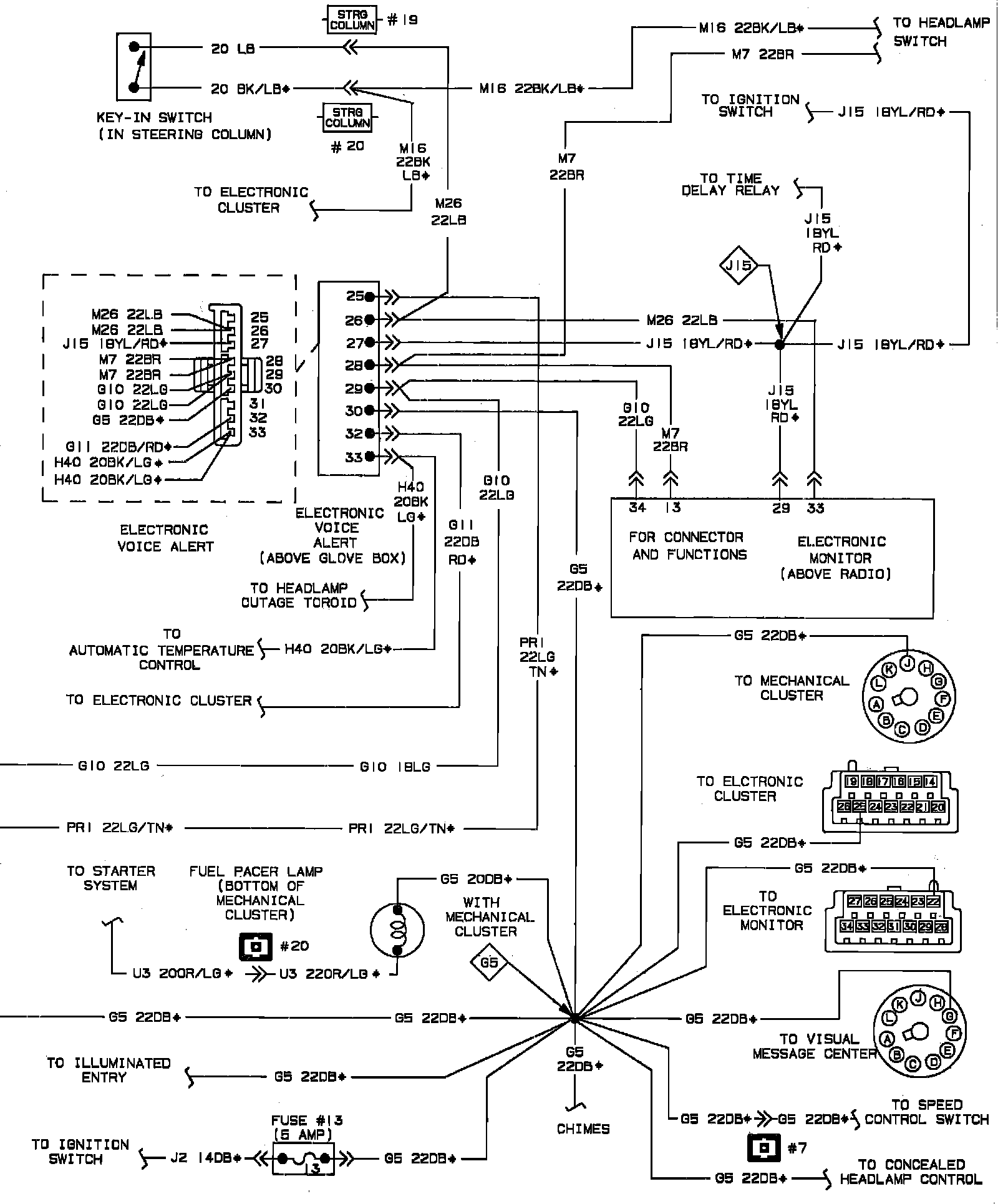

Seat Belt Warning Wiring Circuit (Part 2 Of 2):
