Door Locks
>>
Part 2 of 2
Part 2 of 2

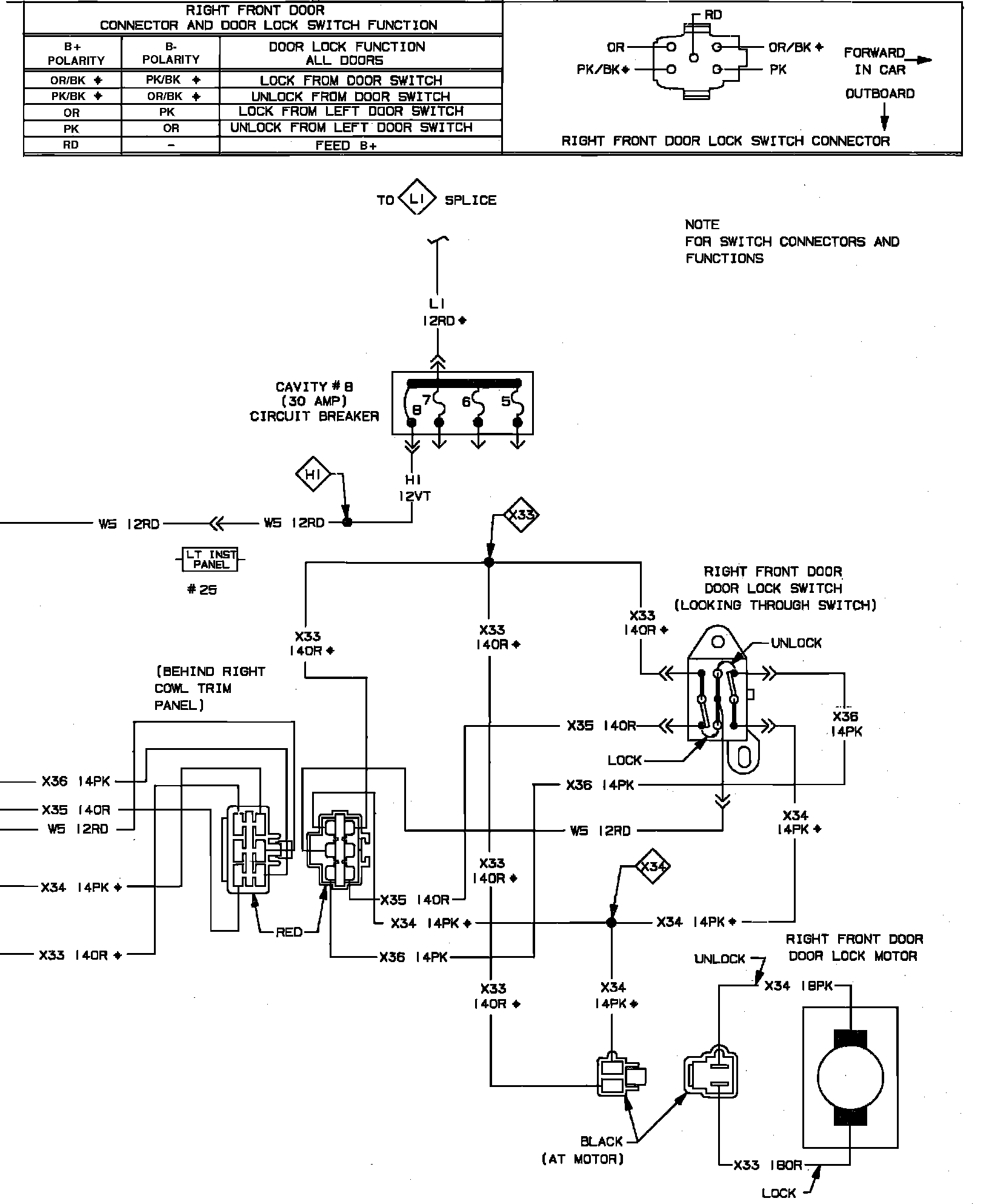

Power Door Lock Wiring Circuit (Part 2 Of 2):
Power Door Lock Wiring System (Part 2 of 2):
