Electrical Diagrams

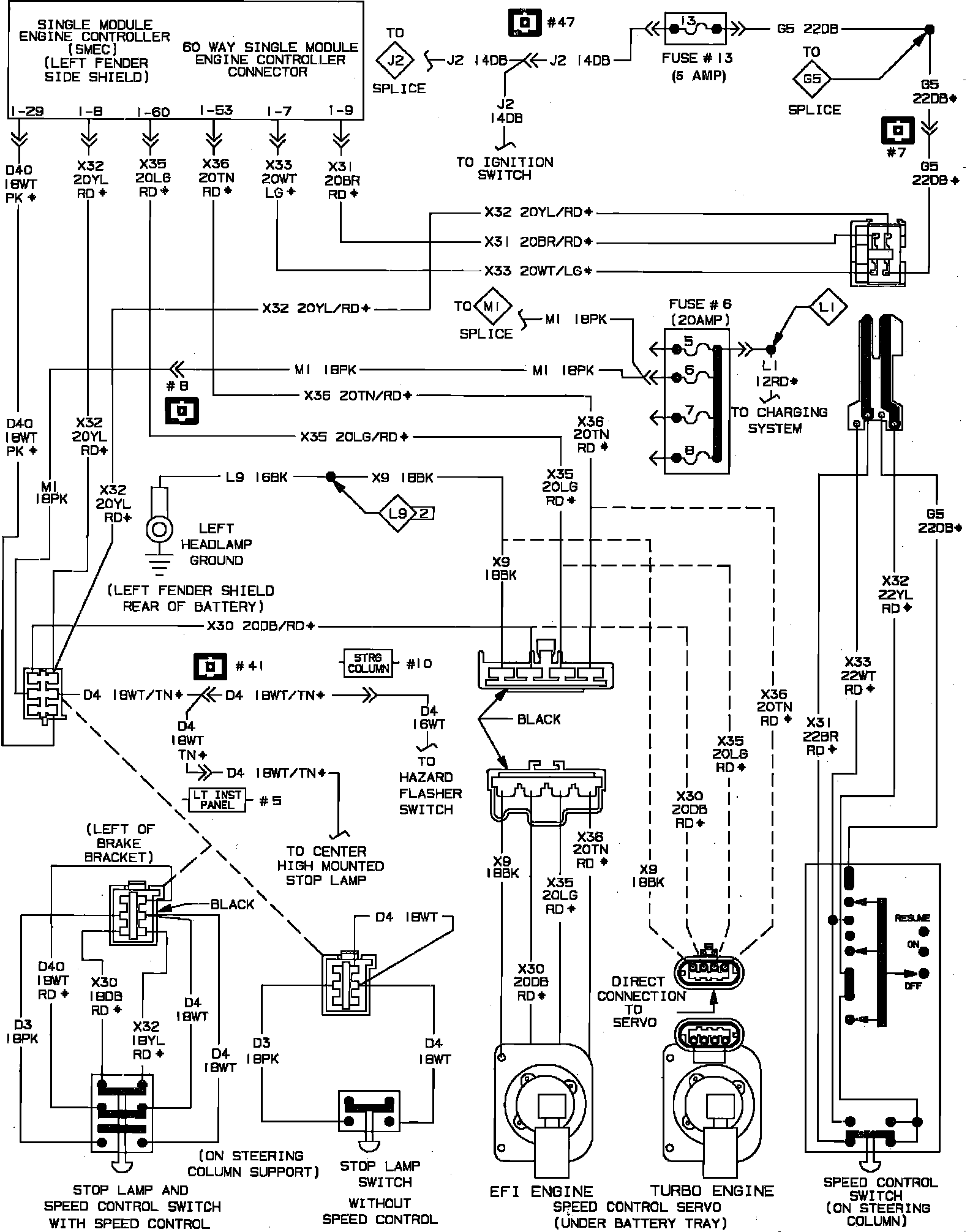

Speed Control System Wiring Circuit:



Speed Control Wiring Circuit:



Speed Control Wiring Circuit:
