Driver/Vehicle Information Display
Driver/Vehicle Information Display

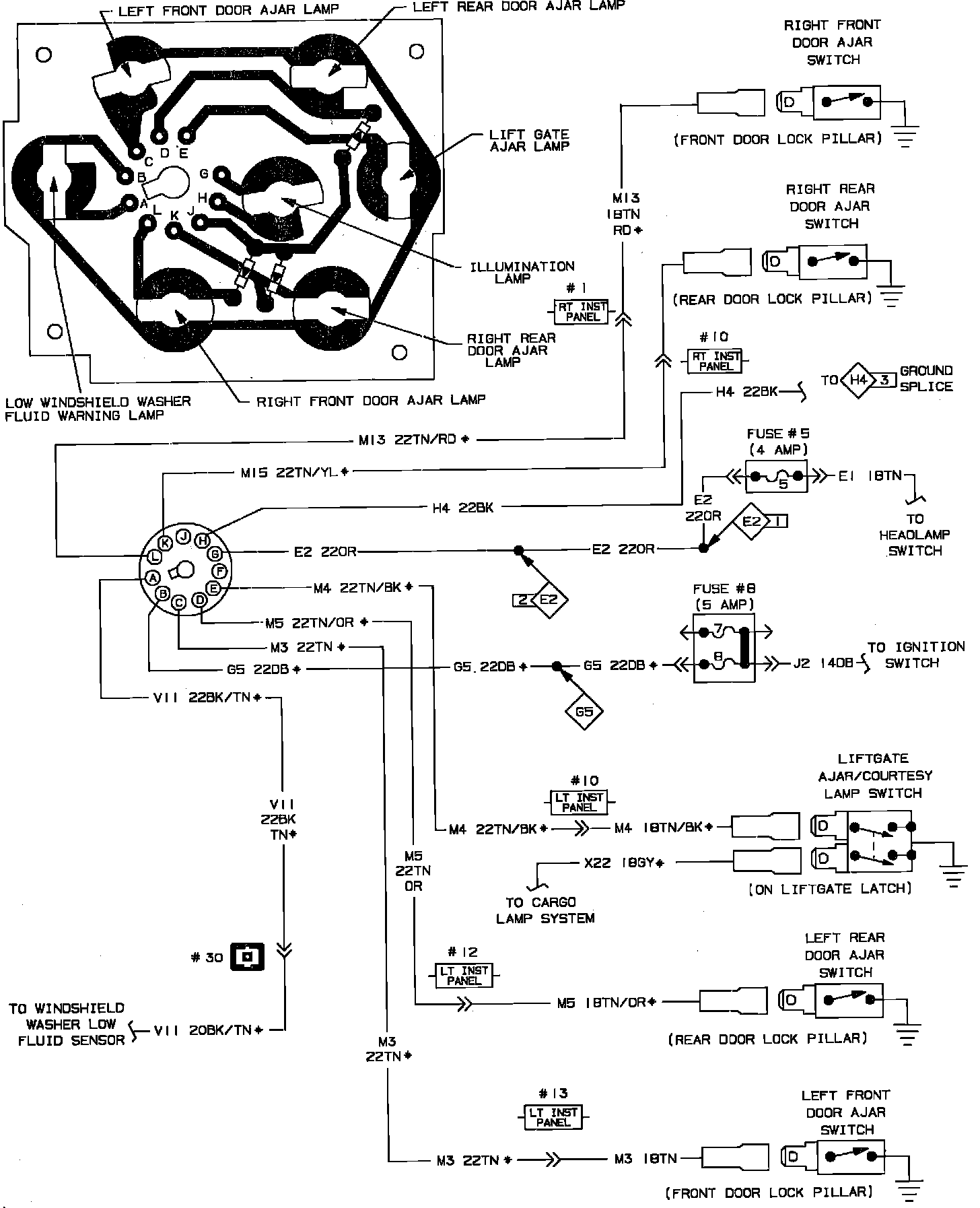

Message Center Wiring Circuit:
