Power Window Motor: Locations

Two Door Model

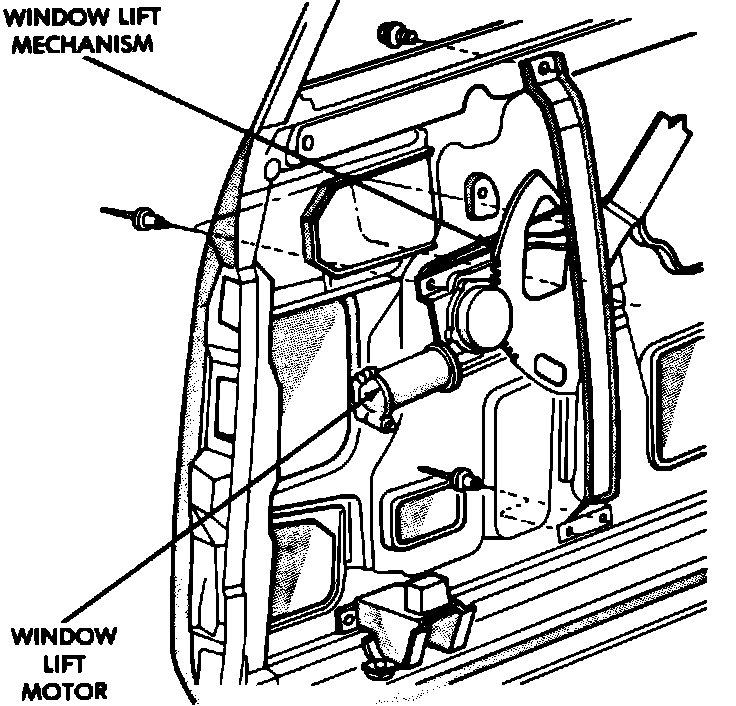

Power Window Motor Location:

The window regulator is of a conventional sector gear design. The power window motor is attached to the window regulator. The window motor/regulator assembly is attached to the inner door panel of each door. Two door models that are equipped with rear power windows have a separate window motor/regulator assembly in the rear quarter panels.

Four Door Model

Power Window Motor Location:

Power Window Components:

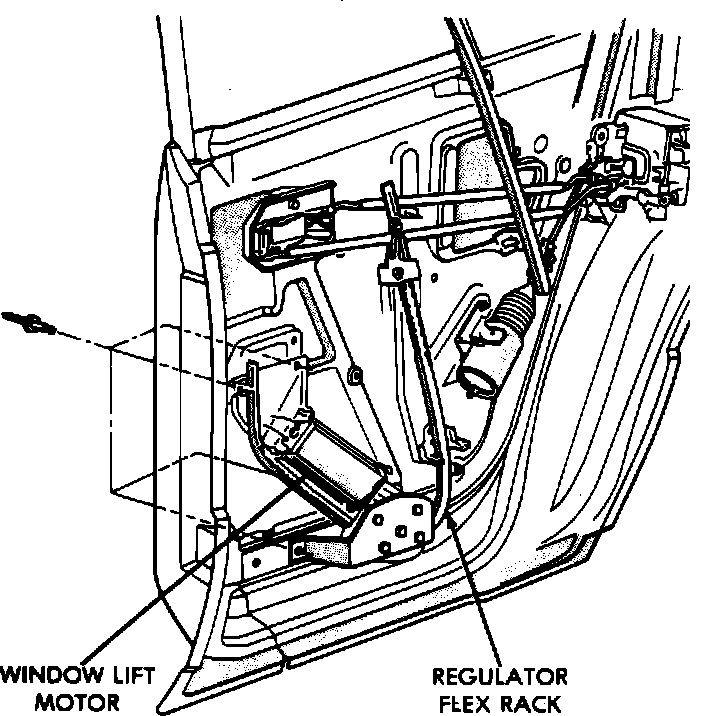

The power window motor is attached to the window regulator. The front window regulator is a conventional sector gear design. The rear window regulator is a flex drive design. The window motor/regulator assembly is attached to the inner door panel of each door.
