Without Electronic Monitor

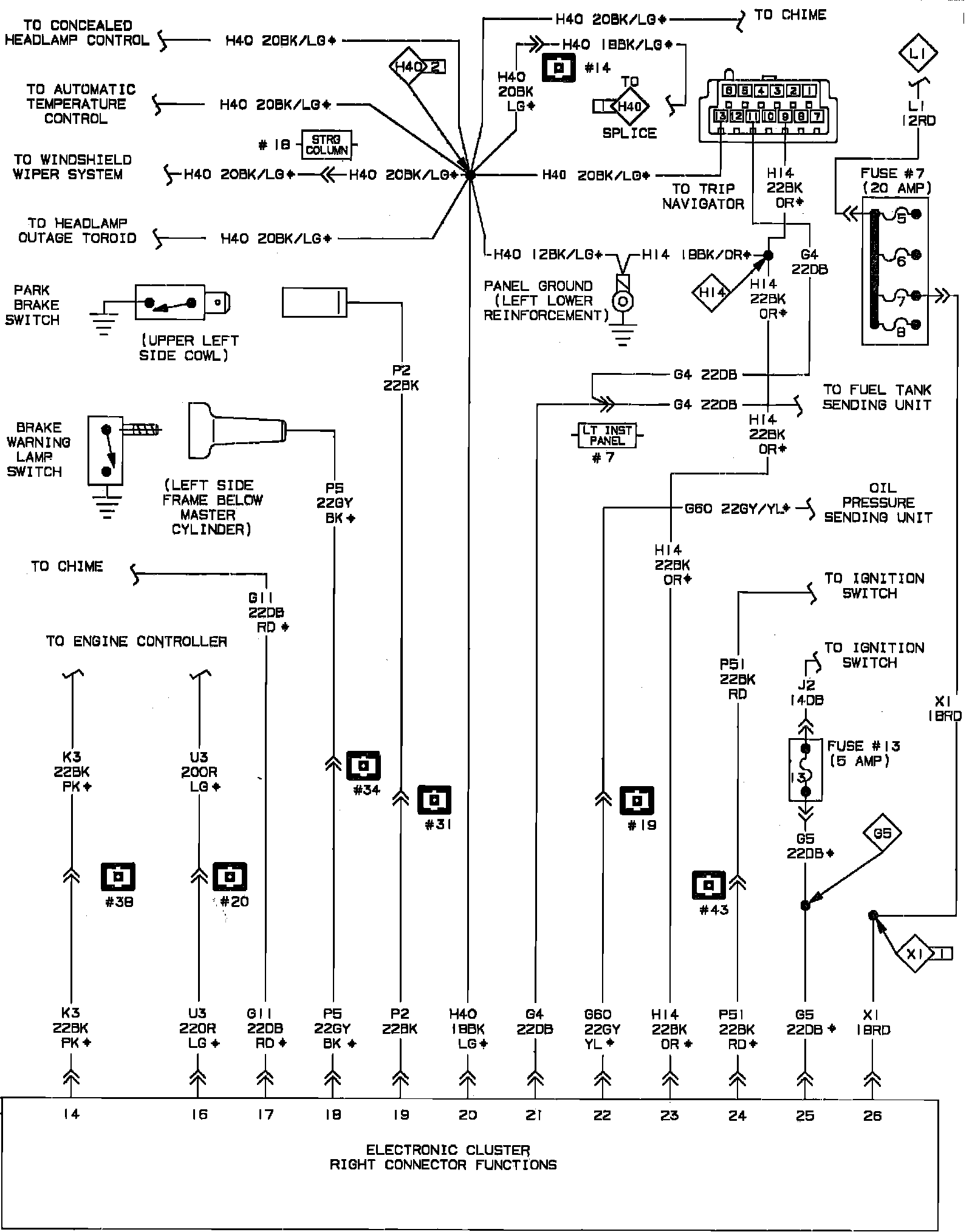

Electronic Cluster, Less Electronic Monitor (Part 1 Of 2):

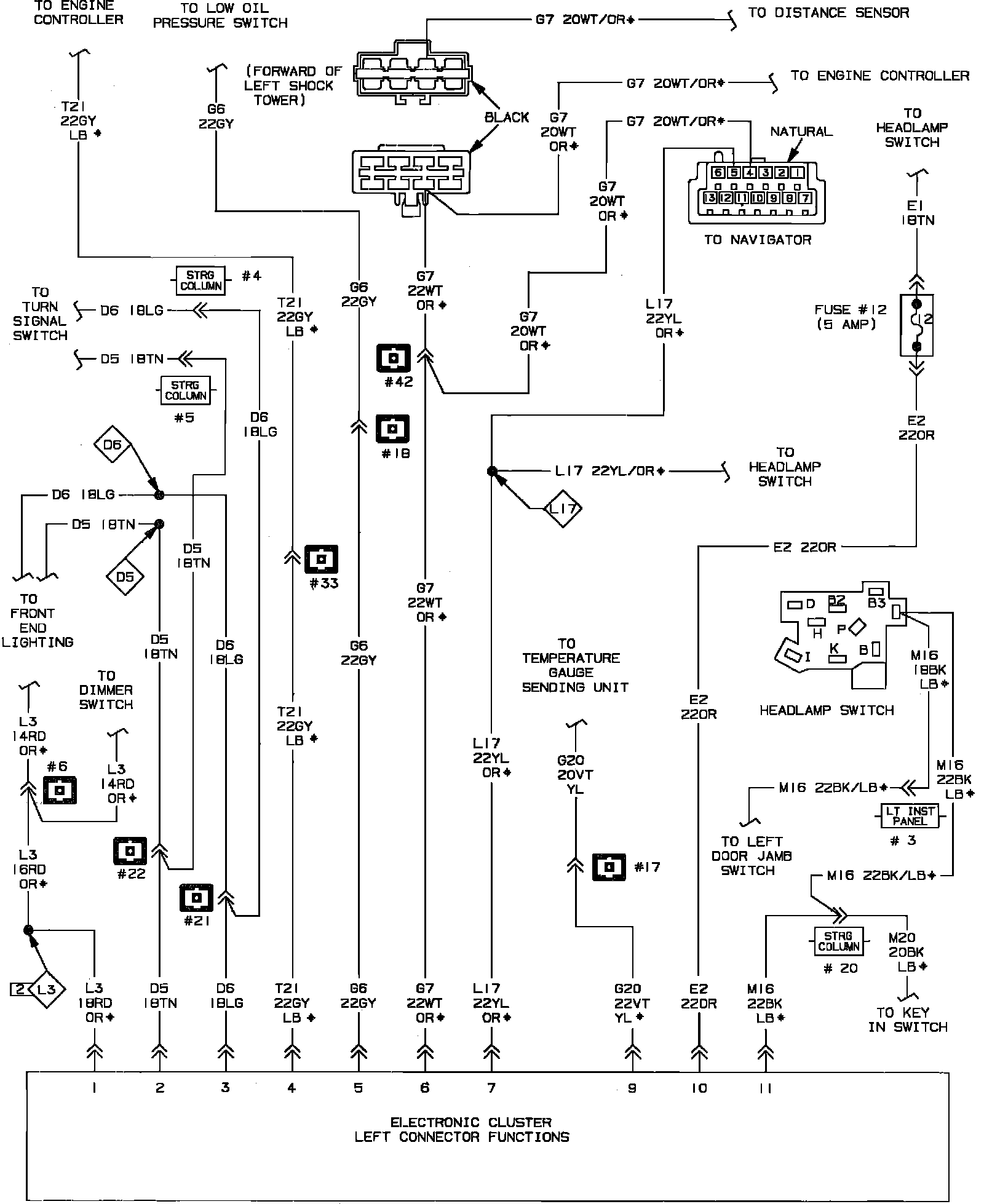

Electronic Cluster, Less Electronic Monitor (Part 2 Of 2):
