Bulkhead Connector
Bulkhead Connector
Bulkhead Connector:
Bulkhead Connector:

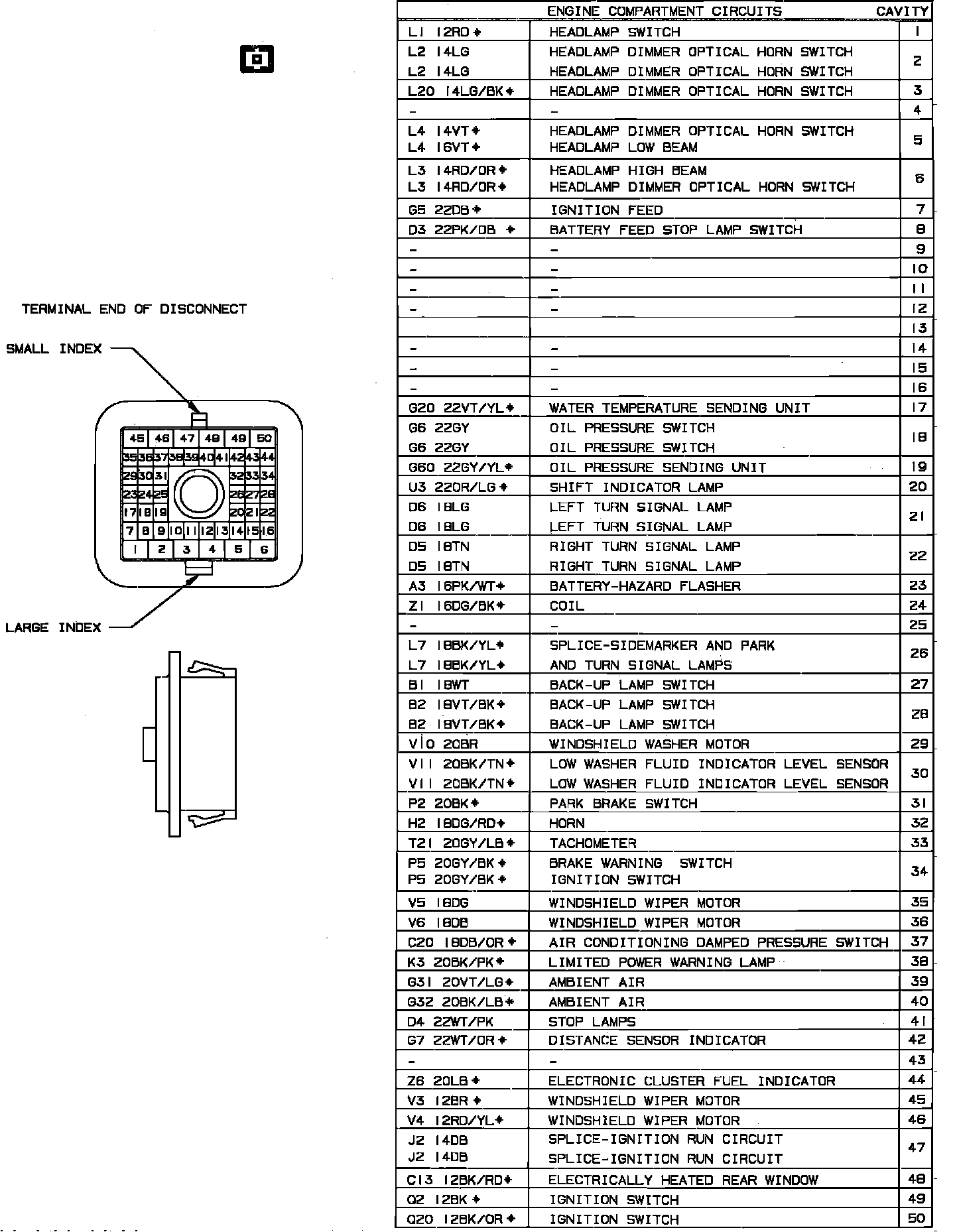

Bulkhead Connector (Part 1 Of 2):
Bulkhead Connector (Part 2 Of 2):
Bulkhead Connector (Part 1 of 2):
Bulkhead Connector (Part 2 of 2):
