Electrical Diagrams

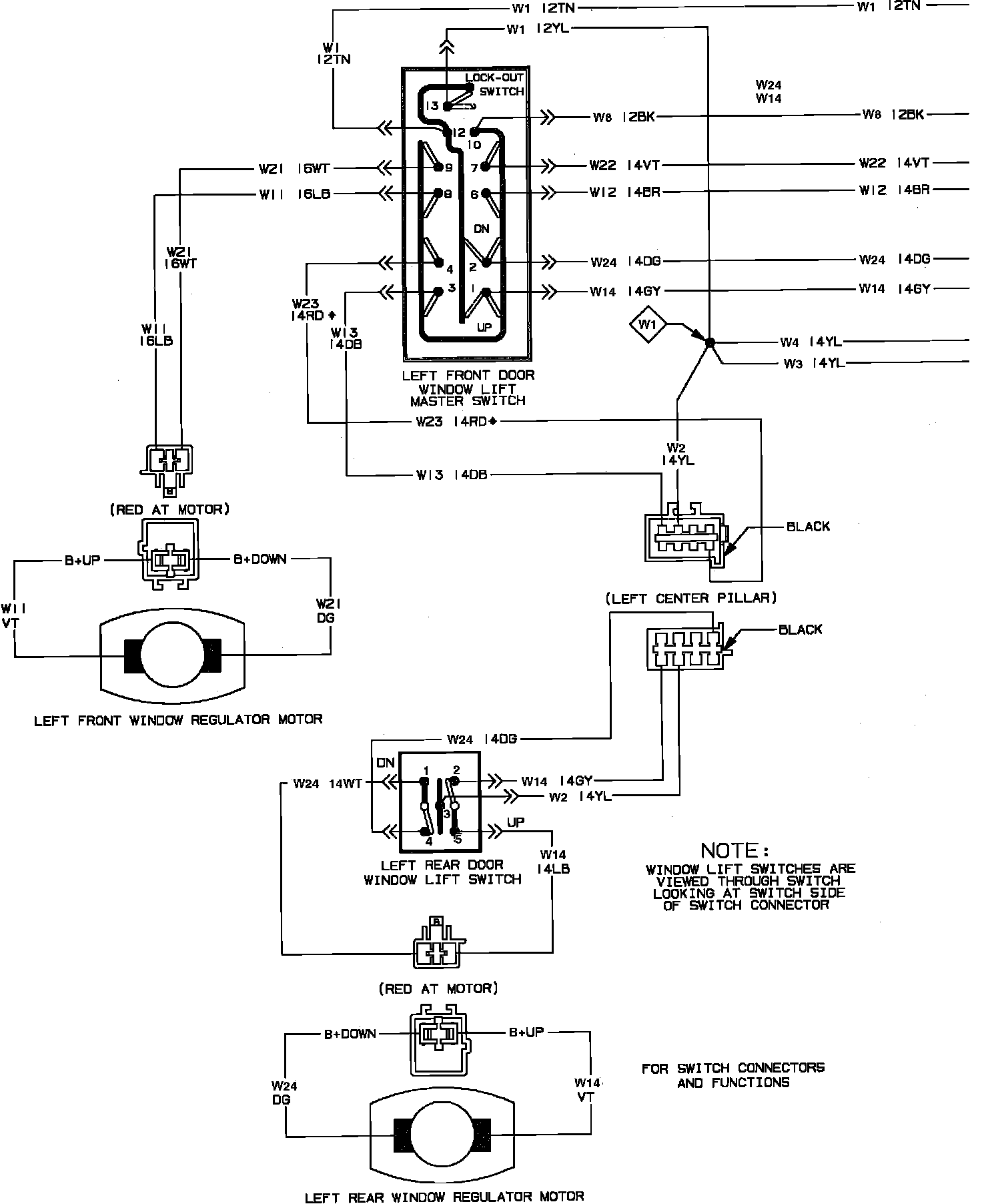

Power Window System Wiring Circuit:

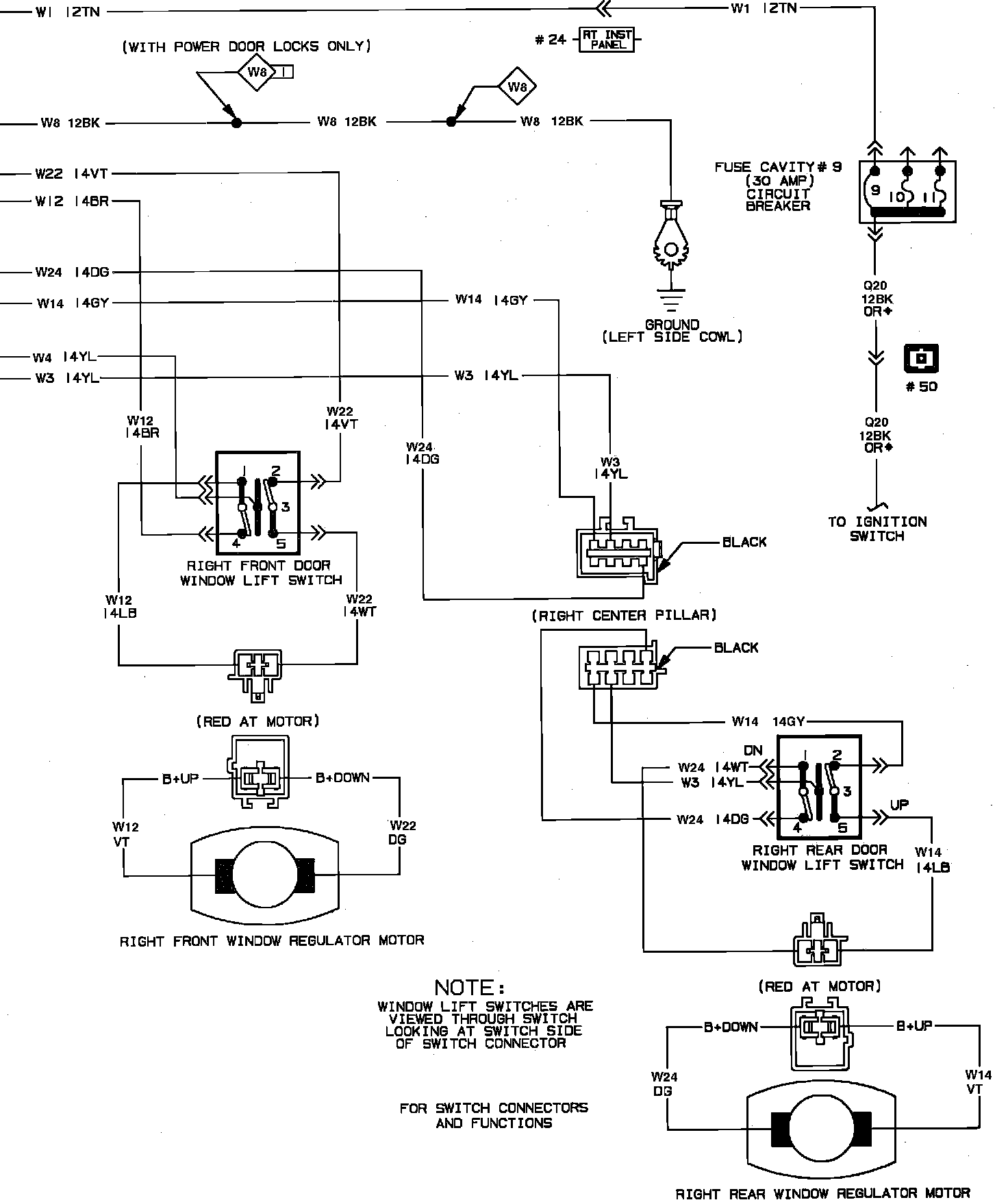

Power Window System Wiring Circuit:



Power Windows Wiring Circuit:



Power Windows Wiring Circuit:
